H8110M HDMI WIFI BATTERY h 264 encoder hd encoders
H8110M HDMI WIFI BATTERY h 264 encoder hd encoders
H8110M HDMI WIFI BATTERY h 264 encoder hd encoders
H8110M HDMI WIFI BATTERY h 264 encoder hd encoders

H8110M HDMI WIFI BATTERY h 264 encoder hd encoders

Want create site? Find Free WordPress Themes and plugins.                                                     P

Protocol : HTTP, RTSP, RTP, TCP, RTMP, RTMPS, HLS, UDP multicast, unicast

Coding standard : H.265 / H.264

Encoded size : Up to 1920*1080 60FPS

Video bit rate : 5-60 fps

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES





Product Description

1-channel HD HDMI input, 1-channel audio input.

Dual streams output.H.264 format, Audio: MP3, AAC, G.711 format.

Configuration could be freely adjusted according to the need.

Support HTTP / RTSP / RTP/ TCP / RTMP / RTMPS / FLV / UDP / ONVIF / HLS protocols.

Red indicator: power. Yellow: Streaming status. Green: Network



  • Support resolution 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p /640*480i (customize)
  • Support HDMI input,
  • Supports WINDOWS and LINUX etc
  • Support multiple devices display on a computer at the same time
  • Support RTSP/RTP/RTMP/HTTP/UDP/ONVIF/HLS unicast and multicast protocol (RTMP support adding users and changing passwords),
  • Support the main, secondary and other multi protocol and multi stream function,
  • Encoding level: 1, 2, 3, 4 and 5 (the higher the level ,the larger of the code flow fluctuation ratio )
  • Coding Standards BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE, H.265:audio MP3, AAC, sampling rate: 32000,44100, 48000etc., encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K
  • Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
  • Video packaging: A mode: FFMPEG, B mode: VLC
  • Transmission: TCP, UDP, 1000M (RJ45 Ethernet port duplex)
  • Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)
  • Support OSD in Chinese/ English, support OSD rolling, images superimposing, support adding LOGO ,Characters and symbols; Adjustable coordinates: 1920×1080; The font size resolution: 8 to 72.
  • Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance
  • Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
  • Support build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individually
  • Support no video signal coding; Complete the setting effect immediately, don’t need to restart
  • Support one-key recovery of the default configuration
  • Support set-top box decoder
  • The low power consumption design
  • Battery power, can work 3 to 4 hours



Specification

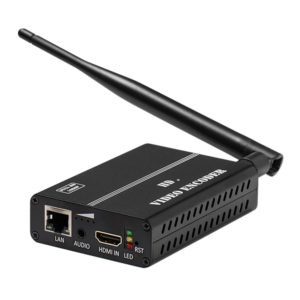

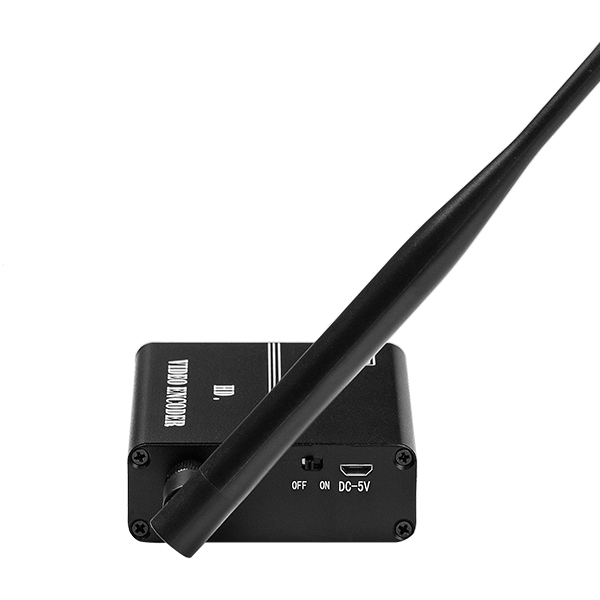

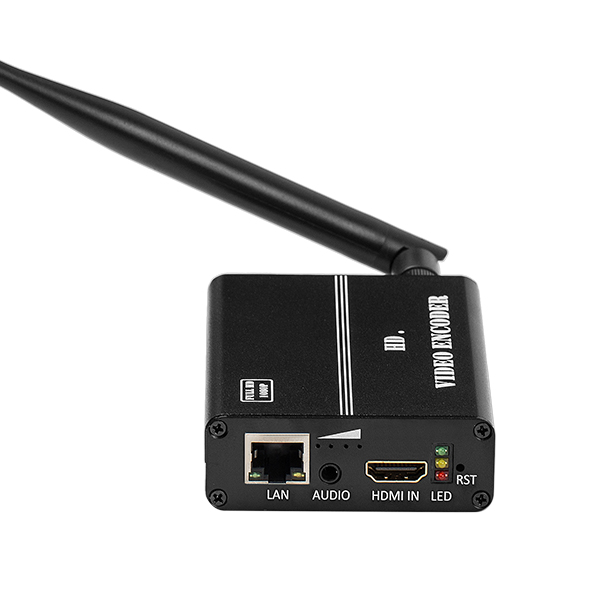

Product model H8110M Lithium WIFI HDMI HD encoder
Input 1Channel HDMI input, 1 Channel line in audio
Output 1 channel IP signal output
Video Input resolution Up to 1920x1080p 60FPS, standard HDMI resolution
Coding standard H.264
Coding level     H.264 BASELINE PROFILE



H.264 MAIN PROFILE

H.264 HIGH PROFILE





Encoded size

640*360~1920*1080
Video bit rate Rate control :CBR/VBR 16KBIT/S~12MBIT/S
Video frame rate 5- 60 fps
OSD Text, Image
Audio Input selection 1 channel embedded audio hdmi, 1 channel 3.5MM independent audio support audio gain
Audio coding AAC/MP3/G.711
Audio bit rate 64Kb/s~384Kb/s
Sampling rate 32000、44100 ,48000etc
IP



output

1 RJ 100M / 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol
System Network protocol HTTP, RTSP, RTMP, ONVIF, HLS, UDP multicast, unicast
Configuration management User interface, remote upgrade, Andriod APP, multi-one management platform
The common use Power supply 12V~2A
power consumption 5W
Size 100mm * 70mm * 25mm(length*width*height)
Operating temperature -20℃+ 60℃
Working humidity <90%,Non-condensing
Weight 0.18KG
Our company reserves the right to adjust the product parameters, if you have any questions please contact us to check
