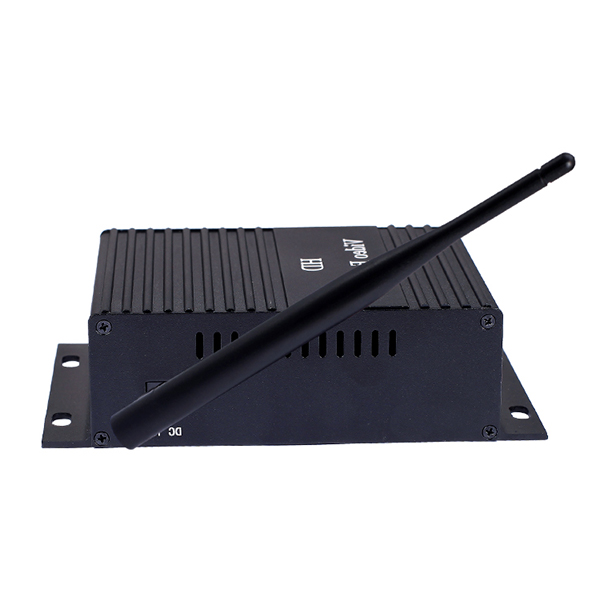

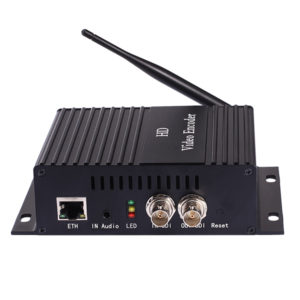

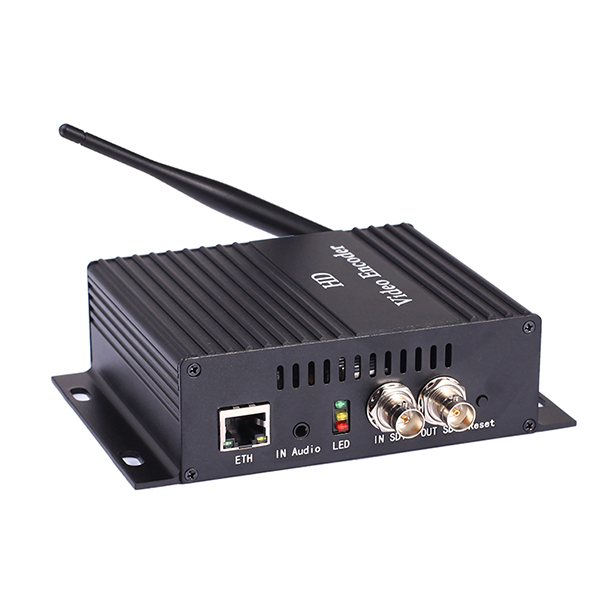

H3610W SDI WIFI encoder

Product Description

1-channel HD SDI input, 1-channel audio input.

Dual streams output.H.264 format, Audio: MP3, AAC, G.711 format.

Configuration could be freely adjusted according to the need.

Support HTTP / RTSP / RTP/ TCP / RTMP / FLV/ UDP / ONVIF / HLS protocols.

Red indicator: power. Yellow: Network Green: Streaming status.

Key features

• The embedded hardware encoding,support WIFI
• Support H.264 BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE
• Support multiple devices display on a computer at the same time
• Support network directly connected, don’t need match HD collection card.
• Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
• The network interface uses a 1000M full duplex mode
•1 channel SDI input, 1 channel 3.5MM independent audio interface
input, support HDMI / VGA / CVBS convert to SDI input, support audio gain
• Support SD SDI input and support up to 720P, 1080P HD video input
• Support RTSP/RTP/RTMP/HTTP/UDP/ONVIF/HLS unicast and multicast protocol
(RTMP support adding users and passwords changing) Support DHCP protocol, ONVIF protocol, support Blue-ray
• Compatible with Wowza/FMS/RED5 streaming media server etc, work in with streaming media server to push the streaming , to achieve a live streaming
• Support Main TS stream and the sub TS stream use in different network protocols for transmission (Multi-rate multi-protocol support)
• Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
• Video packaging: A mode: FFMPEG, B mode: VLC
• Support streaming resolution output settings custom
• Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)
• Support streaming add watermark (OSD), XY axis, the font can be set;
• Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)
• Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance
• Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
• Support build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individually
• Support coding without video signal; Complete the setting effect immediately, don’t need to restart
• Support one-key recovery of the default configuration
• Support set-top box decoder
• The low power consumption design
