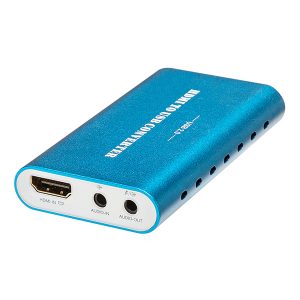

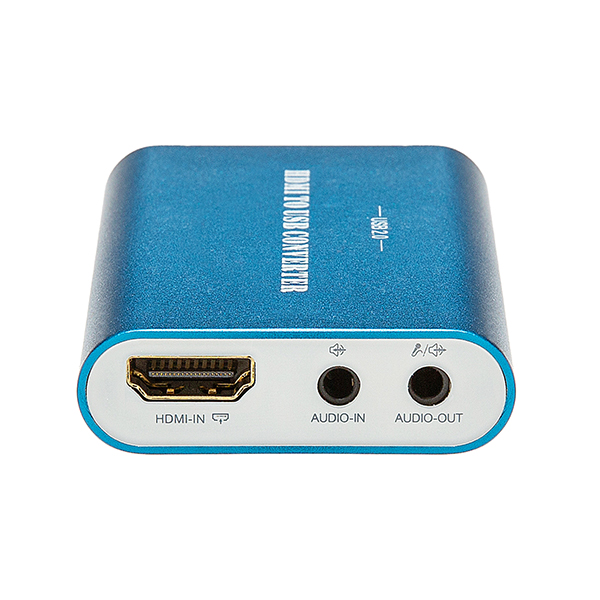

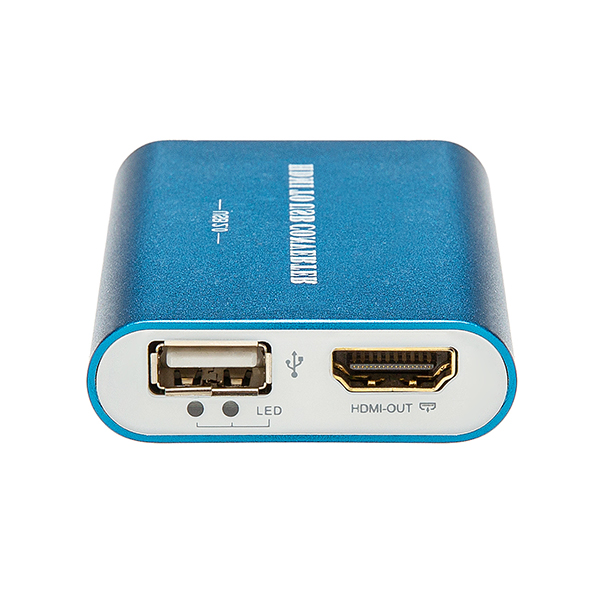

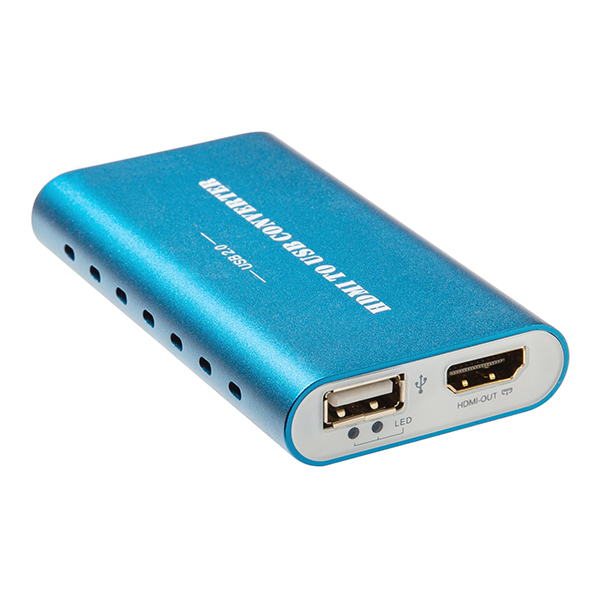

VC2.0 User Manua HDMI Video Capture
VC2.0 User Manua HDMI Video Capture
VC2.0 User Manua HDMI Video Capture
VC2.0 User Manua HDMI Video Capture
VC2.0 User Manua HDMI Video Capture

VC2.0 User Manua HDMI Video Capture

Want create site? Find Free WordPress Themes and plugins.                 Key features HDMI to 4G/ 3G/ WIFI/ LAN. Standard hot shoe Resolution: up to 1920x1080p 60 FPS Supports WINDOWS ,

Protocol : HTTP, SRT,RTSP, RTP, TCP, RTMP, RTMPS, HLS, UDP multicast, unicast

Coding standard : H.265/H.264

Encoded size : Up to 3840*2160 30, 720P 120FPS

Video bit rate : 5-60 fps

:

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES







Key features

  1. HDMI to 4G/ 3G/ WIFI/ LAN.
  2. Standard hot shoe
  3. Resolution: up to 1920x1080p 60 FPS
  4. Supports WINDOWS ,LINUX,MAC OS
  5. Support SRT/ RTSP/ RTP/ RTMP/ RTMPS/HTTP/ ONVIF/ HLS/ / P2P / GB28181 / UDP Unicast and Multicast protocol
  6. Support Main TS stream and the sub TS stream  use in different network protocols for transmission
  7. Encoding level: 1, 2, 3, 4 and 5 (the higher the level, the larger of the code flow fluctuation ratio )
  8. Coding Standard: Base line profile/ main profile/high profile, H.265 main profile:
  9. Audio: MP3, AAC, G.711, sampling rate: 32000,44100, etc, encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K etc
  10. Video bitrate Control: CBR / VBR 16KBIT / S ~ 50MBIT / S
  11. Video packaging: A mode: FFMPEG, B mode: VLC
  12. Transmission: TCP, UDP, 100M/ 1000M (RJ45 Duplex network port)
  13. Support WEB access in Chinese/ English, passwords change, WAN remote management (WEB)
  14. Support Text/ image OSD, images superimposing.
  15. Adjustable coordinates: 1920×1080; the font size: 8 to 72.
  16. Supports automatically obtain IP (DHCP), support One-key recovery, upgrade and remote maintenance.
  17. Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
  18. Support build-in or external audio input, support left and right sound channel, Support audio gain, turn volume individually.
  19. Support encoding without video signal;
  20. Take effect immediately when applied the settings, don’t need to restart.
  21. Support one-key recovery to default setting.
  22. Low power consumption design,
  23. Polymerized Lithium Battery 8V 6400 mAh





F2S5-4G User manual

Product model F2S 4G/3G+ LAN+ WiFi+ battery HDMI Encoder Swither
Input 1Channel HDMI input, 1 Channel line in audio
Output 1 channel IP signal output,HDMI loop out,Audio output
TF card 128G(maximum )
Video Input resolution Up to 1920x1080p 60FPS, standard HDMI resolution
Coding standard H.265/ H.264
Coding level H.265 MAIN PROFILE
H.264 BASELINE PROFILE
H.264 MAIN PROFILE
H.264 HIGH PROFILE
Encoded size 640*360~1920*1080 60fps(Maximum)
Video bit rate Rate control: CBR/VBR 16KBIT/S~50MBIT/S
Video frame rate 5- 60 fps
OSD Text, Image
Audio Input selection 1 channel embedded audio hdmi, 1 channel 3.5MM independent audio, support audio gain
Audio coding AAC/ MP3/ G.711
Audio bit rate 64Kb/s~384Kb/s
Sampling rate 32000、44100,48000 etc
IP output 1 RJ 100M / 1000M adaptive Ethernet port, dual-stream( H.265/264 TS stream)
System Network protocol SRT,HTTP, RTSP, RTMP,RTMPS, ONVIF, HLS, UDP ,multicast, unicast,P2P,GB28181
Configuration management User interface, remote upgrade, Andriod APP, multi-one management platform
  Power supply 12V~2A
power consumption 5W
Size 146mm * 95mm * 35mm(L*W*H)
Operating temperature -20℃+ 60℃
Working humidity <90%,Non-condensing
Polymerized Lithium Battery BP-95 14.8V 6400 mAh 95W (Working time:5-6hours)
Weight 0.8KG
Haiwei reserves the right to adjust the product parameters, if you have any questions please contact us to check
