Product Description

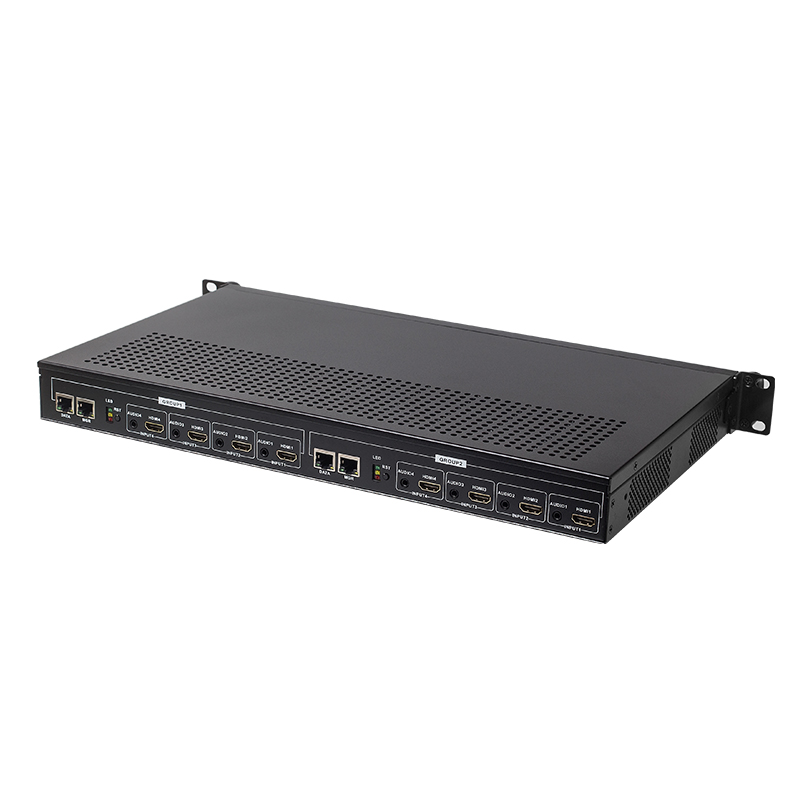

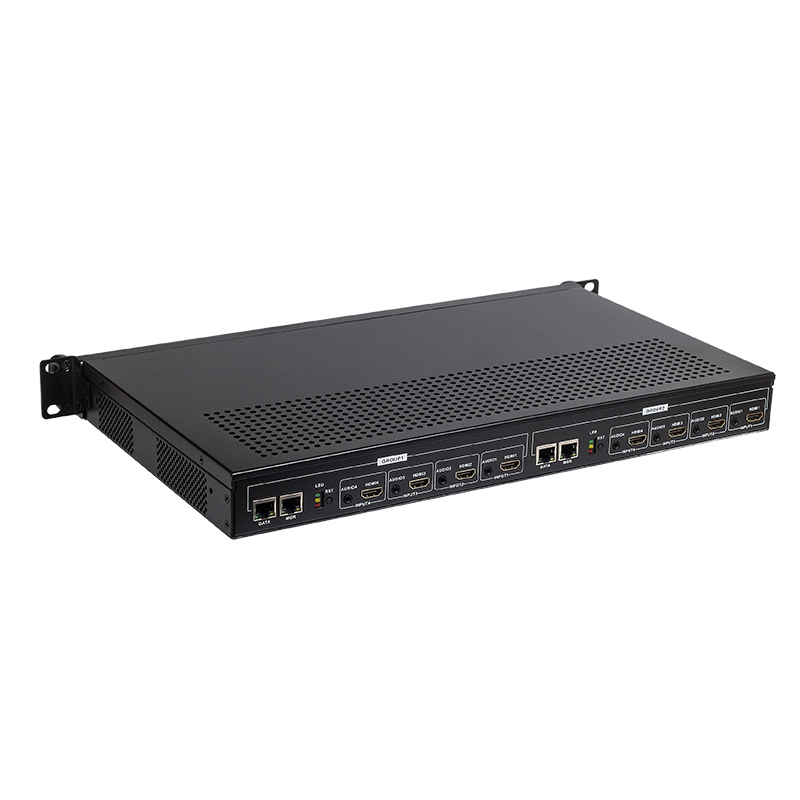

- 8-channel HD HDMI input, 8-channel audio input.
- Dual streams output H.264 AVC format, Audio: MP3, AAC, G.711 format.
- Configuration could be freely adjusted according to the need.
- Support HTTP / RTMPS / RTSP / RTP/ RTMP / UDP / ONVIF protocols.

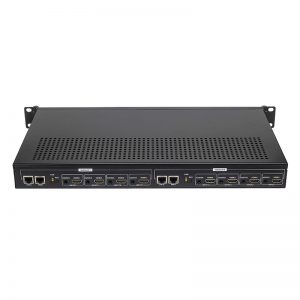

- Dual ethernet port :data port and network management port.

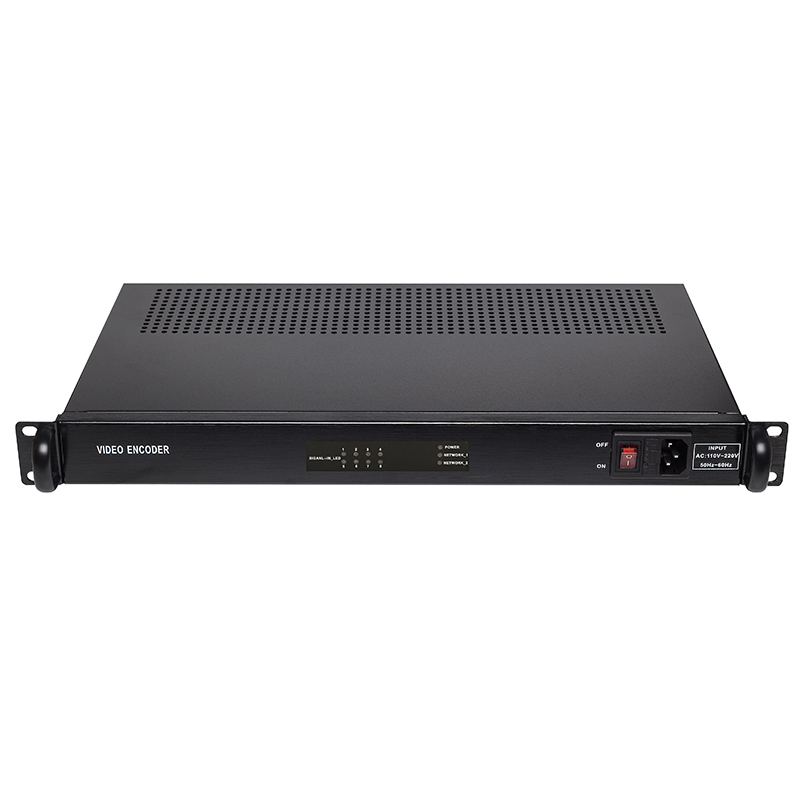

- Red indicator: power. Yellow: Streaming status. Green: Network
- Resolution:1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i (customization available)
- Support RTSP/ RTMPS /TCP/ RTMP/ HTTP/ ONVIF/ UDP unicast and multicast protocol
- Support Main TS stream and the sub TS stream use in different network protocols for transmission
- Encoding level: 1, 2, 3, 4 and 5 (higher the level, larger of the code flow fluctuation ratio )
- Coding Standard: Base line profile/ main profile/high profile,.Audio: MP3, AAC, G.711, sampling rate: 32000,44100,48000 etc, encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K
- Video bitrate Control: CBR / VBR 16KBIT / S ~ 12MBIT / S
- Video packaging: FFMPEG
- Transmission: TCP, UDP, 100M for configuration/ 1000M for transmission
(RJ45 Duplex network port)
- Support WEB access in Chinese/ English, passwords change, WAN remote management (WEB)
- Support Text/ image OSD, images superimposing.
- Supports automatically obtain IP (DHCP), support One-key recovery, upgrade and remote maintenance.
- Support build-in or external audio input, support left and right sound channel, Support audio gain, turn volume individually.
- Support encoding without video signal;
- Take effect immediately when applied the settings, don’t need to restart.
- Support one-key recovery to default setting.
Specification
Product model |
Y530L 8*HDMI Encoder |
Input |
8 Channel HDMI input, 8 Channel audio input |
Output |
2 channel IP output, 2 network management port.8 streams output |
Video |
Input resolution |
Up to 1920x1080p 60FPS |
Coding standard |
H.264 |
Coding level |
H.264 BASELINE PROFILE
H.264 MAIN PROFILE
H.264 HIGH PROFILE |
Encoded size |
640*360~1920*1080(Can customize) |
Video bit rate |
Rate control: CBR/VBR 16KBIT/S~12MBIT/S |
Video frame rate |
5- 60 fps |
OSD |
Text, Image |
Audio |
Input selection |
8 channel embedded audio hdmi, 8 channel 3.5MM independent audio, support audio gain |
Audio coding |
AAC/ MP3/ G.711 |
Audio bit rate |
64Kb/s~384Kb/s |
Sampling rate |
32000、44100,48000 etc |
IP output |
1000M Ethernet for transmission, 1RJ 100M port for configuration
Dual bitrate standard TS stream.
|
System |
Network protocol |
RTMPS , HTTP, RTSP, RTMP, ONVIF, UDP multicast, unicast |
Configuration management |
User interface, remote upgrade, Andriod APP, multi-one management platform |
|
Power supply |
AC110~240V |
power consumption |
28W |
Size |
430mm * 250mm *45mm(length*width*height) |
Operating temperature |
-20℃+ 60℃ |
Working humidity |
<90%,Non-condensing |
Weight |
3KG |
Haiwei reserves the right to adjust the product parameters, if you have any questions please contact us to check |
