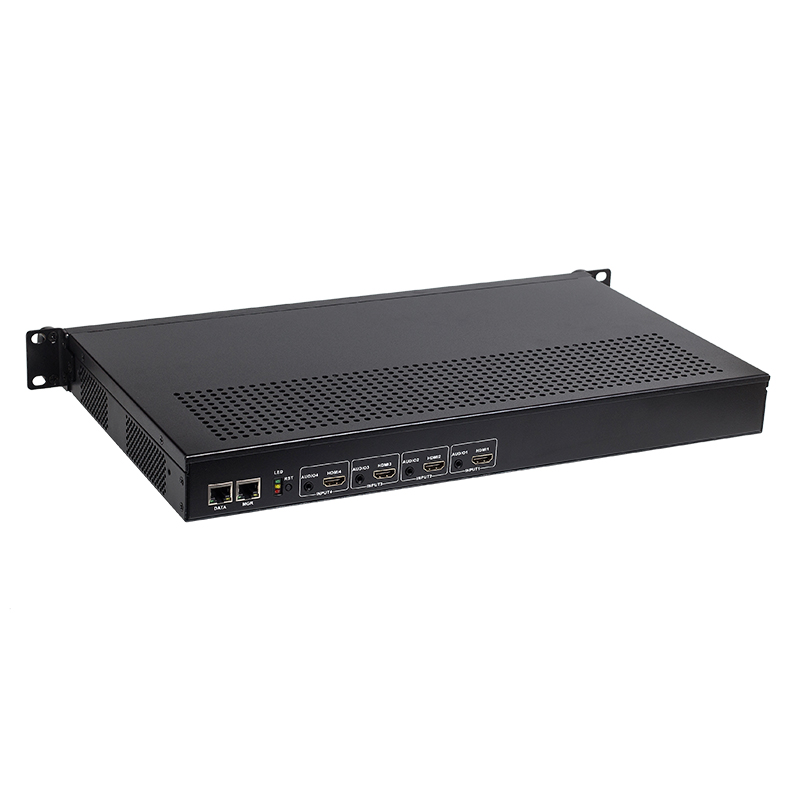

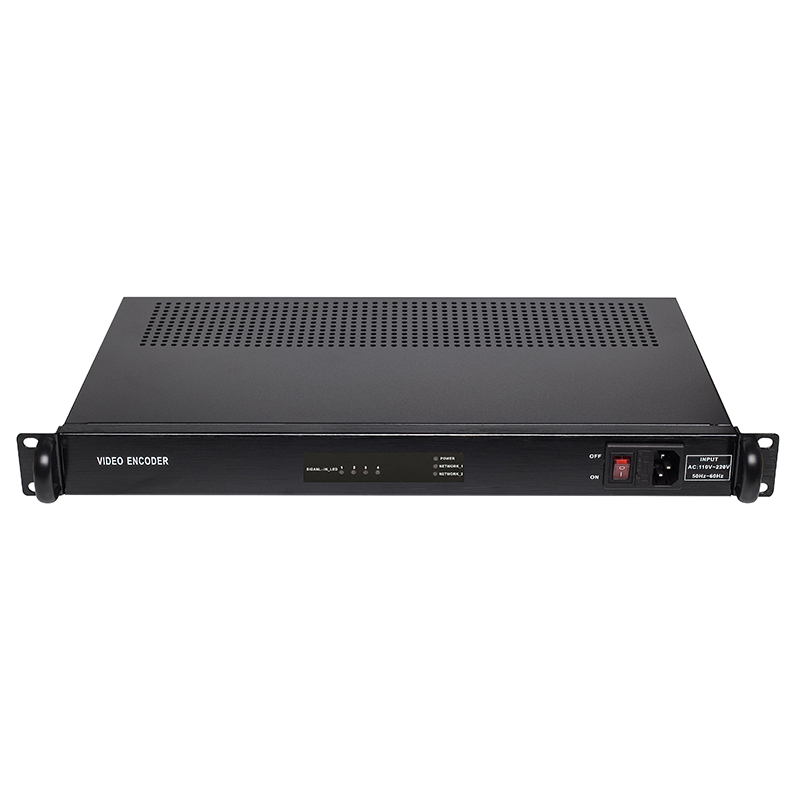

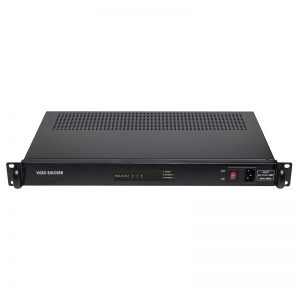

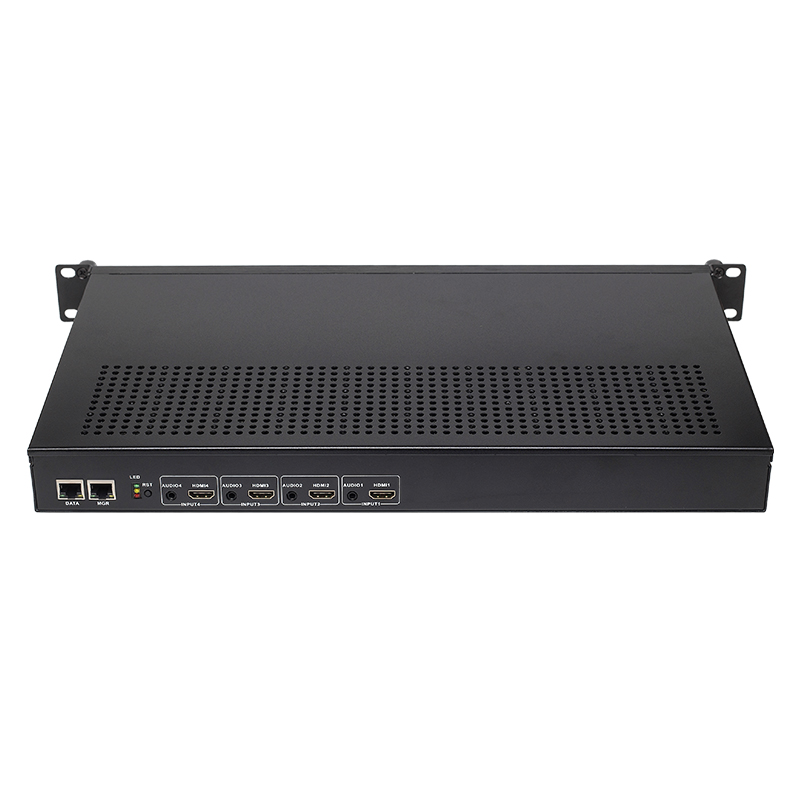

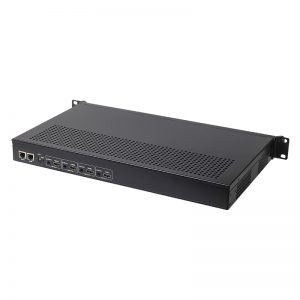

Y520L Dual Ethernet 4*HDMI h 264 encoder hd encoders
Y520L Dual Ethernet 4*HDMI h 264 encoder hd encoders
Y520L Dual Ethernet 4*HDMI h 264 encoder hd encoders
Y520L Dual Ethernet 4*HDMI h 264 encoder hd encoders
Y520L Dual Ethernet 4*HDMI h 264 encoder hd encoders

Y520L Dual Ethernet 4*HDMI h 264 encoder hd encoders

Want create site? Find Free WordPress Themes and plugins.   Product Description 4-channel HD HDMI input, 4-channel audio input. Dual streams output H.264 AVC format, Audio: MP3, AAC, G.711 format. Configuration could be freely

Protocol : HTTP, RTSP, RTMP, ONVIF, UDP multicast, unicast

Coding standard : H.264

Encoded size : Up to 1920*1080 60FPS

Video bit rate : 5-60 fps

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES



Product Description

  • 4-channel HD HDMI input, 4-channel audio input.
  • Dual streams output H.264 AVC format, Audio: MP3, AAC, G.711 format.
  • Configuration could be freely adjusted according to the need.
  • Support HTTP / RTSP / RTP/ RTMP / UDP / ONVIF protocols.
  • Dual ethernet port: Management: WAN, Transmission: LAN
  • Red indicator: power. Yellow: Streaming status. Green: Network



  • 4-channel HD HDMI input, 4-channel audio input.
  • Dual streams output H.264 AVC format, Audio: MP3, AAC, G.711 format.
  • Configuration could be freely adjusted according to the need.
  • Support HTTP / RTSP / RTP/ TCP / RTMP / UDP / ONVIF protocols.
  • Dual ethernet port: Management: WAN, Transmission: LAN
  • Red indicator: power. Yellow: Streaming status. Green: Network

Specification

Product model Y520L  4Channel HDMI Encoder
Input 4Channel HDMI input, 4 Channel audio input
Output 1 channel IP output, 1 network management port.4 streams output
Video Input resolution Up to 1920x1080p 60FPS
Coding standard H.264
Coding level H.264 BASELINE PROFILE
H.264 MAIN PROFILE
H.264 HIGH PROFILE
Encoded size 640*360~1920*1080
Video bit rate Rate control: CBR/VBR 16KBIT/S~12MBIT/S
Video frame rate 5- 60 fps
OSD Text, Image
Audio Input selection 4 channel embedded audio hdmi, 4 channel 3.5MM independent audio, support audio gain
Audio coding AAC/ MP3/ G.711
Audio bit rate 64Kb/s~384Kb/s
Sampling rate 32000、44100,48000 etc
IP output 1000M Ethernet for transmission, 1RJ 100M port for configuration



Dual bitrate standard TS stream.

System Network protocol HTTP, RTSP, RTMP, ONVIF, UDP multicast, unicast
Configuration management User interface, remote upgrade, Andriod APP, multi-one management platform
  Power supply AC 110-240V
power consumption >28W
Size 430mm * 250mm *45mm(length*width*height)
Operating temperature -20℃+ 60℃
Working humidity <90%,Non-condensing
Weight 3KG
Haiwei reserves the right to adjust the product parameters, if you have any questions please contact us to check
