Product Description
1-channel HD HDMI/CVBS/VGA/YPBPR input, 1-channel audio input.
Dual streams output.H.264 format, Audio: MP3, AAC, G.711 format.
Configuration could be freely adjusted according to the need.
Support HTTP / RTSP / RTP/ TCP / RTMP / RTMPS / FLV / UDP / ONVIF / HLS protocols.

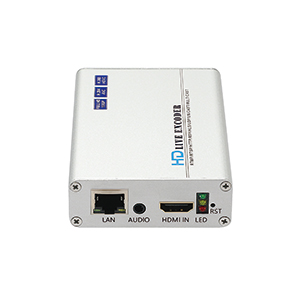

Red indicator: power. Yellow: Streaming status. Green: Network
- Support 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i solutions (customized)
- Support HDMI/CVBS/VGA/YPBPR input(audio interface 3.5 ,one to three wire ,support CVBS input)
- Supports WINDOWS and LINUX etc
- Support multiple devices display on a computer at the same time
- Support RTSP/RTP/RTMP/HTTP/UDP/ONFIV/HLS unicast and multicast protocol (RTMP support adding users and changing passwords)
- Support Main TS stream and the sub TS stream use in different network protocols for transmission ,H.264/H.265
- Encoding level: 1, 2, 3, 4 and 5 (the higher the level ,the larger of the code flow fluctuation ratio )
- Coding Standards BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE, H.265:audio MP3, AAC, sampling rate: 32000,44100, etc., encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K
- Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
- Video packaging: A mode: FFMPEG, B mode: VLC
- Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)
- Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)
- Support OSD in Chinese/ English, support OSD rolling, images superimposing, support adding LOGO ,Characters and symbols; Adjustable coordinates: 1920×1080; The font size resolution: 8 — 72.
- Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance
- Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
- Support build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individually
- Support coding without video signal;
- Complete the setting effect immediately, don’t need to restart
- Support one-key recovery of the default configuration
- Support set-top box decoder
- The low power consumption design
Specification
Product model |
H8118V HD HDMI encoder |
Input |
1 HDMI/CVBS/VGA/YPBPR input, 1 Channel line in audio |
Output |
1 channel IP signal output |
Video |
Input resolution |
Up to 1920x1080p 60FPS, standard HDMI resolution |
Coding standard |
H.265/H.264 |
Coding level |
H.265 main profile
H.264 BASELINE PROFILE
H.264 MAIN PROFILE
H.264 HIGH PROFILE
|
Encoded size
|
640*360~1920*1080 |
Video bit rate |
Rate control: CBR/VBR 16KBIT/S~12MBIT/S |
Video frame rate |
5- 60 fps |
OSD |
Text, Image |
Audio |
Input selection |
1 channel embedded audio hdmi, 1 channel 3.5MM independent audio support audio gain |
Audio coding |
AAC/MP3/G711 |
Audio bit rate |
64Kb/s~384Kb/s |
Sampling rate |
32000、44100,48000 etc |
IP
output
|
1 RJ 100M / 1000M adaptive Ethernet port, dual-stream( H.265/264 TS stream) |
System |
Network protocol |
HTTP, RTSP, RTMP, ONVIF, HLS, UDP multicast, unicast |
Configuration management |
User interface, remote upgrade, Andriod APP, multi-one management platform |
The common use |
Power supply |
12V~2A |
power consumption |
5W |
Size |
100mm * 118mm * 40mm(length*width*height) |
Operating temperature |
-20℃+ 60℃ |
Working humidity |
<90%,Non-condensing |
Weight |
0.18KG |
Our company reserves the right to adjust the product parameters, if you have any questions please contact us to check |
