H8115 H.265 SDI HD h 264 encoder hd encoders
H8115 H.265 SDI HD h 264 encoder hd encoders
H8115 H.265 SDI HD h 264 encoder hd encoders
H8115 H.265 SDI HD h 264 encoder hd encoders

H8115 H.265 SDI HD h 264 encoder hd encoders

Want create site? Find Free WordPress Themes and plugins.   Product Description 1-channel HD SDI input, 1-channel audio input. Dual streams output.H.264 format, Audio: MP3, AAC, G.711 format. Configuration could be freely adjusted

Protocol : HTTP, RTSP, RTP, TCP, RTMP, RTMPS , HLS, UDP multicast, unicast

Coding standard : H.265 / H.264

Encoded size : Up to 1920*1080 60FPS

Video bit rate : 5-60 fps

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES



Product Description

1-channel HD SDI input, 1-channel audio input.

Dual streams output.H.264 format, Audio: MP3, AAC, G.711 format.

Configuration could be freely adjusted according to the need.

Support HTTP / RTSP / RTP/ TCP / RTMP / RTMP / FLV / UDP / ONVIF / HLS protocols.

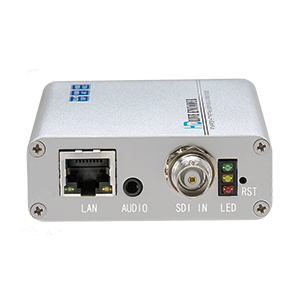

Red indicator: power. Yellow: Network Green: Streaming status.



◆Definition 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i etc(can be customized)

◆SDI input, H.265 HEVC architecture, supports WINDOWS& LINUX etc

◆Supports Andriod APK&SDK.

◆supports RTSP,RTMP, HTTP, UDP,ONVIF,HLS Unicast、 multicast etc(RTMP support adding users and changing passwords)

◆Support Main TS stream and the sub TS stream (H.264/H.265) use in different network protocols for transmission

◆Encoding level: 1, 2, 3, 4 and 5 (the higher the level ,the larger of the code flow fluctuation ratio )

◆Coding Standards BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE, H.265:audio MP3, AAC, sampling rate: 32000,44100, etc., encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256

◆BITRATE: CBR/VBR 16KBIT/S~12MBIT/S

◆Video packaging: A mode: FFMPEG, B mode: VLC

◆Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)

◆Supports WEB access in Chinese/English, passwords changing, WAN remote management (WEB)

◆Supports OSD rolling in Chinese/ English, images superimposing, support adding LOGO ,Characters and symbols; Adjustable coordinates: 1920×1080; The font size resolution: 8 to 72.

◆Supports DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance

◆Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering

◆Supports build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individually

◆Supports coding without video signal, supports independent audio push flow

◆Complete the setting effect immediately, don’t need to restart

◆Supports one-key recovery of the default configuration

◆Supports set-top box decode

◆The low power consumption design

Specification

Model



H8115 SDI HD Encoder



Input 1Channel SDI input, 1 Channel line in audio
Output 1 channel IP signal output
Video Input resolution Up to 1920x1080p 60FPS, standard HDMI resolution
Coding standard H.265 / H.264
Coding level H.265 main profile



H.264 BASELINE PROFILE

H.264 MAIN PROFILE

H.264 HIGH PROFILE





Encoded size

640*360~1920*1080
Video bit rate CBR/VBR 16KBIT/S~12MBIT/S
Video frame rate 5- 60 fps
OSD Text, Image
Audio Input selection 1 channel embedded audio hdmi, 1 channel 3.5MM independent audio support audio gain
Audio coding AAC/MP3/G.711
Audio bit rate 64Kb/s~384Kb/s
Sampling rate 32000、44100、48000 etc
IP



Output

1 RJ 100M / 1000M adaptive Ethernet port, dual-stream( H.265/264 TS stream)
System Protocols HTTP, RTSP, RTMP, ONVIF, HLS, UDP multicast, unicast
Configuration management User interface, remote upgrade, Andriod APP, multi-one management platform

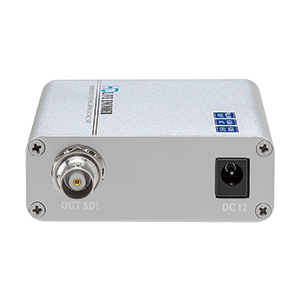

  Power supply 12V~2A
power consumption 5W
Size 100mm x 70mm x 25mm
Operating temperature -20℃+ 60℃
Working humidity <90%, Non-condensing
Weight 0.3KG
Our company reserves the right to adjust the product parameters, if you have any questions please contact us to check
