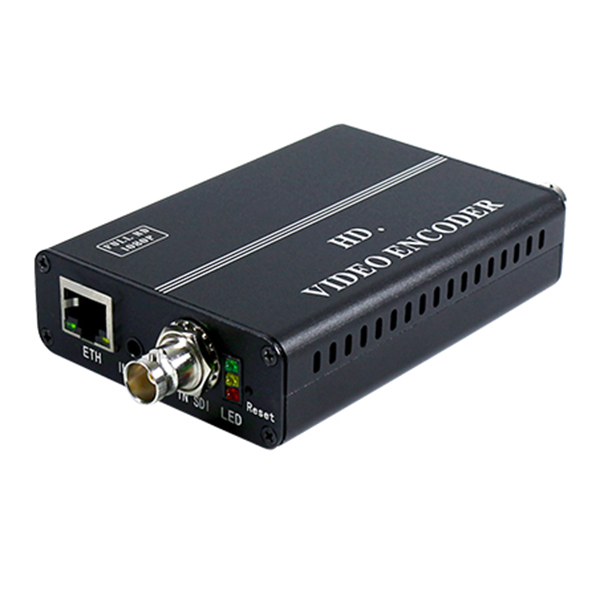

Product Description
1-channel HD SDI input, 1-channel video input.
Dual streams output.H.264 format, Audio: MP3, AAC, G.711 format.
Configuration could be freely adjusted according to the need.
Support HTTP / RTSP / RTP/ TCP /RTMPS / RTMP / FLV/ UDP / ONVIF / HLS protocols.

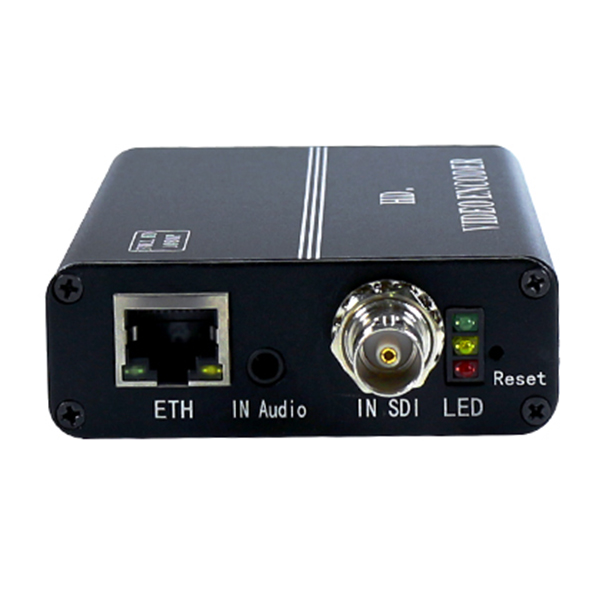

Red indicator: power. Yellow: Network. Green: Streaming status.
- The embedded hardware encoding
- Support H.264 BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE
- Support multiple devices display on a computer at the same time
- Support network directly connected, don’t need match HD collection card.
- Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
- The network interface uses a 1000M full duplex mode
- 1 channel SDI input, 1 channel 3.5MM independent audio interface
input, support HDMI / VGA / CVBS convert to SDI input, support audio gain
- Support SDI input and support up to 720P, 1080P HD video input
- Support RTSP/RTP/RTMP/HTTP/UDP/ONVIF/HLS unicast and multicast protocol
(RTMP support adding users and passwords changing) Support DHCP protocol, ONVIF protocol, support Blue-ray
- Compatible with Wowza/FMS/ZTE/Youtube /RED5/streaming media server etc, work in with streaming media server to push the streaming , to achieve a live streaming
- Support Main TS stream and the sub TS stream use in different network protocols for transmission(Multi-rate multi-protocol support)
- Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
- Video packaging: A mode: FFMPEG, B mode: VLC
- Support streaming resolution output settings custom
- Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)
- Support streaming add watermark (OSD), XY axis, the font can be set;
- Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)
- Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance
- Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
- Support build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individuallyH8114 SDI HD encoder
- Support coding without video signal;
- Complete the setting effect immediately, don’t need to restart
- Support one-key recovery of the default configuration
- Support set-top box decoder
- The low power consumption design
Specification
Product model |
H8114 SDI HD encoder |
Input |
1 channel SDI input,1 channel 3.5 audio input |
Output |
1 channel IP signal output |
Video |
Input resolution |
Up to 1920x1080p 60FPS, standard HDMI resolution |
Coding standard |
H.264 |
Coding level |
H.264 BASELINE PROFILE
H.264 MAIN PROFILE
H.264 HIGH PROFILE
|
Encoded size
|
640*360~1920*1080 |
Video bit rate |
Rate control: CBR/VBR 16KBIT/S~12MBIT/S |
Video frame rate |
5- 60 fps |
OSD |
Text, Image |
Audio |
Input selection |
1 channel embedded audio SDI, 1 channel 3.5MM independent audio support audio gain |
Audio coding |
AAC/MP3/G711 |
Audio bit rate |
64Kb/s~384Kb/s |
Sampling rate |
32000、44100 ,48000etc |
IP
output
|
1 RJ 100M / 1000M adaptive Ethernet port, dual-stream( H.265/264 TS stream) |
System |
Network protocol |
HTTP, RTSP, RTMP, ONVIF, HLS, UDP multicast, unicast |
Configuration management |
User interface, remote upgrade, Andriod APP, multi-one management platform |
The common use |
Power supply |
12V~2A |
power consumption |
5W |
Size |
100mm * 70mm * 25mm(length*width*height) |
Operating temperature |
-20℃+ 60℃ |
Working humidity |
<90%,Non-condensing |
Weight |
0.3KG |
Our company reserves the right to adjust the product parameters, if you have any questions please contact us to check |
