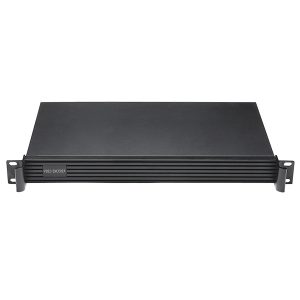

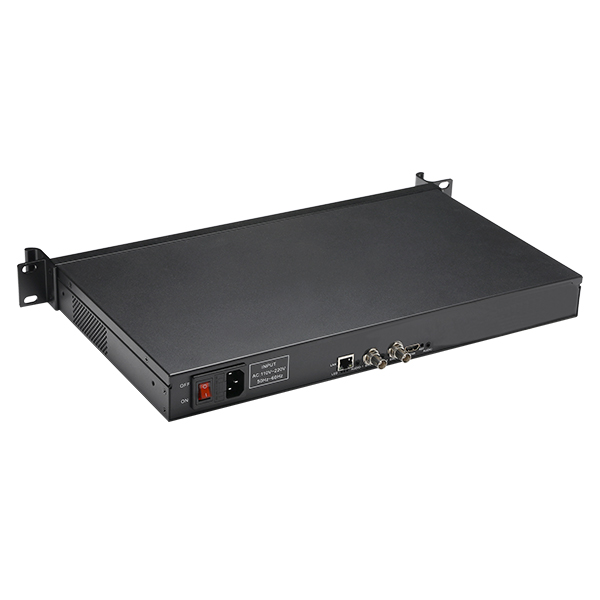

H3412B 1ch HDMI+ 2ch CVBS output simultaneously h 264 encoder hd encoders

Product Description

H3412B HD 1ch HDMI + 2ch CVBS:

Support 1 channel HDMI+ 2ch CVBS input/ 3ch Line in (independent) audio.

Audio: MP3 / AAC/ G711 format.

H.264 dual streams (main/ sub stream)

Support HTTP / RTSP / RTP / RTMP / UDP / ONVIF protocols.

Adjustable rate coding, the picture quality can be controlled.

Configurations could be freely adjusted according to the need.

◆ The embedded hardware encoding

Support 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i solutions (customized))

◆ Support H.264 BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE

◆Support multiple devices display on a computer at the same time

◆Support network directly connected, don’t need match HD collection card.

◆Support Network interface full-duplex mode 1000M

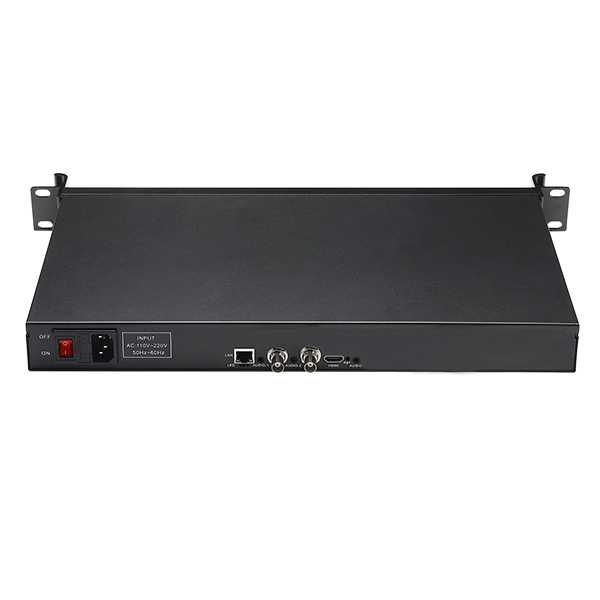

◆1 channel HDMI input, 1 channel AV input, 1 channel audio interface 3.5MM independent input, support SDI / VGA / CVBS to HDMI input, Support audio gain ,be able to turn volume individually

◆Support up to 720P HD video input 1080P

◆Support RTSP/RTP/RTMP/HTTP/UDP unicast and multicast protocol (RTMP support adding users and changing passwords), Support DHCP/ ONVIF protocol, support HD Blue ray

◆Compatible with Wowza/FMS/RED5 streaming media server, work in with streaming media server to push the streaming, to achieve a live streaming

◆ Support Main TS stream and the sub TS stream use in different network protocols for transmission (Multi-rate multi-protocol support)

◆ Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S

◆ Video packaging: A mode: FFMPEG, B mode: VLC

◆ Supports streaming resolution custom output settings

◆ Transmission: TCP, UDP, 1000M (RJ45 Ethernet port duplex)

◆ Support streaming add watermark (OSD), XY axis, the font can be set;

◆ Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)

◆Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)

◆ Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance

◆Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering

◆Support build-in or external methods , support left and right sound channel ,

Support audio gain ,be able to turn volume individually

◆ Support coding without video signal;

◆ Complete the setting effect immediately, don’t need to restart

◆ Support one-key recovery of the default configuration

◆ Support set-top box decoder

◆ low power consumption design

Specification
