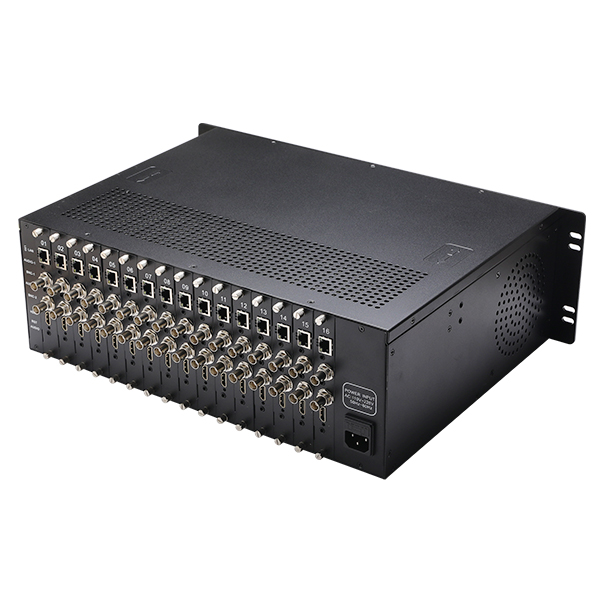

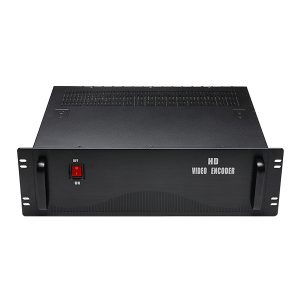

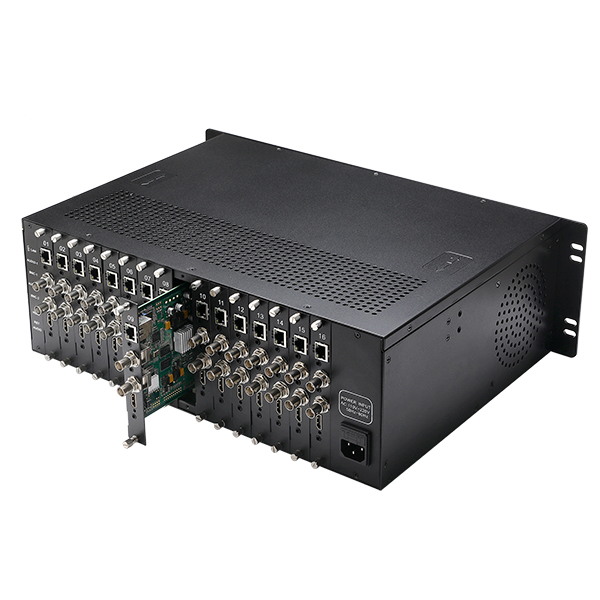

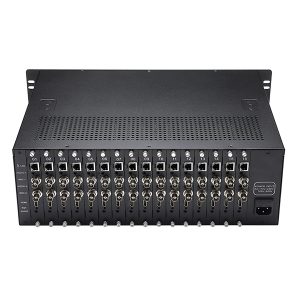

H1632B 16ch HDMI+ 32ch CVBS output simultaneously h 264 encoder hd encoders

Product Description

Support 16 channel HDMI+ 32ch CVBS input/ 16ch Line in (independent) audio.

Audio: MP3 / AAC/ G.711 format.

H.264 dual streams (main/ sub stream)

Support HTTP / RTSP / RTP / RTMP / UDP / ONVIF / HLS protocols.

Adjustable rate coding, the picture quality can be controlled.

Configurations could be freely adjusted according to the need.

◆ The embedded hardware encoding

◆ The standard 3U rack

◆ Support H.264 BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE

◆ Support multiple devices display on a computer at the same time

◆Support network directly connected, don’t need match HD collection card.

◆ Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S

◆ The network interface uses a 1000M full duplex mode

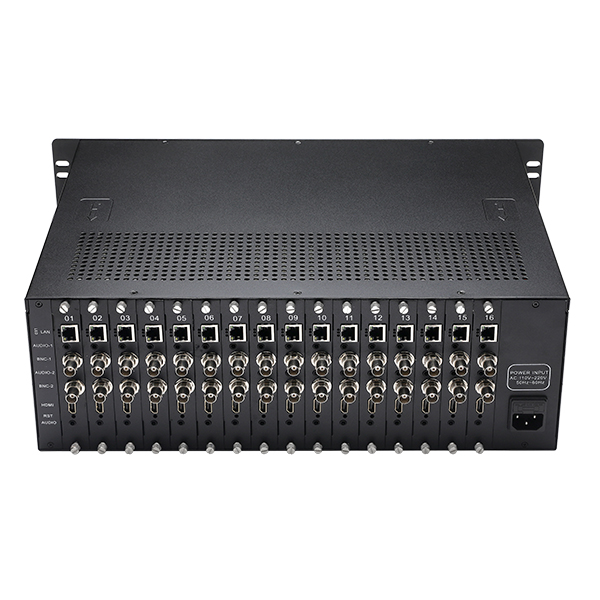

◆ 16-channel HDMI interface input, 32-channel CVBS or BNC interface input (with BNC connector mounted switch CVBS), 48-channel audio interface 3.5MM independent input， Support audio gain ,be able to turn volume individually

◆ Support for external independent audio input

◆ Support up to 720P HD video input 1080P

◆Support RTSP/RTP/RTMP/HTTP/UDP unicast and multicast protocol (RTMP support adding users and changing passwords), Support DHCP/,ONVIF protocol, support HD Blue ray

◆Compatible with Wowza/FMS/RED5 streaming media server, work in with streaming media server to push the streaming , to achieve a live streaming

◆ Support Main TS stream and the sub TS stream  use in different network protocols for transmission (Multi-rate multi-protocol support)

◆ Video packaging: A mode: FFMPEG, B mode: VLC

◆ Supports streaming resolution output settings custom

◆ Transmission: TCP, UDP, 1000M (RJ45 Ethernet port duplex)

◆ Support streaming adding watermark (OSD), XY axis, the font can be set;

◆ Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)

◆ Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB).

◆ Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance

◆Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering

◆ Support build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individually

◆ Support coding without video signal;

◆ Complete the setting effect immediately, don’t need to restart

◆ Support one-key recovery of the default configuration

◆ Support set-top box decoder

◆ The low power consumption design
