Want create site? Find Free WordPress Themes and plugins.    Product Description V30U is a professional camera that supports FHD 1080P image capture. The product supports 1 USB 2.0 output. 120 °wide angle field and strong co

V31U FHD USB Camera : No MOQ Limited

Protocol : RTMPS ,HTTP, RTSP, RTMP, ONVIF, UDP multicast, unicast

Coding standard : 1080P

Encoded size : Up to 1920*1080 60FPS

Video bit rate : 5-60 fps

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES



 Product Description

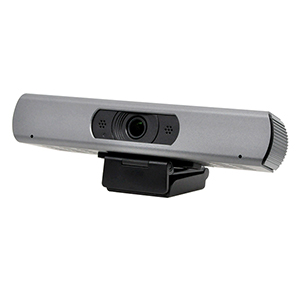

V30U is a professional camera that supports FHD 1080P image capture. The product supports 1 USB 2.0 output. 120 °wide angle field and strong compatibility. Easy to use. Widely used in webcasts, video conferences, Tele-Education and training, Tele-Surgery, game streaming, interviews, roadshows and so on.



Key Features

◆ 1080P Full HD Ultra Wide Angle

1080P full hd with ultra-high wide-angle, which could provide a maximum of 1080P @ 30fps / 25fps image output, and it’s also backward compatible with resolutions such as 720p. Wide FOV and horizontal FOV up to 120 °

◆ USB 2.0

Multifunction USB 2.0 interface with power supply, video and audio.

◆ Built-in microphone

Not only built-in microphone array to capture more realistic sound from all angles within 6 meters, making your sound sound natural and clear besed on our noise reduction chip. But also provides microphone in interface for external audio

◆ Low illumination

The Starlight CMOS image sensor with 55 dB high signal noise ratio can effectively reduce image noise in low-light conditions. At the same time, 2D and 3D noise reduction algorithms could greatly reduce image noise. The screen still keep clean and clear even in ultra-low light conditions.

◆ Built-in power switch

Supports one-button power switch, eliminating the need to repeatedly plug and unplug the power switch.

◆ Easy installation

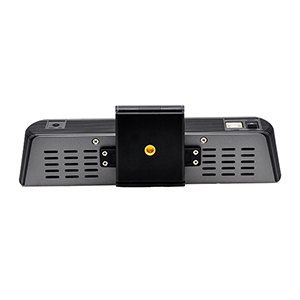

Equipped with a damping rotating shaft bracket as standard, it is suitable for mainstream monitors on the market, and it can be installed stably and reliably.

Relate series,click for more info

Specification

model V30U HD USB Camera
sensor 1/2.7”, CMOS, Effective Pixel: 2.07M
Input & Output 1xUSB 2.0: Type B
audio port 1-ch 3.5mm audio interface, Line In
Lens feature Resolution 1080P@30fps/25fps, backward compatible with 720P etc.
scanning method Progressive
Lens options Lens 2: focus: f = 3.1mm, horizontal FOV:120°
Lens mount M12
auto focus Support(except 120°lens)
Minimum illumination 0.5Lux@(F1.8,AGC ON)
shutter 1/30s~1/10000s
White balance Auto/manual/VAR
BLC Support
Digital noise reduction 2D&3D digital noise reduction
USB feature Color System / Compression H.264/MJPEG/YUY2
Operate System Windows7 (Only supports 1080p and under 1080p)



Windows 8.1,

Windows 10 or macOSTM 10.10 or GoogleTM ChromebookTM Version 29.0.1547.70 or Linux (need support UVC)

Hardware requirements 2.4 GHz Intel® Core 2 Duo processor or higher



2 GB RAM or more

USB 2.0 port

Video format 1080p@30fps/25fps, 720p@30f ps/25fps, 960x540p@30fps/25fps, 640x360p@30 fps/25fps
USB video communication protocol UVC 1.0
General specification Electrical parameters 5V(USB power supply);270mA ;1.4W
switch support
Operating temperature -10℃~40℃
Storage Temperature -40℃~60℃
Power Consumption MTBF 30000H
Size 192mm*45mm*135mm
Net Weight 0.214kg
Our company reserves the right to adjust product parameters. If you have any questions, please contact us to check
