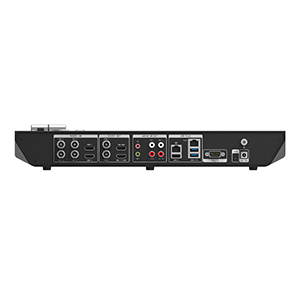

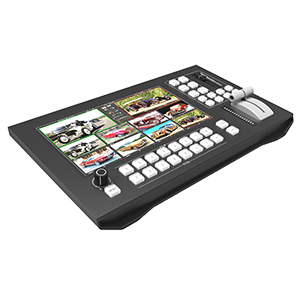

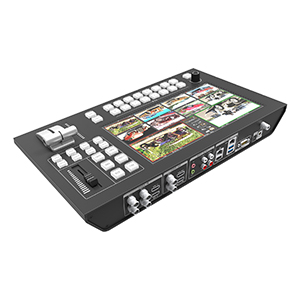

TD110 11.6 Inch H.264 H.265 HD 8 Channels Input Video Switcher
TD110 11.6 Inch H.264 H.265 HD 8 Channels Input Video Switcher
TD110 11.6 Inch H.264 H.265 HD 8 Channels Input Video Switcher
TD110 11.6 Inch H.264 H.265 HD 8 Channels Input Video Switcher
TD110 11.6 Inch H.264 H.265 HD 8 Channels Input Video Switcher

TD110 11.6 Inch H.264 H.265 HD 8 Channels Input Video Switcher

Want create site? Find Free WordPress Themes and plugins.      l*Multi-channel input, up to 4 channels of 3G-SDI+2 channels of HDMI+2 channels of IP, a total of 8 channels of video input, which can be adapted to a variety of live

Video input : 4 channels 3G-SDI+2 channels HDMI+2 channel IP video streaming

Video output : 2 channels 3G-SDI+1channalesHDMI+2channels IP video streaming

Live video encoding format : H.264、H.265

Network input protocol : RTSP、RTMP

Transition control : T-Bar、button

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES



  1. l*Multi-channel input, up to 4 channels of 3G-SDI+2 channels of HDMI+2 channels of IP, a total of 8 channels of video input, which can be adapted to a variety of live broadcast environments
  2. l*Volume control, body integrated volume control fader, support for output volume control
  3. l*High-definition display, the body integrates an 11.6-inch high-definition display, no need to connect an external preview large screen, simplifying the process of setting up a live
  4. broadcast environment
  5. l* Various transition effects6.
  6. l* Subtitle and LOGO overlay
  7. l*Picture in Picture
  8. TD110 11.6 Inch H.264 H.265 HD 8 Channels Input Video Switcher

Relate series,click for more info

Specification

Parameter
Video standard FHD
Video processing



capabilities

Input:



Max 1920x1080p60

Output:

Max 1920x1080p60

Video input 4 channels 3G-SDI+2 channels HDMI+2 channel IP video streaming
Video output 2 channels 3G-SDI+1channalesHDMI+2channels IP video streaming
Live video encoding format H.264、H.265
Live video bitrate 500~10240Kbps
Live video bitrate mode CBR
Network input protocol RTSP、RTMP
Network output protocol RTSP、RTMP
Audio input RCA  head*1



TRS3.5mm*1

Video embedded

Audio output RCA *1



TRS 3.5mm*1

Video embedded

Transition control T-Bar、button
Subtitle overlay support
Logo overlay support
USB port USB3.0*2+USB2.0*2
Power supply
Input voltage DC 12V
Input Current 3A
Rated power 36W
Others
Use environment Indoor
Operating temperature 0℃~40℃
Storage temperature -10℃~50℃
Dimensions 420*257.52*121.2mm
