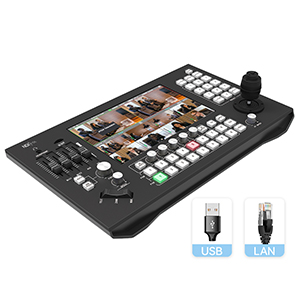

TD100 live video control switcher
8 channels, RTMP recording, PTZ camera control
Feature

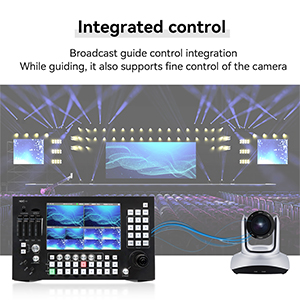

Integration of live control, supporting fine control of the camera while living video, simplifying the live broadcast equipment and making the live broadcast environment easier to build

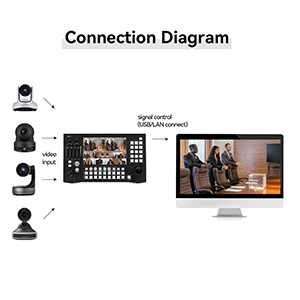

Multi-channel input and output, up to 8 channels of 1080p60 video input, with an IP camera, you can start your live broadcast with only one network cable
Support multi-protocol, support network, HDMI, local file access and output video, support mainstream live streaming protocol, can also choose NDI|HX2
Integrated mixer, support 4-channel mixer, support multiple audio input and output methods
A variety of operation methods, through the touch screen, buttons and other methods to efficiently control the live broadcast, so that the live broadcast is under your control at any time
A variety of transition effects, support for multiple transition effects such as fade in and fade out
Custom overlay content, support subtitle overlay and logo overlay
High-definition touch display, the body integrates a 10.1-inch high-definition display, the device operation mode is more user-friendly
Relate series,click for more info
Specification
Parameters |
Video standard
|
FHD |
Video processing capability |
input:
Up to :1920x1080p60 * 8
output:
Up to 1920x1080p60(HDMI)+1920x1080p60(IP)+1280x720p60(IP)
|
video input |
8 channel IP video streaming +1 channel HDMI+ local video |
video output |
2 channel IP video streaming +1 channel HDMI+ local recording |
Live video encoding format |
H.264、H.265 |
Live video bitrate |
512Kbps~16384Kbps |
Live video bitrate mode |
CBR |
Network input protocol |
RTSP、RTMP |
Network output protocol |
RTSP、RTMP、NDI|HX(optional) |
audio input |
RCA*1
TRS6.3mm*2: Compatible with active and passive signals
Video embedded
|
audio output |
RCA*1
Video embedded
|
Mixer |
4 physical tuning + 8 digital tuning |
Transition control |
T-Bar、button 、touch |
Subtitle overlay |
support |
Logo overlay |
support |
Tally |
DB9 output |
USB Port |
USB3.0*2+USB2.0*2 |
Camera Control |
Support PTZ, focus, exposure, white balance, preset position control |
Power supply |
Input voltage |
DC 12V |
Input Current |
3A |
Rated power |
36W |
POE |
Optional 802.3AT |
Others |
Use environment |
Indoor |
Operating temperature |
0℃~40℃ |
Storage temperature |
-10℃~50℃ |
Dimensions |
420*257.52*121.2mm |
