HSD-S1 Series WebRTC Multifunctional Professional Encoder&Decoder&Transcoder
HSD-S1 Series WebRTC Multifunctional Professional Encoder&Decoder&Transcoder

HSD-S1 Series WebRTC Multifunctional Professional Encoder&Decoder&Transcoder

HSD-S1 HDMI video interactive hardware terminal professional 4K high -definition video encoding, decoding, transcoding, and mixing product, this product can realize multi -channel video signal two -way interactive transmission, up to 2 IP signal decoding.

Encoder&Decoder&Transcoder :

:

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES

HSD-S1 HDMI video interactive hardware terminal professional 4K high -definition video encoding, decoding, transcoding, and mixing product, this product can realize multi -channel video signal two -way interactive transmission, up to 2 IP signal decoding.

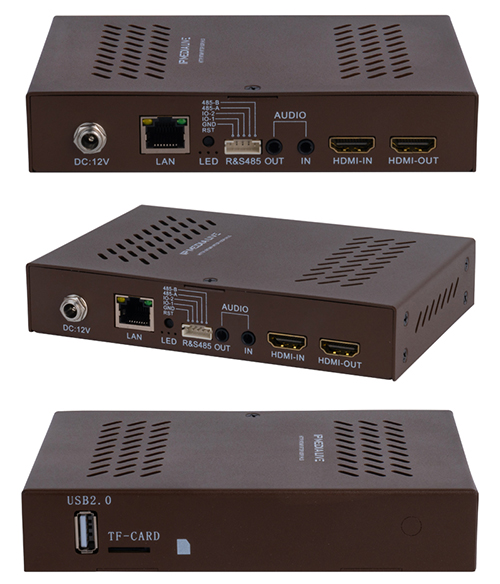

HDMI input/output, 1channel LINE-IN audio.

2 Channel ip decoding output

1 Channel audio in/out

Dual streams output. H.265/ H.264 format, Audio: MP3, AAC, G711 format.

Configuration could be freely adjusted according to the need.

Support WebRTC/SRT/HTTP / RTSP / RTP/ TCP / RTMP / RTMPS/ UDP / ONVIF / HLS/NDI(optional) protocols.

Support WebRTC Encoding Decoding

Support NDI(optional)

Red indicator: power. Yellow: Streaming status. Green: Network

Key features

  1. Resolution:1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i (customizable)
  2. Supports WINDOWS ,LINUX and MAC OS
  3. Support WebRTC/SRT/ RTSP/ RTP/ RTMP/ RTMPS/ HTTP/ ONVIF/ HLS/ UDP unicast and multicast /NDI(optional) protocol
  4. Support Main TS stream and the sub TS stream use in different protocol.
  5. Encoding level: 1, 2, 3, 4 and 5 (the higher the level, the larger of the code flow fluctuation ratio )
  6. Coding Standard: Base line profile/ main profile/high profile, H.265 main profile:
  7. Audio: MP3, AAC, G.711, sampling rate: 32000,44100, etc, encoded audio bit rate: 24K,32K,48K, 64K, 96K, 128K, 160K, 192K, 256K
  8. Video bitrate Control: CBR / VBR 16KBIT / S ~ 12MBIT / S
  9. Video packaging: A mode: FFMPEG, B mode: VLC
  10. Transmission: TCP, UDP, 100M for configuration. 1000M for transmission (RJ45 Duplex network port)
  11. Chinese/ English WEB, change passwords of the encoder, remotely configure (WEB)
  12. Support Text/ image OSD, images superimposing.   Adjustable coordinates: 1920x1080; the font size: 8 to 72.
  13. Supports automatically obtain IP (DHCP), support One-key recovery, upgrade and remote maintenance.
  14. Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
  15. Support build-in or external audio input, support left and right sound channel, Support audio gain, turn volume individually.
  16. Support encoding without video signal;
  17. Take effect immediately when applied the settings, don’t need to restart.
  18. Support one-key recovery to default setting.
  19. Low power consumption design.

Product model

HSD-S1 WebRTC Multifunctional Professional Encoder&Decoder&Transcoder

Input

1*HDMI input, 1*audio input, 2*IP input(Decoding)

Output

1*IP/AUDIO/HDMI output,

Record

Support msata recording

Video

Input resolution

Up to 1920*1080, standard HDMI resolution

Coding standard

H.265/ H.264

Coding level

H.265 MAIN PROFILE                                                        H.264 BASELINE PROFILE
H.264 MAIN PROFILE
H.264 HIGH PROFILE

Encoded size

640*360~1920*1080(Customizable)

Video bit rate

Rate control: CBR/VBR 16KBIT/S~12 MBIT/S

Video frame rate

1080P 60fps

OSD

Text,Image

Audio

Input selection

1 channel embedded audio hdmi, 1 channel 3.5MM independent audio, support audio gain

Audio coding

AAC/ MP3/ G.711

Audio bit rate

64Kb/s~384Kb/s

Sampling rate

24000,32000,44100,48000,64000,256000 etc

IP output

1 RJ 100M / 1000M adaptive Ethernet port, dual-bitrate( H.265/264 TS stream)

System

Network protocol

WebRTC, SRT,HTTP, RTSP, RTMP, RTMPS,ONVIF, HLS, UDP multicast, unicast,NDI(optional )

Configuration management

User interface, remote upgrade, multi-one management platform



Power supply

12V~2A

power consumption

5W

Size

118mm * 100mm * 40mm(L*W*H)

Operating temperature

-20℃+ 60℃

Working humidity

<90%,Non-condensing

Weight

 0.3KG

Haiwei reserves the right to adjust the product parameters, if you have any questions please contact us to check
