Product Description

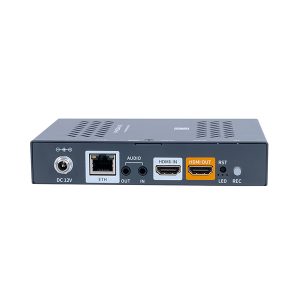

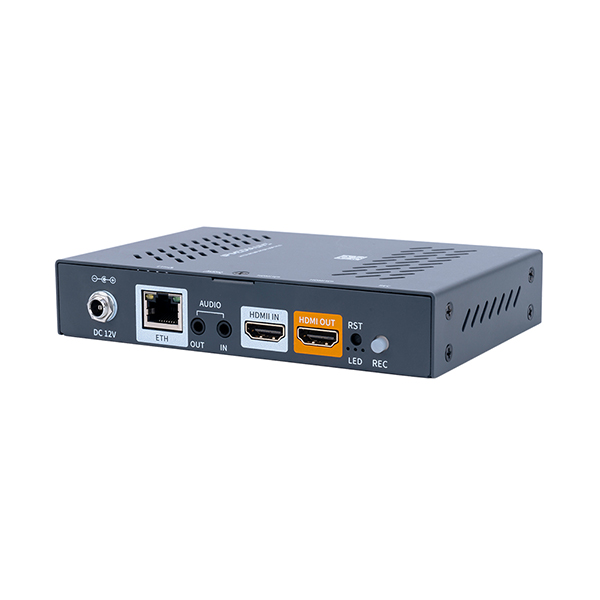

1,1 channel HDMI input,1 channel HDMI loop output, 1 channel Audio output channel HDMI input,channel HDMI loop output

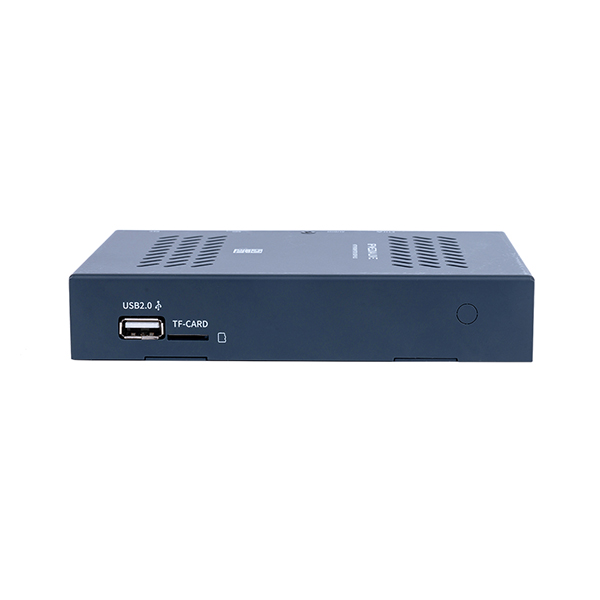

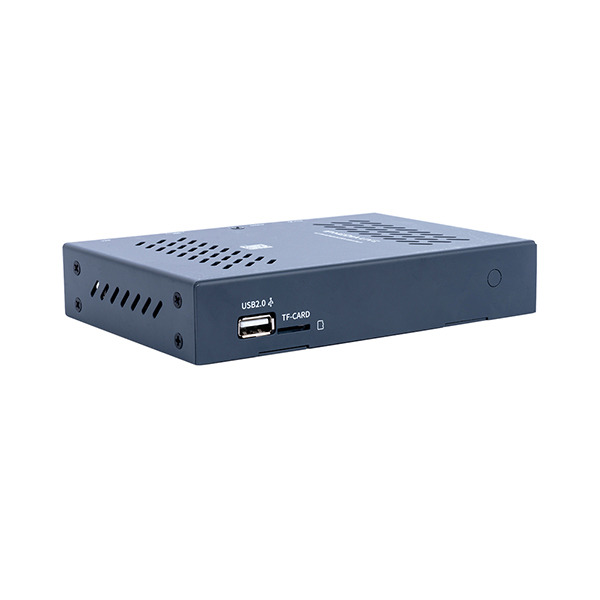

2,Support USB/TF Card recoding(maximum 128G)
3,4 streams output(SRT,RTMP,HTTP UDP,HLS,RTSP etc)
4,H.265/ H.264 format, Audio: AAC, G.711 format.
5,4 streams:2*1920*1080+1280*720+720*576
6,Support SRT / HTTP / RTSP / RTP/ TCP / RTMP / RTMPS / UDP / ONVIF / HLS/ protocols.
Red indicator: power. Yellow: Streaming status. Green: Network
Key features
- HDMI to Ethernet(100M/1000M).
- Resolution: up to 1920x1080p 60 FPS.
- Supports WINDOWS ,LINUX,MAC OS.
- Support SRT/ RTSP/ RTP/ RTMP/ RTMPS/HTTP/ ONVIF/ HLS / UDP Unicast and Multicast protocol.
- Encoding level: 1, 2, 3, 4 and 5 (the higher the level, the larger of the code flow fluctuation ratio ).
- Coding Standard: H.264 Base line profile/ main profile/high profile, H.265 main profile.
- Audio: MP3, AAC, G.711, sampling rate: 32000,44100, etc, encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K etc.
- Video bitrate Control: CBR / VBR 16KBIT / S ~ 12MBIT / S.
- Video packaging: A mode: FFMPEG, B mode: VLC.
- Transmission: TCP, UDP, 100M/ 1000M (RJ45 Duplex network port).
- Support WEB access in English, passwords change, WAN remote management (WEB).
- Support Text/ image OSD, images superimposing.
- Adjustable coordinates: 1920×1080; the font size: 8 to 72.
- Supports automatically obtain IP (DHCP), support One-key recovery, upgrade and remote maintenance.
- Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering.
- Support build-in or external audio input, support left and right sound channel.
Specification
Product model |
L1 H.265 HDMI Encoder |
Input |
1Channel HDMI input, 1 Channel line in audio |
Output |
1 channel IP signal output,HDMI loop out |
USB/TF card |
128G(maximum ) |
Video |
Input resolution |
Up to 1920x1080p 60FPS |
Coding standard |
H.265/ H.264 |
Coding level |
H.265 MAIN PROFILE
H.264 BASELINE PROFILE
H.264 MAIN PROFILE
H.264 HIGH PROFILE |
Encoded size |
640*360~1920*1080 60fps(Maximum) |
Video bit rate |
Rate control: CBR/VBR 16KBIT/S~12MBIT/S |
Video frame rate |
5- 60 fps |
OSD |
Text, Image |
Audio |
Input selection |
1 channel HDMI, 1 channel 3.5MM line-in audio |
Audio coding |
AAC/G.711 |
Audio bit rate |
64Kb/s~384Kb/s |
Sampling rate |
32000、44100,48000 etc |
IP output |
1 RJ 100M / 1000M adaptive Ethernet port, 4-stream( H.265/264 TS stream) |
System |
Network protocol |
SRT,HTTP, RTSP, RTMP,RTMPS, ONVIF, HLS, UDP ,multicast, unicast |
Configuration management |
User interface, remote upgrade,multi-one management platform |
|
Power supply |
12V~2A |
power consumption |
<5W |
Size |
150mm * 102mm * 28mm(L*W*H) |
Operating temperature |
-20℃+ 60℃ |
Working humidity |
<90%,Non-condensing |
USB |
Support |
Weight |
0.8KG |
Haiwei reserves the right to adjust the product parameters, if you have any questions please contact us to check |
