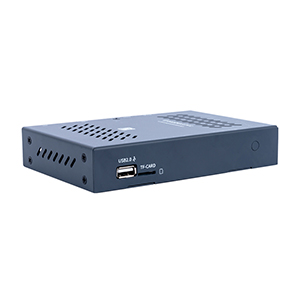

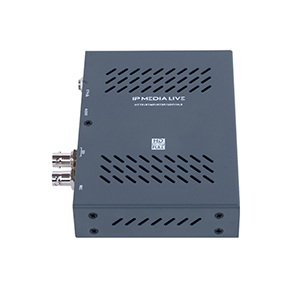

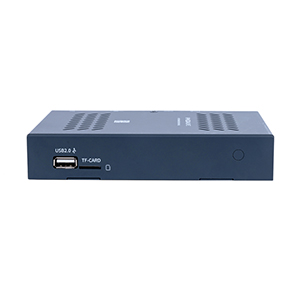

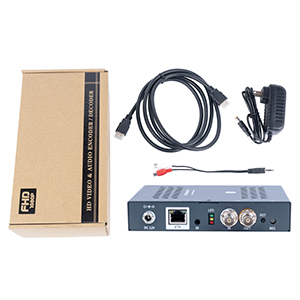

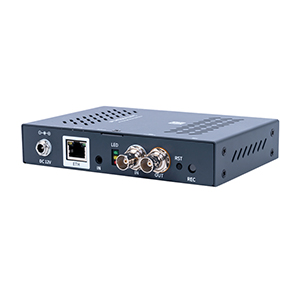

H5610S H.265 SDI encoder
H5610S H.265 SDI encoder
H5610S H.265 SDI encoder
H5610S H.265 SDI encoder
H5610S H.265 SDI encoder
H5610S H.265 SDI encoder
H5610S H.265 SDI encoder

H5610S H.265 SDI encoder

Want create site? Find Free WordPress Themes and plugins. Product Description 1-channel SDI input, 1-channel audio input,1-channel SDI Loop out 4 streams output.H.265/H.264 format, Audio: MP3, AAC, G.711 format. Configuration could be freely a

Input : 1 channel SDI input,1 channel 3.5 audio input

Output : 1 channel IP signal output, 1 channel SDI loop out

Input/Output resolution : Up to 1920x1080p 60FPS

Coding standard : H.265/H.264

Audio coding : AAC/MP3/MP2/G711

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES

Product Description

1-channel SDI input, 1-channel audio input,1-channel SDI Loop out

4 streams output.H.265/H.264 format, Audio: MP3, AAC, G.711 format.

Configuration could be freely adjusted according to the need.

Support HTTP / RTSP / RTP/ TCP / RTMP / RTMPS /FLV/ UDP / ONVIF / HLS /SRT /NDI(optional) protocols.

Power:12V-2A, POE optional

Red indicator: power. Yellow: Network Green: Streaming status.



  • The embedded hardware encoding
  • Support H.265/H.264 BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE
  • Rate Control CBR / VBR 16KBIT / S ~ 20MBIT / S
  • The network interface uses a 100M/1000M full duplex mode
  • Support NDI(optional)SRT/RTSP/RTP/RTMP/RTMPS/HTTP/UDP/ONVIF/HLS unicast and multicast protocol .(RTMP support adding users and passwords changing) Support DHCP protocol, ONVIF protocol, support Blue-ray
  • Compatible with Wowza/FMS/ZTE/Youtube /RED5/streaming media server etc, work in with streaming media server to push the streaming , to achieve a live streaming
  • Video packaging: A mode: FFMPEG, B mode: VLC
  • Support streaming resolution output settings custom
  • Transmission: TCP, UDP, 100M/1000M (RJ45 Duplex network port)
  • Support streaming add watermark (OSD), XY axis, the font can be set;
  • Support WEB access in English, passwords changing, WAN remote management (WEB)
  • Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance
  • Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
  • Support build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individually
  • Support coding without video signal;
  • Complete the setting effect immediately, don’t need to restart
  • Support one-key recovery of the default configuration
  • Support set-top box decoder
  • The low power consumption design

Specification

Product model H5610S SDI 1080 60fps Encoder
Input 1 channel SDI input,1 channel 3.5 audio input
Output 1 channel IP signal output, 1 channel SDI loop out
Video Input/Output resolution Up to 1920x1080p 60FPS
Coding standard H.265/H.264
Coding level H.265 MAIN PROFILE



H.264 BASELINE PROFILE

H.264 MAIN PROFILE

H.264 HIGH PROFILE

Encoded size 640*360~1920*1080
Video bit rate Rate control: CBR/VBR 16KBIT/S~20MBIT/S
Video frame rate 5- 60 fps
OSD Text, Image
Audio Input selection 1 channel embedded audio SDI, 1 channel 3.5MM independent audio support audio gain
Audio coding AAC/MP3/MP2/G711
Audio bit rate 64Kb/s~384Kb/s
Sampling rate 32000、44100 ,48000etc
IP



output

1 RJ 100M / 1000M adaptive Ethernet port, 4-streams( H.265/264 TS stream)
System Network protocol NDI(optional)SRT,HTTP, RTSP, RTMP,RTMPS, ONVIF, HLS, UDP multicast, unicast
Configuration management User interface, remote upgrade, Andriod APP, multi-one management platform
The common use Power supply 12V~2A,POE optional
power consumption <5W
Size 119mm * 102mm * 42mm(length*width*height)
Operating temperature -20℃~+ 60℃
Working humidity <90%,Non-condensing
Weight 0.3KG
Our company reserves the right to adjust the product parameters, if you have any questions please contact us to check
