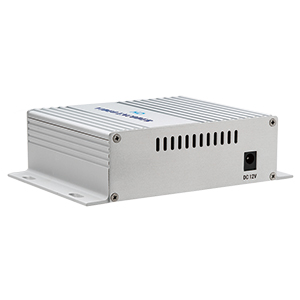

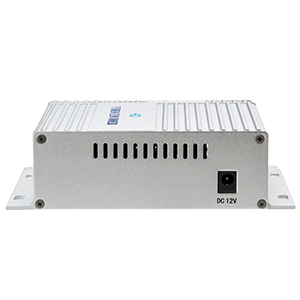

H5110A H.265 HDMI CVBS encoder

Product Description

1-channel HD HDMI input, 1-channel AV input,1-channel audio input.

Dual streams output.H.264 format, Audio: MP3, AAC, G.711 format.

Configuration could be freely adjusted according to the need.

Support HTTP / RTSP / RTP/ TCP / RTMP / FLV/ UDP / ONVIF / HLS protocols.

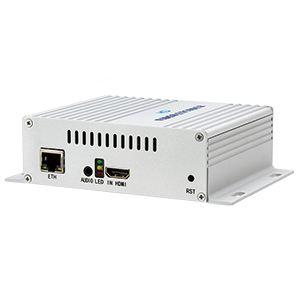

Red indicator: power. Yellow: Streaming status. Green: Network

Key features

•Aircraft-grade aluminum technology housing.
•Support resolution 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p /640*480i (customize)
•Support HDMI input ,audio interface 3.5MM , ,Audio interface support CVBS input) H.265 The latest architecture
•Supports WINDOWS, LINUX And MAC os
•Support multiple devices display on a computer at the same time
•Support RTSP/RTP/RTMP/HTTP/UDP/ONVIF/HLS unicast and multicast protocol (RTMP support adding users and changing passwords),
•Support Main TS stream and the sub TS stream use in different network protocols for transmission,H.264/H.265
•Encoding level: 1, 2, 3, 4 and 5 (the higher the level ,the larger of the code flow fluctuation ratio )
•Coding Standards BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE, H.265:audio MP3, AAC, sampling rate: 32000,44100, etc., encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K
•Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
•Video packaging: A mode: FFMPEG, B mode: VLC
•Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)
•Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)
•Support OSD in Chinese/ English, support OSD rolling, images superimposing, support adding LOGO ,Characters and symbols;
Adjustable coordinates: 1920×1080; The font size resolution: 8 to 72.
•Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance
•Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
•Support build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individually
•Support coding without video signal;
•Complete the setting effect immediately, don’t need to restart
•Support one-key recovery of the default configuration
•Support set-top box decoder
•The low power consumption design
