H5110 H.265 HDMI encoder

Product Description

1-channel HD HDMI input, 1-channel audio input.

Dual streams output.H.265/H.264 format, Audio: MP3, AAC, G.711 format.

Configuration could be freely adjusted according to the need.

Support HTTP / RTSP / RTP/ TCP / RTMP / FLV/ UDP / ONVIF / HLS protocols.

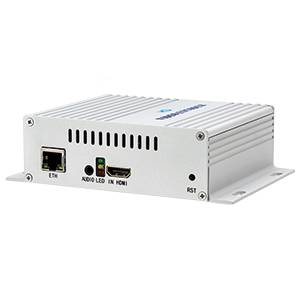

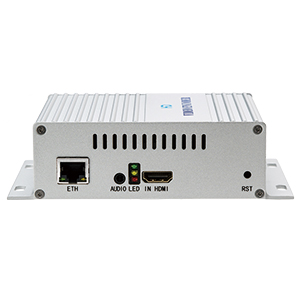

Red indicator: power. Yellow: Streaming status. Green: Network

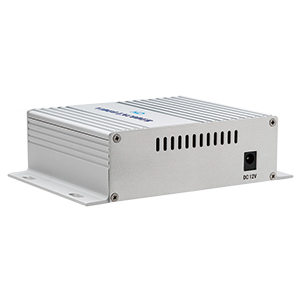

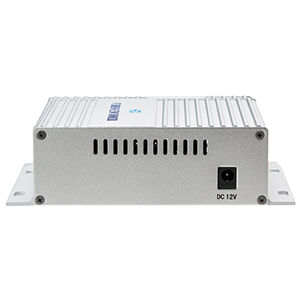

• Aircraft-grade aluminum technology housing.
• Support resolution 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p /640*480i (customize)
• Support HDMI input H.265 The latest architecture
• Supports WINDOWS/ LINUX/MAC os
• Support multiple devices display on a computer at the same time
• Support RTSP/RTP/RTMP/HTTP/UDP/ONVIF/HLS unicast and multicast protocol (RTMP support adding users and changing passwords),
• Support Main TS stream and the sub TS stream  use in different network protocols for transmission,H.264/H.265
• Encoding level: 1, 2, 3, 4 and 5 (the higher the level ,the larger of the code flow fluctuation ratio )
• Coding Standards BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE, H.265:audio MP3, AAC, sampling rate: 32000,44100, etc., encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K
• Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
• Video packaging: A mode: FFMPEG, B mode: VLC
• Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)
• Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)
• Support OSD in Chinese/ English, support OSD rolling, images superimposing, support adding LOGO ,Characters and symbols;Adjustable coordinates: 1920×1080; The font size resolution: 8 to 72.
• Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance
• Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
• Support build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individually
• Support coding without video signal;
• Complete the setting effect immediately, don’t need to restart
• Support one-key recovery of the default configuration
• Support set-top box decoder
• The low power consumption design

Specification
