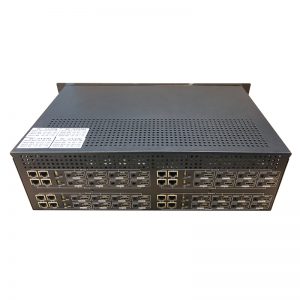

Y5320L Dual Ethernet 32 channel HDMI Encoder
Y5320L Dual Ethernet 32 channel HDMI Encoder

Y5320L Dual Ethernet 32 channel HDMI Encoder

Want create site? Find Free WordPress Themes and plugins. U5320 Dual Ethernet 32 channel HDMI Encoder   Product Description 32-channel HDMI input, 32-channel audio input. Dual streams output H.264 AVC format, Audio: MP2,MP3, AA

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES

U5320 Dual Ethernet 32 channel HDMI Encoder



Product Description

  • 32-channel HDMI input, 32-channel audio input.
  • Dual streams output H.264 AVC format, Audio: MP2,MP3, AAC, G.711 format.
  • Configuration could be freely adjusted according to the need.
  • Support HTTP / RTSP / RTP/ TCP / RTMP / RTMPS / UDP / ONVIF/HLS protocols.
  • Dual ethernet port :data port and network management port.
  • Red indicator: power. Yellow: Streaming status. Green: Network



Key features

  1. Resolution:1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i (customization available)
  2. Support RTSP/ TCP/ RTMP/ HTTP/ ONVIF/ RTMPS / UDP /HLS unicast and multicast protocols
  3. Support Main TS stream and the sub TS stream  use in different network protocols for transmission
  4. Encoding level: 1, 2, 3, 4 and 5 (higher the level, larger of the code flow fluctuation ratio )
  5. Coding Standard: Base line profile/ main profile/high profile,.Audio: MP3, AAC, G.711, sampling rate: 32000,44100,48000 etc, encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K
  6. Video bitrate Control: CBR / VBR 16KBIT / S ~ 12MBIT / S
  7. Video packaging: FFMPEG
  8. Transmission: TCP, UDP, 100M for configuration/ 1000M for transmission

(RJ45 Duplex network port)

  1. Support WEB access in Chinese/ English, passwords change, WAN remote management (WEB)
  2. Support Text/ image OSD, images superimposing.
  3. Supports automatically obtain IP (DHCP), support One-key recovery, upgrade and remote maintenance.
  4. Support build-in or external audio input, support left and right sound channel, Support audio gain, turn volume individually.
  5. Support encoding without video signal;
  6. Take effect immediately when applied the settings, don’t need to restart.
  7. Support one-key recovery to default setting.

Product model

Y5320L 32*HDMI FHD Encoder
Input 32 Channel HDMI input, 32 Channel audio input
Output 4 channel IP output, 4 network management ports
Video Input resolution Up to 1920x1080p 60FPS
Coding standard H.264
Coding level H.264 BASELINE PROFILE
H.264 MAIN PROFILE
H.264 HIGH PROFILE
Encoded size 640*360~1920*1080
Video bit rate Rate control: CBR/VBR 16KBIT/S~12MBIT/S
Video frame rate 5- 60 fps
OSD Text, Image
Audio Input selection 32 channel embedded audio hdmi, 32 channel 3.5MM independent audio, support audio gain
Audio coding AAC/ MP2/MP3/ G.711
Audio bit rate 64Kb/s~384Kb/s
Sampling rate 32000、44100,48000 etc
IP output 1000M Ethernet for transmission, 1RJ 100M port for configuration



Dual bitrate standard TS stream.

System Network protocol HTTP, RTSP, RTMP, ONVIF, UDP,RTMPS ,HLS multicast, unicast
Configuration management User interface, remote upgrade, Andriod APP, multi-one management platform
  Power supply AC110~240V
power consumption 28W
Size 530mm * 330mm *220mm(length*width*height)
Operating temperature -20℃+ 60℃
Working humidity <90%,Non-condensing
Weight 7.5KG
Haiwei reserves the right to adjust the product parameters, if you have any questions please contact us to check
