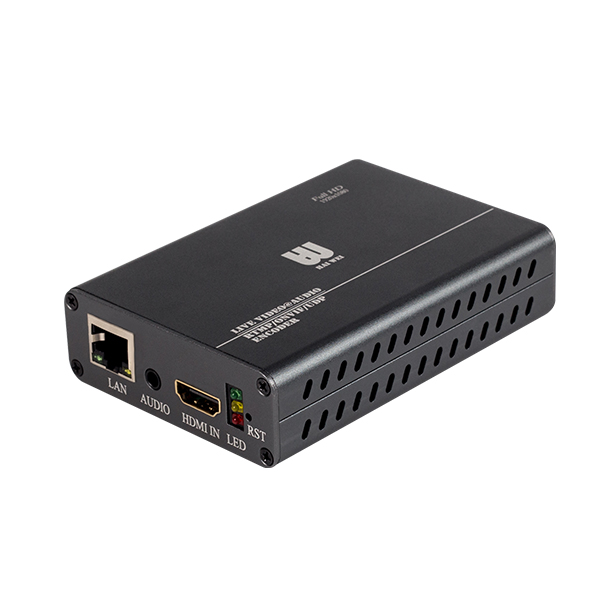

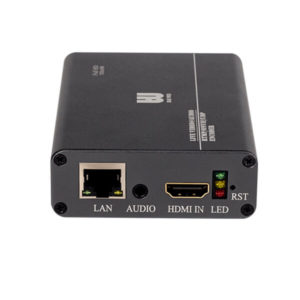

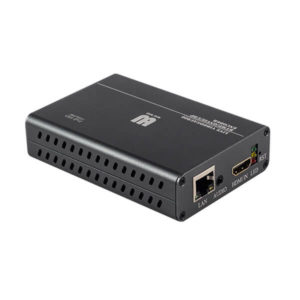

P7 H.264 HDMI encoder
P7 H.264 HDMI encoder
P7 H.264 HDMI encoder
P7 H.264 HDMI encoder
P7 H.264 HDMI encoder

P7 H.264 HDMI encoder

Want create site? Find Free WordPress Themes and plugins.                 Product Description 1-channel HD HDMI input, 1-channel audio input. Dual streams output.H.264 format, Audio: MP3, AAC, G.711 f

Protocol : HTTP, RTSP, RTP, TCP, RTMP, HLS, UDP multicast, unicast

Coding standard : H.264

Encoded size : Up to 1920*1080 60FPS

Video bit rate : 5-60 fps

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES





Product Description

1-channel HD HDMI input, 1-channel audio input.

Dual streams output.H.264 format, Audio: MP3, AAC, G.711 format.

Configuration could be freely adjusted according to the need.

Support HTTP / RTSP / RTP/ TCP / RTMP / FLV/ UDP / ONVIF / HLS protocols.

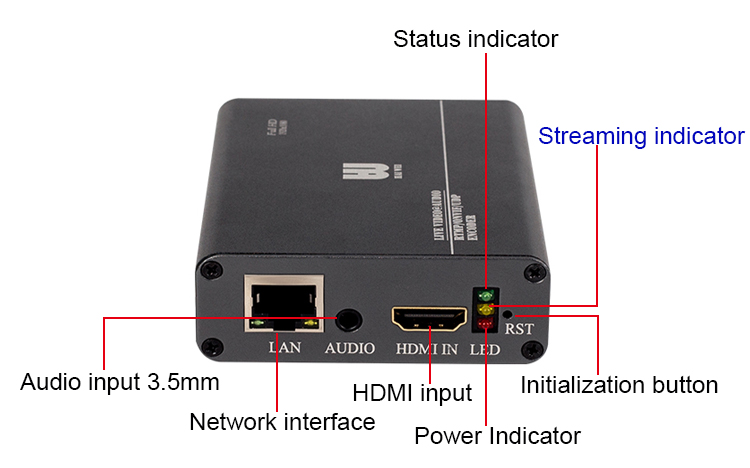

Red indicator: power. Yellow: Streaming status. Green: Network



◆supports resolutions 1920x1080p/1920x1080i/1280x720p /720*576i/720*576p/640*480i etc(can be customized)

◆support HDMI input, made up by high-grade aviation-grade aluminum alloy material.

◆supports WINDOWS, LINUX etc

◆Support multiple devices display on a computer simultaneously

◆upport RTSP/RTMP/HTTP/UDP/ONVIF unicast and multicast protocol (RTMP support adding users and changing passwords)

◆Support Main TS stream and the sub TS stream  use in different network protocols for transmission)

◆Coding level BASELINE PROFILE / MAIN PROFILE/ HIGH PROFILE,  MP3,AAC format. Sampling rate:32000、44100 etc. Encoded audio bit-rate: 48K ,64K ,96K ,128K ,160K,192K ,256K.

◆Video bit rate: CBR/VBR 16KBIT/S~12MBIT/S

◆Video packaging mode:A:FFMPEG,B:VLC

◆Transmission :TCP,UDP,100M(RJ45 duplex network port)

◆Support Web pages in English and Chinese access, change passwords, support for remote management of the Internet (WEB)

◆Support English and Chinese OSD scroll,Image overlay, add private LOGO or symbol in the display; Coordinates:1920×1080; Adjustable font size:8-72

◆Support DHCP obtain IP automatically, support one-key to restore configuration, version upgrades and remote maintenance.

◆Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering

◆Supports build-in or external left and right sound channel

◆supports encoding without video signal

◆Set to take effect immediately, without restart

◆supports one-key to restore default configuration

◆Supports set-top box decoder

◆Low Power consumption Design

Specification

Model



P7 HDMI HD encoder



Input 1Channel HDMI input, 1 Channel line in audio
 Output 1channel IP signal output
Video Input resolution Up to 1920x1080p 60FPS, standard HDMI resolution
Coding standard H.264
Coding level    H.264 BASELINE PROFILE



H.264 MAIN PROFILE

H.264 HIGH PROFILE

Encoded size 640*360~1920*1080(can be customized)
Video bit rate CBR/VBR: 16KBIT/S~12MBIT/S(adjustable )
Video frame rate 5- 60 fps
OSD Text , Image
Audio Input 1channel HDMI embedded audio,1tunnel 3.5 independent audio input
Audio coding AAC/MP3/G.711
Audio bit rate 64Kb/s~384Kb/s
Sampling rate 32000、44100、48000 etc
IP



Output

1 RJ 100M / 1000M adaptive Ethernet port, dual-stream( H.265/264 TS stream)
System Network protocol HTTP, RTSP, RTMP, ONVIF, HLS, UDP multicast, unicast
Configuration management User interface, remote upgrade, Andriod APP, multi-one management platform

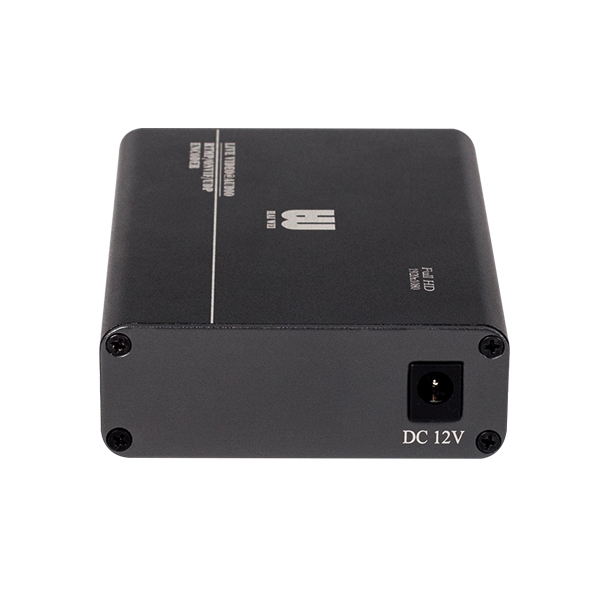

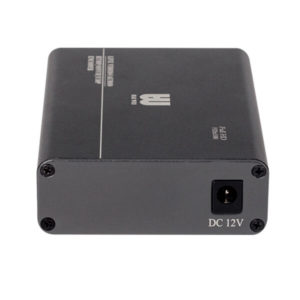

  Power supply 12V~2A
consumption 5W
NET size 100mm x 70mm x 25mm
Net Weight 0.18KG
Package size 170mm x 210mm x 80mm
Package weight 0.3KG
Operating temperature -20℃+ 60℃
Working humidity <90%,Non-condensing
Our company reserves the right to adjust the product parameters, if you have any questions please contact us to check
