Product Description
4-channel HD HDMI input, 4-channel audio input.
Dual streams output H.264 format, Audio: MP3, AAC, G.711 format.
Configuration could be freely adjusted according to the need.
Support HTTP / RTSP / RTP/ TCP / RTMP / FLV/ UDP / ONVIF / HLS protocols.

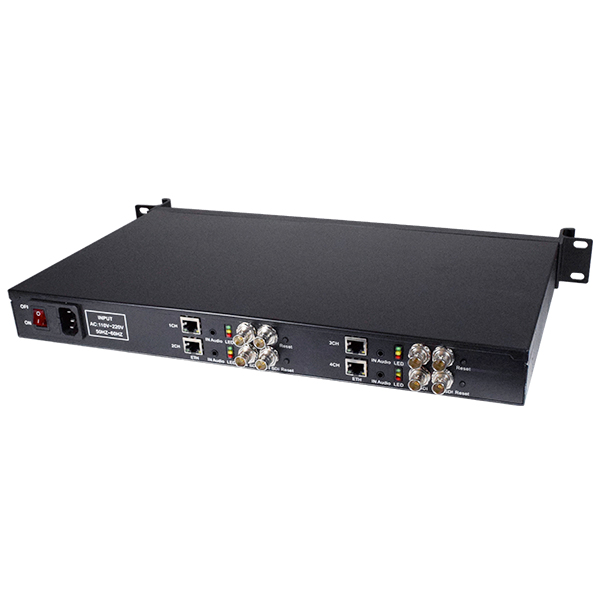

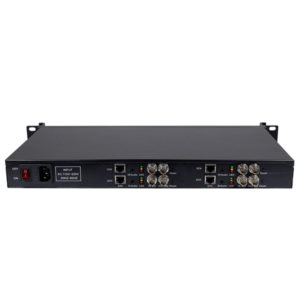

Red indicator: power. Yellow: Network Green:Streaming status.
•Embedded hardware coding
•Support 4 channel HD/SD SDI input. SDI loop out. 4-channel 3.5MM independent audio input

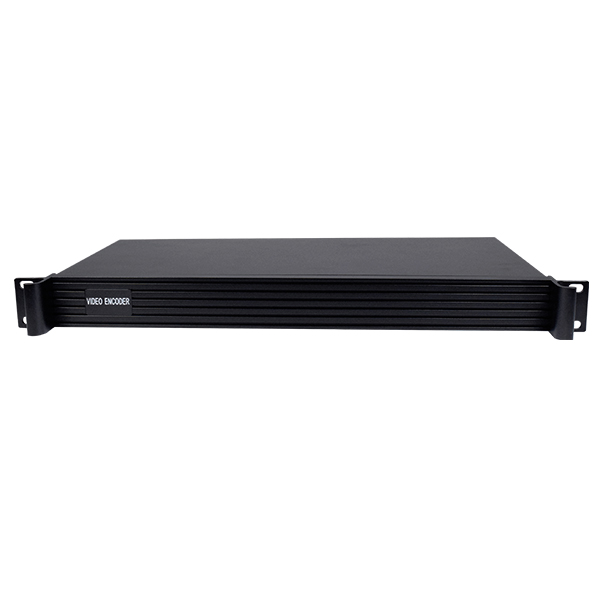

•Standard 1U rack
• Support H.264 BASELINE PROFILE / MAIN PROFILE/ HIGH PROFILE
• Support multiple devices display on a computer at the same time
• Support network directly connected, don’t need match HD collection card.
• Network interface : 1000M full duplex mode
•Support the independent external audio input
•Support SDI input and support up to 720p, 1080p HD video input
• Support RTSP/RTP/RTMP/HTTP/UDP/ONVIF/HLS unicast and multicast protocol
(RTMP support adding users and passwords changing) Support DHCP protocol, ONVIF protocol, support HD Blue-ray
•Compatible with Wowza/FMS/RED5 streaming media server etc, work in with streaming media server to push the streaming , to achieve a live streaming
• Support Main TS stream and the sub TS stream use in different network protocols for transmission (Multi-rate multi-protocol support)
• Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
• Video packaging: A mode: FFMPEG, B mode: VLC
• Support streaming resolution output settings custom
• Support streaming add watermark (OSD), XY axis, the font can be set;
• Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)
•Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)
• Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance
•Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
• Support build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individually
• Support coding without video signal; Complete the setting effect immediately, don’t need to restart
• Support one-key recovery of the default configuration
• Support set-top box decoder
• The low power consumption design
Specification
Product model |
H3614 1U 4-channel SDI HD encoder |
Input |
4-channel SDI input,4-channel 3.5MM independent audio input |
Output |
4-channel SDI loop out and IP signal output |
Video |
Input resolution |
1920x1080p/1920x1080i/1280x720p/720*576i/640*480i etc. |
Coding standard |
H.264 |
Coding level |
H.264 BASELINE PROFILE
H.264 MAIN PROFILE
H.264 HIGH PROFILE
|
Encoded size
|
640*360~1920*1080 |
Video bit rate |
Rate control: CBR/VBR 16KBIT/S~12MBIT/S |
Video frame rate |
5-60 FPS |
OSD |
Text, Image |
Audio |
Input selection |
4 channel embedded audio HDMI,
4 -channel 3.5MM independent audio
(Support audio gain)
|
Audio coding |
AAC/MP3/G711 |
Audio bit rate |
64Kb/s~384Kb/s |
Sampling rate |
32000、44100,48000 etc |
IP
output
|
4 RJ 100M / 1000M adaptive Ethernet port, dual-stream( H.265/264 TS stream) |
System |
Network protocol |
Supports HTTP, RTSP, RTMP, UDP, ONVIF,FLV,HLS multicast, unicast |
Configuration management |
User interface, remote upgrade, Andriod /IOS APP, multiple management platform |
The common use |
Power supply |
AC 110~220V |
power consumption |
<100W |
Size |
430mm * 250mm *45mm(length*width*height) |
Operating temperature |
-20℃+ 60℃ |
Working humidity |
<90%,Non-condensing |
Weight |
3KG |
Our company reserves the right to adjust the product parameters, if you have any questions please contact us to check |
