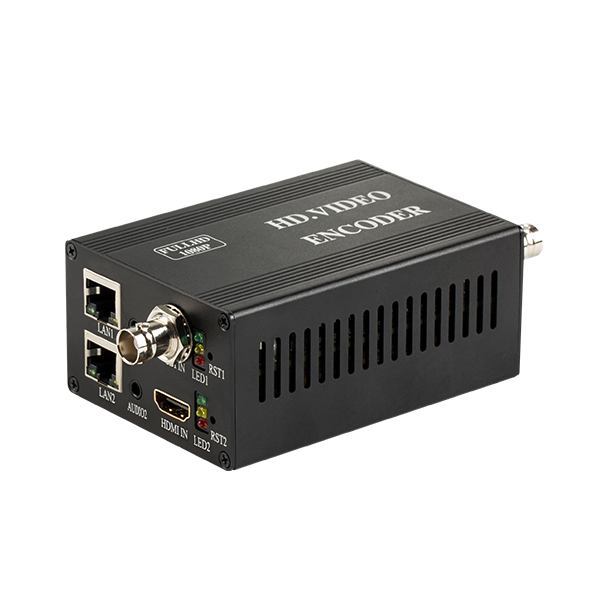

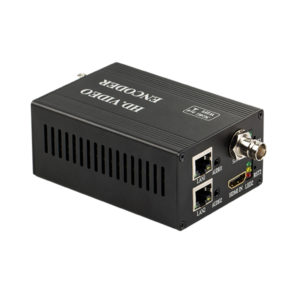

H3418 H.264 HDMI SDI VGA YPBPR AV Encoder
H3418 H.264 HDMI SDI VGA YPBPR AV Encoder
H3418 H.264 HDMI SDI VGA YPBPR AV Encoder
H3418 H.264 HDMI SDI VGA YPBPR AV Encoder
H3418 H.264 HDMI SDI VGA YPBPR AV Encoder

H3418 H.264 HDMI SDI VGA YPBPR AV Encoder

Want create site? Find Free WordPress Themes and plugins.   Product Description 1-channel HD HDMI/VGA/ CVBS/YPBPR/SDI  input,1-channel audio input. Dual streams output H.264 format, Audio: MP3, AAC, G.711 format. Configura

Protocol : HTTP, RTSP, RTP, TCP, RTMP, HLS, UDP multicast, unicast

Coding standard : H.265/H.264

Encoded size : Up to 1920*1080 60FPS

Video bit rate : 5-60 fps

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES



Product Description

1-channel HD HDMI/VGA/ CVBS/YPBPR/SDI  input,1-channel audio input.

Dual streams output H.264 format, Audio: MP3, AAC, G.711 format.

Configuration could be freely adjusted according to the need.

Support HTTP / RTSP / RTP/ TCP / RTMP / FLV/ UDP / ONVIF / HLS protocols.

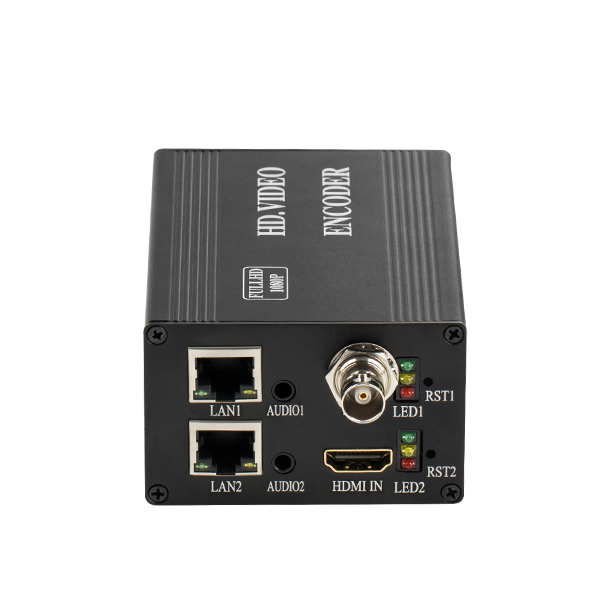

Red indicator: power. Yellow: Streaming status. Green: Network



*MINI embedded hardware, SDI can be collected and output simultaneously with other interface

*Support H.264BASELINE PROFILE / MAIN PROFILE/ HIGH PROFILE

*Support multiple devices display on a computer simultaneously

*Support network directly connected without  HD collection card.

*Bitrate CBR/VBR 16KBIT/S~12MBIT/S

*Network interface : 1000M full duplex mode

*1X HDMI/VGA/ CVBS/YPBPR/SDI intput(SD ring-out,single Ip output, 2x IP                                      output simultaneously)

*Support OSD,OSD scroll,Image overlay

*Support external independent audio input, audio gain, can be individually adjust the volume level

*Support encoding without video signal

*Set to take effect immediately, without restart

*support 720P,1080P output

*Support RTSP/RTP/RTMP/HTTP/UDP/HLS unicast and multicast protocol (RTMP support adding users and changing passwords), Support DHCP/,ONVIF protocol, support Blue ray HD

*Compatible with Wowza/FMS/RED5 streaming media server, work in with streaming media server to push the streaming , to achieve a live streaming

*Support Main TS stream and the sub TS stream  use in different network protocols for transmission (Multi-rate multi-protocol support)

*video packaging mode:A:FFMPEG,B:VLC

*Supports stream resolution custom output settings

*transmission :TCP,UDP,1000M(RJ45 duplex network port)

*Support watermark function (OSD), XY axis, font can be set

*Support Web pages in English and English access, change passwords, support for remote management of the Internet (WEB)

*Support DHCP obtain IP automatically, support one-key to restore configuration, version upgrades and remote maintenance.

*Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering

*Support build-in or external left and right sound channel

*Support set-top box decoder

*Low Power consumption Design

Specification

Mode



H3418(full protocols) HDMI/VGA/ CVBS/YPBPR/SDI HD encoder

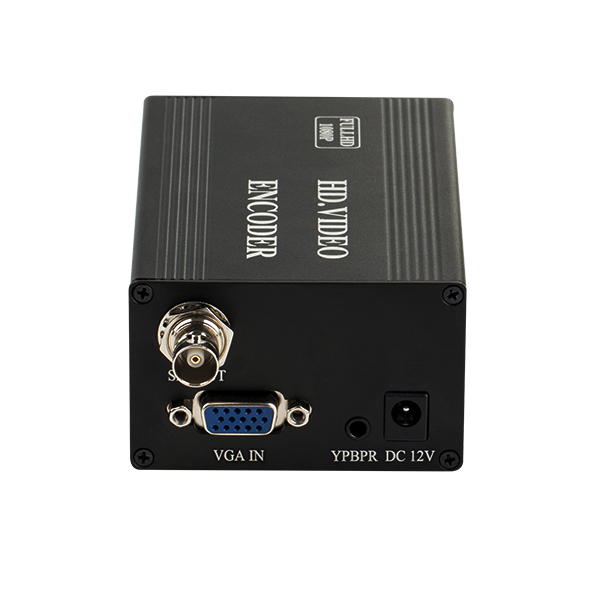

Input 1x HDMI/VGA/ CVBS/YPBPR/SDI signal input
Output 2x IP signal output,1x SDI ring-out
Video Input resolution Up to 1920x1080p 60FPS




Coding standard

H.264/H.265
Coding level     H.264 BASELINE PROFILE



H.264 MAIN PROFILE

H.264 HIGH PROFILE





Encoded size

640*360~1920*1080
Video bit rate CBR/VBR, 16KBIT/S~12MBIT/S
Video frame rate 5- 60 fps
OSD Text, Image
Audio Input selection 1x embedded HDMI video interface,1x 3.5MM  independent audio Support audio gain
Audio coding AAC/MP3/G711
Audio bit rate 64Kb/s~384Kb/s
Sampling rate 32000、44100、48000 etc
IP



Output

2pcs RJ 100M / 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol
System Network protocol HTTP, RTSP, RTMP, UDP, HLS multicast, unicast
Configuration management User interface, remote upgrade, Andriod APP, multi-one management platform
Common attributes Power supply 220V
power consumption 12W
Size 430mm * 250mm *45mm(length*width*height)
Operating temperature -20℃+ 60℃
Working humidity <90%,Non-condensing
Weight 0.4KG
Our company reserves the right to adjust the product parameters, if you have any questions please contact us to check
