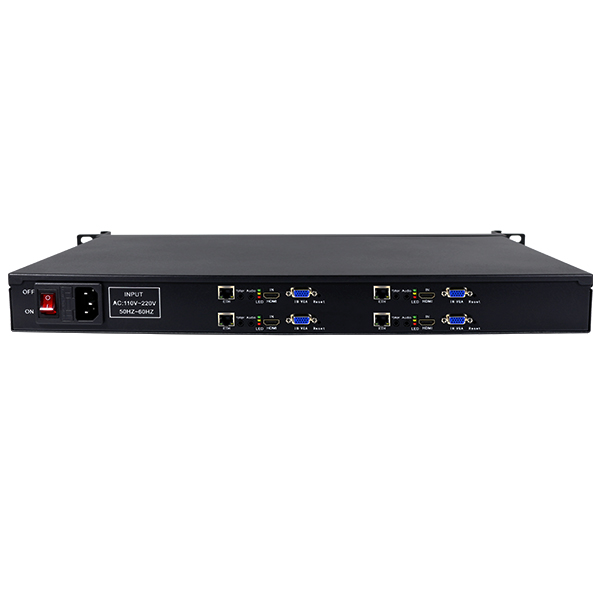

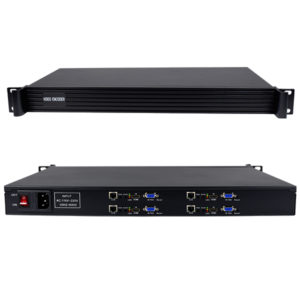

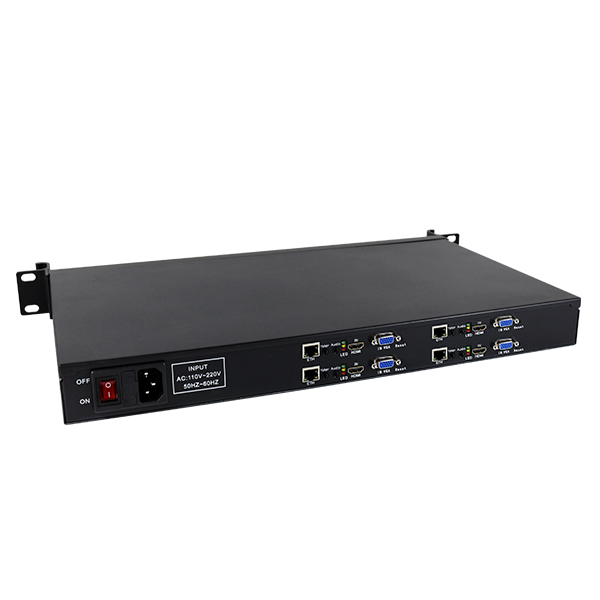

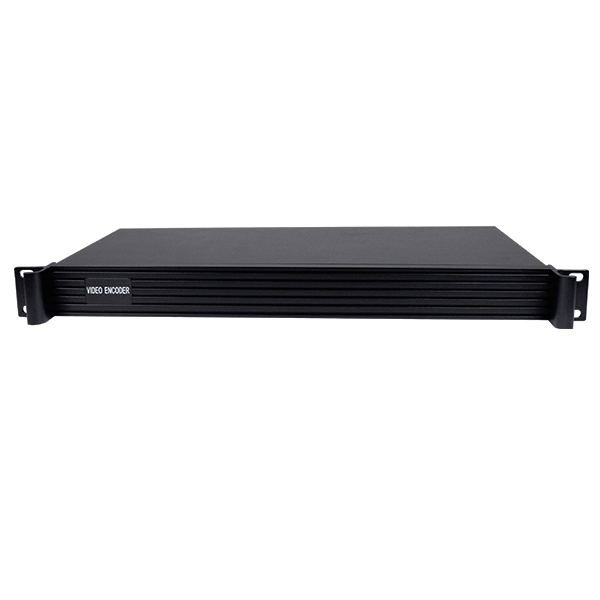

H3214 4channel HDMI VGA encoder
H3214 4channel HDMI VGA encoder
H3214 4channel HDMI VGA encoder
H3214 4channel HDMI VGA encoder
H3214 4channel HDMI VGA encoder

H3214 4channel HDMI VGA encoder

Want create site? Find Free WordPress Themes and plugins.   Product Description 4-channel HD HDMI/VGA input, 4-channel audio input. Dual streams output H.264 format, Audio: MP3, AAC, G.711 format. Configuration could be freely

Protocol : HTTP, RTSP, RTP, TCP, RTMP, HLS, UDP multicast, unicast

Coding standard : H.264

Encoded size : Up to 1920*1080 60FPS

Video bit rate : 5-60 fps

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES



Product Description

4-channel HD HDMI/VGA input, 4-channel audio input.

Dual streams output H.264 format, Audio: MP3, AAC, G.711 format.

Configuration could be freely adjusted according to the need.

Support HTTP / RTSP / RTP/ TCP / RTMP / FLV/ UDP / ONVIF / HLS protocols.

Red indicator: power. Yellow: Streaming status. Green: Network



  • Resolution: up to 1920x1080p 60 FPS
  • Support HDMI / CVBS / VGA / YPBPR input
  • Supports WINDOWS and LINUX,MAC OS
  • Support multiple devices display on a computer at the same time
  • Support RTSP/RTP/RTMP/HTTP/UDP/ONVIF/ HLS unicast and multicast protocol (RTMP support adding users and changing passwords)
  • Support Main TS stream and the sub TS stream  use in different network protocols for transmission (Multi-rate multi-protocol support)
  • Coding Standards BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE, audio MP3, AAC, sampling rate: 32000,44100,48000 etc., encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K
  • Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
  • Video packaging: A mode: FFMPEG, B mode: VLC
  • Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)
  • Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)
  • Support OSD in Chinese/ English, support OSD rolling, images superimposing, support adding LOGO ,Characters and symbols;Adjustable coordinates: 1920×1080; The font size resolution: 8 to 72.
  • Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance
  • Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
  • Support build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individually
  • Support coding without video signal;
  • Complete the setting effect immediately, don’t need to restart
  • Support one-key recovery of the default configuration
  • Support set-top box decoder
  • The low power consumption design



Specification

Product model H3214 HDMI+VGA HD encoder
Input 4-channel HDMI / CVBS / VGA / YPBPR input,



4-channel 3.5MM audio input

Output 4 channel IP signal output
Video Input resolution up to 1920x1080p 60 FPS
Coding standard H.264
Coding level     H.264 BASELINE PROFILE



H.264 MAIN PROFILE

H.264 HIGH PROFILE





Encoded size

640*360~1920*1080
Video bit rate Rate control: CBR/VBR 16KBIT/S~12MBIT/S
Video frame rate 5-60 FPS
OSD Text, Image
Audio Input selection 4 channel embedded audio hdmi, 4 channel 3.5MM independent audio  Support audio gain
Audio coding AAC/MP3/G711
Audio bit rate 64Kb/s~384Kb/s
Sampling rate 32000、44100 ,48000etc
IP



output

4 RJ 100M / 1000M adaptive Ethernet port, dual-stream( H.265/264 TS stream)
System Network protocol Supports HTTP, RTSP, RTMP, UDP, ONVIF,FLV,HLS multicast, unicast
Configuration management User interface, remote upgrade, Andriod /IOS APP, multiple management platform
The common use Power supply 110~220V
power consumption 12W
Size 430mm * 250mm *45mm(length*width*height)
Operating temperature -20℃+ 60℃
Working humidity <90%,Non-condensing
Weight 3KG
Haiwei reserves the right to adjust the product parameters, if you have any questions please contact us to check
