Product Description

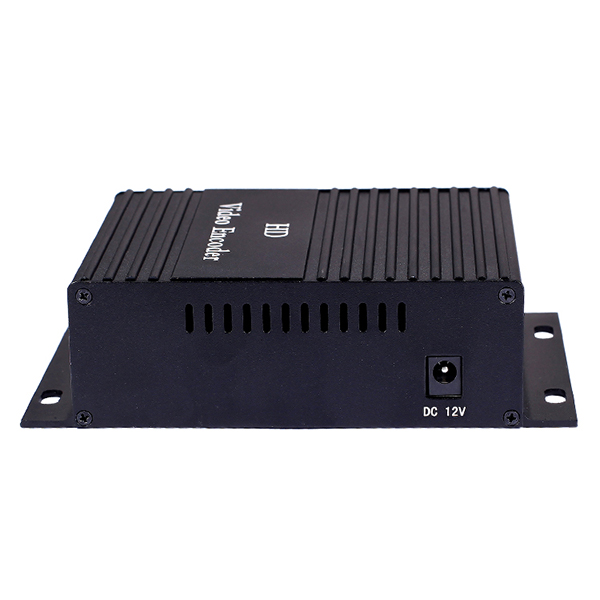

H3210 HD HDMI Encoder is a professional audio and video encoding products, which support 1 channel HDMI / VGA / CVBS / YPBPR audio and video capture function, dual streaming H.264 encoded output format, audio MP3, AAC formats. Can be freely adjusted according to the need. The device is highly integrated, cost-effective. Support HTTP / RTSP / RTP / RTMP / UDP/ ONVIF/ HLS transport protocols. Support for external audio input.
It is easy to install, plug-play, no need to disassemble the machines, and there is no computer hardware compatibility issues and no need HD capture card.
Support Android APP and low latency SDK.
Key features
- Support for 1920×1080 / 1680×1050 / 1280×720 / 1600×1200 / 960×540 / 720 * 576/704 * 576 etc; 640 * 360 to 1920 * 1080 (customized)
- Support HDMI / CVBS / VGA / YPBPR input
- Supports WINDOWS and LINUX etc
- Support multiple devices display on a computer at the same time
- Support RTSP/RTP/RTMP/HTTP/UDP/ONVIF/HLS unicast and multicast protocol (RTMP support adding users and changing passwords)
- Support Main TS stream and the sub TS stream use in different network protocols for transmission (Multi-rate multi-protocol support)
- Coding Standards BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE, audio MP3, AAC, sampling rate: 32000,44100,48000 etc., encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K
- Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
- Video packaging: A mode: FFMPEG, B mode: VLC
- Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)
- Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)
- Support OSD in Chinese/ English, support OSD rolling, images superimposing, support adding LOGO ,Characters and symbols;
Adjustable coordinates: 1920×1080; The font size resolution: 8 to 72.
- Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance
- Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
- Support build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individually
- Support coding without video signal;
- Complete the setting effect immediately, don’t need to restart
- Support one-key recovery of the default configuration
- Support set-top box decoder
- The low power consumption design
Specification
Product model |
H3210 HD encoder |
Input |

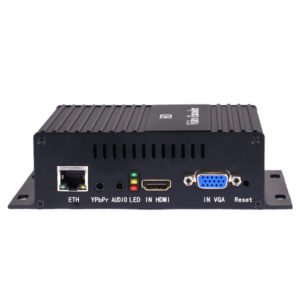

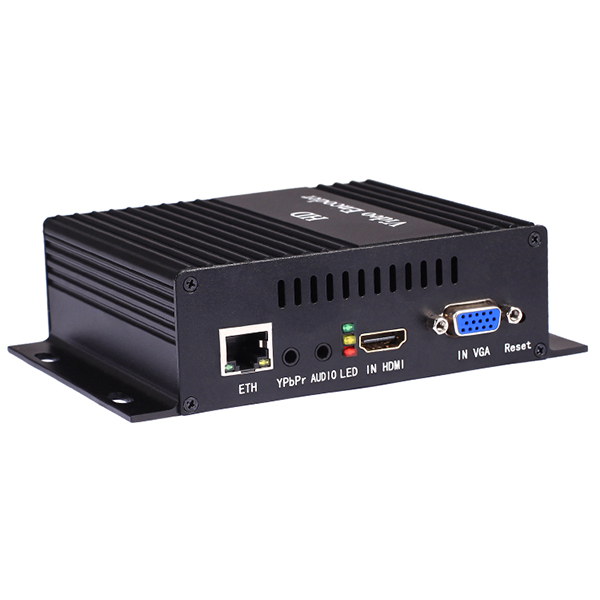

1 HDMI input, 1 channel VGA signal input, 1 YPBPR signal input, 1 channel CVBS signal / 3.5 1 channel audio input |
Output |
1 channel IP signal output |
Video |
Input resolution |
1920×1080/1680×1050/1280×720/1600×1200/960×540/720*576/704*576 And other conventional resolution |
Coding standard |
H.264 |
Coding level |
H.264 BASELINE PROFILE
H.264 MAIN PROFILE
H.264 HIGH PROFILE
|
Encoded size
|
640*360~1920*1080(Can customize) |
Video bit rate |
Rate control: CBR/VBR 16KBIT/S~12MBIT/S |
Video frame rate |
30/60 |
OSD |
Character, images |
Audio |
Input selection |
1 channel embedded audio hdmi, 1 channel 3.5MM independent audio Support audio gain |
Audio coding |
AAC/MP3/G711 |
Audio bit rate |
64Kb/s~384Kb/s |
Sampling rate |
32000、44100 ,48000etc |
IP
output
|
1 RJ 100M / 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol |
System |
Network protocol |
Supports HTTP, RTSP, RTMP, UDP, HLS multicast, unicast |
Configuration management |
Support IE configuration, remote upgrade |
The common use |
Power supply |
12V~2A |
power consumption |
5W |
Size |
100mm * 118mm *40mm(length*width*height) |
Operating temperature |
-20℃+ 60℃ |
Working humidity |
<90%,Non-condensing |
Weight |
0.3KG |
Our company reserves the right to adjust the product parameters, if you have any questions please contact us to check |
