Product Description
16-channel HD HDMI Loop input, 16-channel audio input.
Dual H.264 IP streams output (HTTP / RTSP / RTP/ TCP / RTMP / FLV/ UDP / ONVIF / HLS protocols), Audio encoding: MP3, AAC, G.711.
Configuration could be freely adjusted according to the need.
Red indicator: power. Yellow: Streaming status. Green: Network
• The embedded hardware encoding,support HDMI Loop out
• Support 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i solutions (customized)
•Support H.264 BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE
• Support multiple devices display on a computer at the same time
• Support network directly connected, don’t need match HD collection card.
•Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
• The network interface uses a 1000M full duplex mode
•1 channel HDMII input, 1 channel 3.5MM independent audio interface
input, support SDI / VGA / CVBS convert to HDMI input, support audio gain, be able to turn volume individually.
•Support up to 720P, 1080P HD video input
• Support RTSP/RTP/RTMP/HTTP/UDP/ONVIF/HLS unicast and multicast protocol
(RTMP support adding users and passwords changing) Support DHCP protocol, ONVIF protocol, support Blue-ray
•Compatible with Wowza/FMS/RED5 streaming media server etc, work in with streaming media server to push the streaming , to achieve a live streaming
• Support Main TS stream and the sub TS stream use in different network protocols for transmission (Multi-rate multi-protocol support)
• Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
• Video packaging: A mode: FFMPEG, B mode: VLC
• Support streaming resolution output settings custom
• Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)
• Support streaming add watermark (OSD), XY axis, the font can be set;
• Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)
• Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance
•Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
• Support build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individually
• Support coding without video signal; Complete the setting effect immediately, don’t need to restart
• Support one-key recovery of the default configuration
• Support set-top box decoder
• The low power consumption design
Specification
Product model |

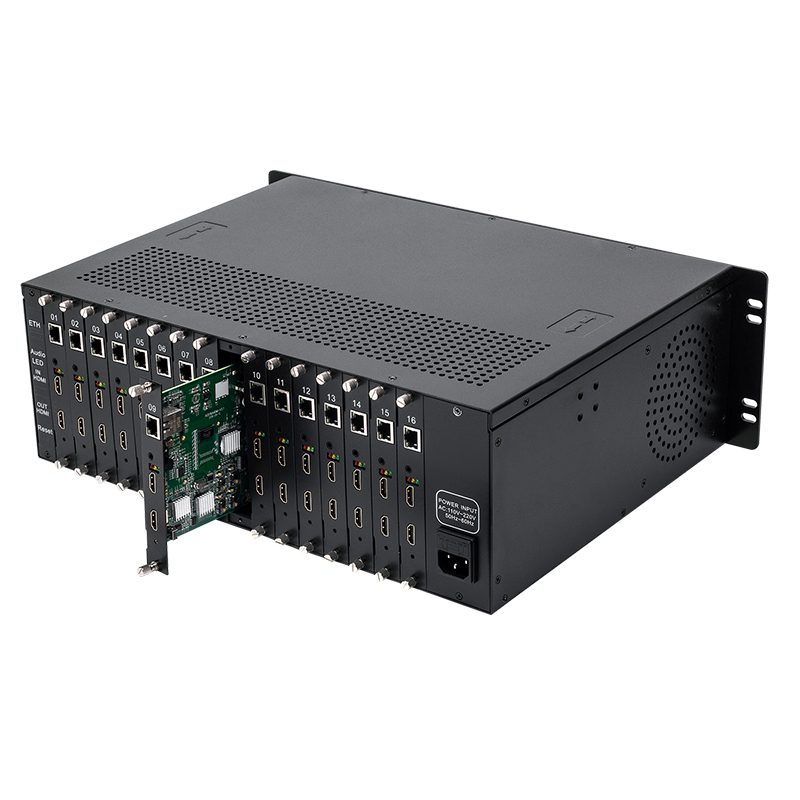

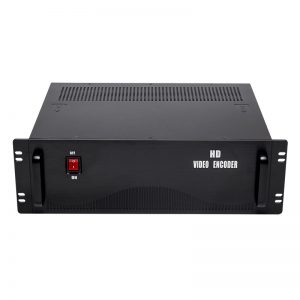

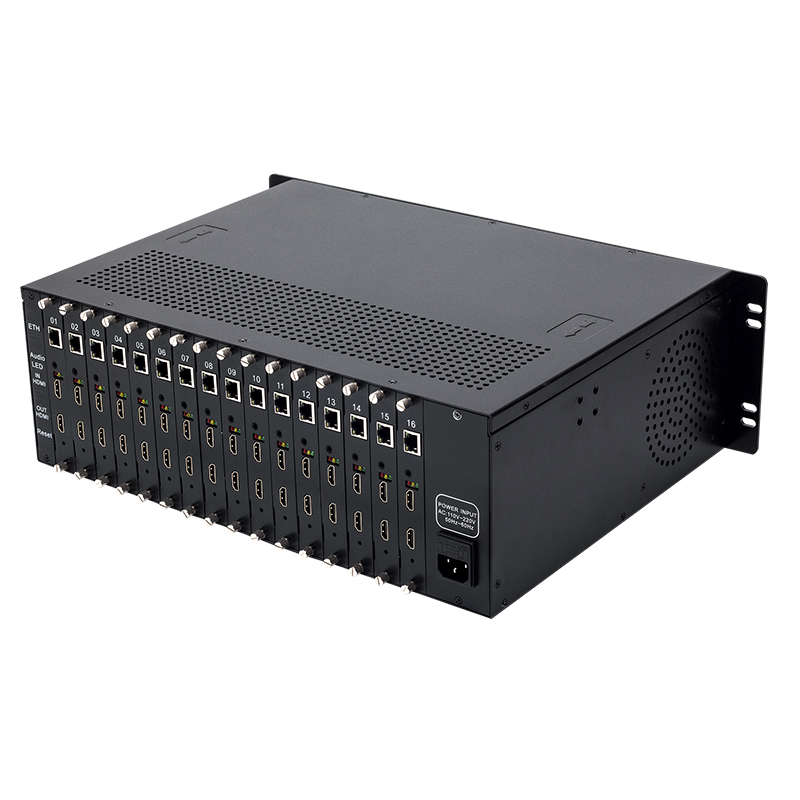

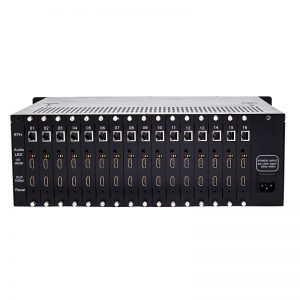

H3160H HDMI loop through encoder |
Input |
16Channel HDMI input, 16 Channel line in audio |
Output |
16 channel IP signal output, 16* HDMI loop through |
Video |
Input resolution |
Up to 1920x1080p 60FPS, standard HDMI resolution |
Coding standard |
H.264 |
Coding level |
H.264 BASELINE PROFILE
H.264 MAIN PROFILE
H.264 HIGH PROFILE
|
Encoded size
|
640*360~1920*1080(Can customize) |
Video bit rate |
Rate control: CBR/VBR 16KBIT/S~12MBIT/S |
Video frame rate |
5- 60 fps |
OSD |
Text, Image |
Audio |
Input selection |
16 channel embedded hdmi audio, 16 channel 3.5MM independent audio, Supports audio gain |
Audio coding |
AAC/MP3/G711 |
Audio bit rate |
64Kb/s~384Kb/s |
Sampling rate |
32000、44100 ,48000etc |
IP
output
|
16 RJ 100M / 1000M adaptive Ethernet port, dual-bitrate( H.265/264 TS stream) |
System |
Network protocol |
HTTP, RTSP, RTMP, ONVIF, HLS, UDP multicast, unicast |
Configuration management |
User interface, remote upgrade, Andriod APP, multi-one management platform |
The common use |
Power supply |
220V |
power consumption |
>100W |
Size |
484mm x 365mm x 148mm (length*width*height) |
Operating temperature |
-20℃+ 60℃ |
Working humidity |
<90%,Non-condensing |
Weight |
7.5KG |
Our company reserves the right to adjust the product parameters, if you have any questions please contact us to check |
