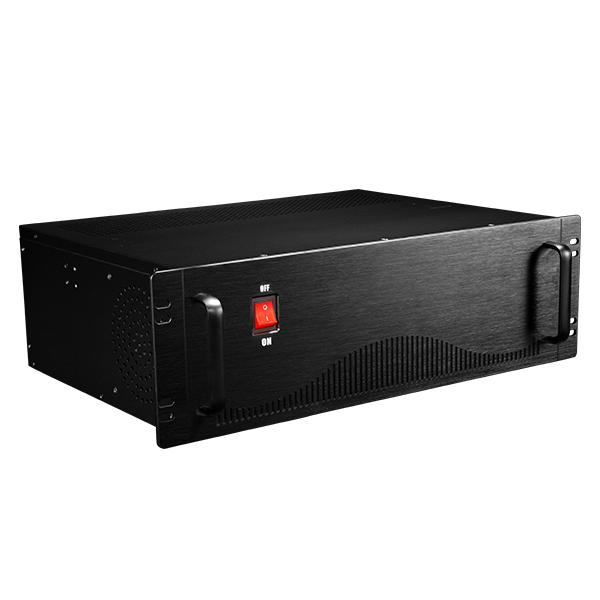

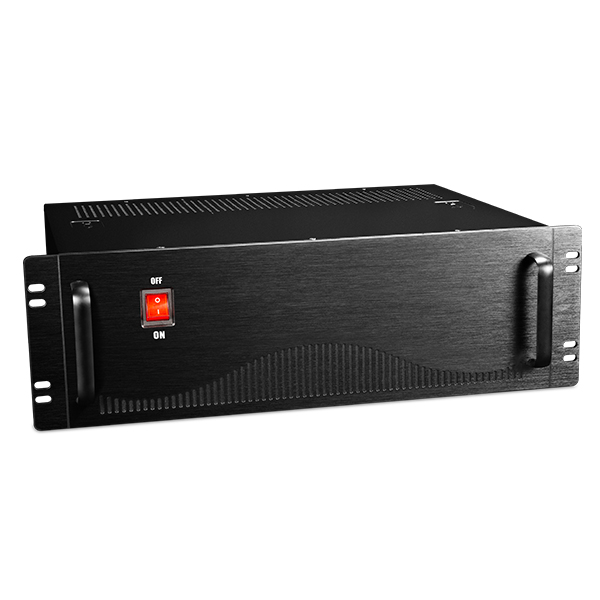

H3160 16channel H.264 HDMI HD encoder

Product Description

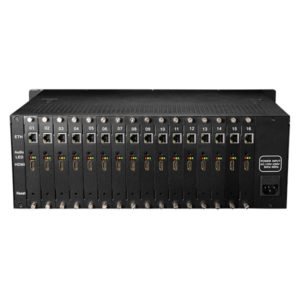

16-channel HD HDMI input, 16-channel audio input.

Dual streams output. H.264 format, Audio: MP3, AAC, G.711 format.

Configuration could be freely adjusted according to the need.

Support HTTP / RTSP / RTP/ TCP / RTMP / FLV/ UDP / ONVIF / HLS protocols.

Red indicator: power. Yellow: Streaming status. Green: Network

• Resolution: up to 1920x1080p 60 FPS
• Supports WINDOWS/ LINUX/MAC OS
• Support RTSP/ RTP/ RTMP/ FLV/ HTTP/ ONVIF/ HLS/ UDP unicast and multicast protocol
• Support Main TS stream and the sub TS stream  use in different network protocols for transmission
• Encoding level: 1, 2, 3, 4 and 5 (the higher the level, the larger of the code flow fluctuation ratio )
• Coding Standard: Base line profile/ main profile/high profile, H.265 main profile:
• Audio: MP3, AAC, G.711, sampling rate: 32000,44100, etc, encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K
• Video bitrate Control: CBR / VBR 16KBIT / S ~ 12MBIT / S
• Video packaging: A mode: FFMPEG, B mode: VLC
• Transmission: TCP, UDP, 100M/ 1000M (RJ45 Duplex network port)
• Support WEB access in Chinese/ English, passwords change, WAN remote management (WEB)
• Support Text/ image OSD, images superimposing.
• Adjustable coordinates: 1920×1080; the font size: 8 to 72.
• Supports automatically obtain IP (DHCP), support One-key recovery, upgrade and remote maintenance.
• Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
• Support build-in or external audio input, support left and right sound channel, Support audio gain, turn volume individually.
• Support encoding without video signal;
• Take effect immediately when applied the settings, don’t need to restart.
• Support one-key recovery to default setting.
• Low power consumption design.
