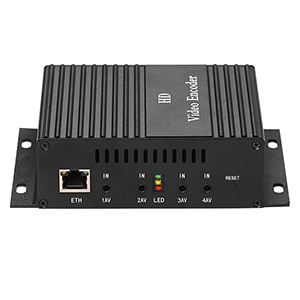

H3104AV H.264 4channel AV CVBS Encoder

H3104AV H.264 4channel AV CVBS Encoder

H3104AV H.264 4channel AV CVBS Encoder

H3104AV H.264 4channel AV CVBS Encoder

Protocol : HTTP, RTSP, RTP, TCP, RTMP, HLS, UDP multicast, unicast Coding standard

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES



Product Description

4-channel AV input, 4-channel audio input.

Dual streams output H.264 format, Audio: MP3, AAC, G.711 format.

Configuration could be freely adjusted according to the need.

Support HTTP / RTSP / RTP/ TCP / RTMP / FLV/ UDP / ONVIF / HLS protocols.

Red indicator: power. Yellow: Streaming status. Green: Network



  1. Resolution: 720*576i/720*576p /640*480i 640*320,320*240etc
  2. Supports WINDOWS/ LINUX/MAC OS
  3. Support RTSP/ RTP/ RTMP/ FLV/ HTTP/ ONVIF/ HLS/ UDP unicast and multicast protocol
  4. Support Main TS stream and the sub TS stream  use in different network protocols for transmission
  5. Encoding level: 1, 2, 3, 4 and 5 (the higher the level, the larger of the code flow fluctuation ratio )
  6. Coding Standard: Base line profile/ main profile/high profile, H.265 main profile:
  7. Audio: MP3, AAC, G.711, sampling rate: 32000,44100, etc, encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K
  8. Video bitrate Control: CBR / VBR 16KBIT / S ~ 12MBIT / S
  9. Video packaging: A mode: FFMPEG, B mode: VLC
  10. Transmission: TCP, UDP, 100M/ 1000M (RJ45 Duplex network port)
  11. Support WEB access in Chinese/ English, passwords change, WAN remote management (WEB)
  12. Support Text/ image OSD, images superimposing.
  13. Adjustable coordinates: 1920×1080; the font size: 8 to 72.
  14. Supports automatically obtain IP (DHCP), support One-key recovery, upgrade and remote maintenance.
  15. Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
  16. Support build-in or external audio input, support left and right sound channel, Support audio gain, turn volume individually.
  17. Support encoding without video signal;
  18. Take effect immediately when applied the settings, don’t need to restart.
  19. Support one-key recovery to default setting.
  20. Low power consumption design.

Specification

Product model H3104AV 4channel AV encoder
Input 4-channel AV input,

4-channel 3.5MM audio input

Output 1-channel IP signal output
Video Input resolution 720*576i/720*576p /640*480i 640*320,320*240etc
Coding standard H.264
Coding level H.264 BASELINE PROFILE

H.264 MAIN PROFILE

H.264 HIGH PROFILE



Encoded size

640*360~1920*1080
Video bit rate Rate control: CBR/VBR 16KBIT/S~12MBIT/S
Video frame rate 5-30 FPS
OSD Text, Image
Audio Input selection 4 channel AV

4 -channel 3.5MM independent audio

(Support audio gain)

Audio coding AAC/MP3/G.711
Audio bit rate 64Kb/s~384Kb/s
Sampling rate 32000、44100,48000 etc
IP

output

4 RJ 100M / 1000M adaptive Ethernet port, dual-stream( H.265/264 TS stream)
System Network protocol Supports HTTP, RTSP, RTMP, UDP, ONVIF,FLV,HLS multicast, unicast
Configuration management User interface, remote upgrade, Andriod /IOS APP, multiple management platform

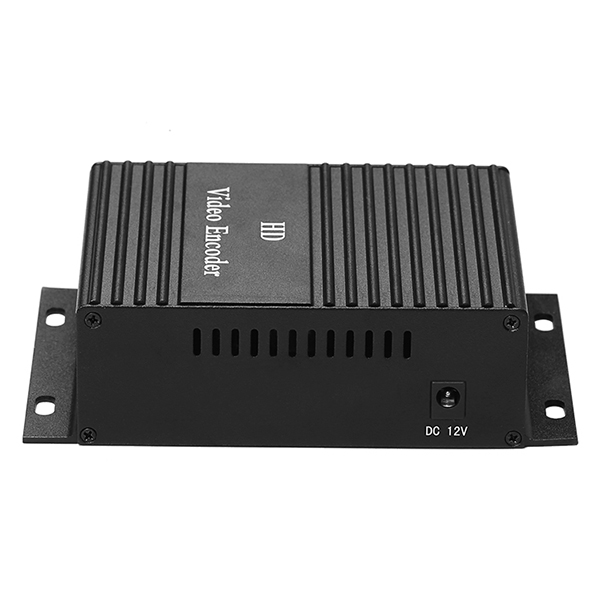

The common use Power supply 12V~2A
power consumption 5W
Size 100mm *118mm * 40mm(length*width*height)
Operating temperature -20℃+ 60℃
Working humidity <90%,Non-condensing
Weight 0.3KG
Haiwei reserves the right to adjust the product parameters, if you have any questions please contact us.
