Product Description
16-channel HD SDI input, 16-channel audio input.
Dual streams output.H.264 format, Audio: MP3, AAC, G.711 format.
Configuration could be freely adjusted according to the need.
Support HTTP / RTSP / RTP/ TCP / RTMP / FLV/ UDP / ONVIF / HLS protocols.
Red indicator: power. Yellow: Network. Green: Network:Streaming status
- Resolution: up to 1920x1080p 60 FPS
- Supports WINDOWS/ LINUX/MAC OS
- Support RTSP/ RTP/ RTMP/ FLV/ HTTP/ ONVIF/ HLS/ UDP unicast and multicast protocol
- Support Main TS stream and the sub TS stream use in different network protocols for transmission
- Encoding level: 1, 2, 3, 4 and 5 (the higher the level, the larger of the code flow fluctuation ratio )
- Coding Standard: Base line profile/ main profile/high profile, H.265 main profile:
- Audio: MP3, AAC, G.711, sampling rate: 32000,44100, etc, encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K
- Video bitrate Control: CBR / VBR 16KBIT / S ~ 12MBIT / S
- Video packaging: A mode: FFMPEG, B mode: VLC
- Transmission: TCP, UDP, 100M/ 1000M (RJ45 Duplex network port)
- Support WEB access in Chinese/ English, passwords change, WAN remote management (WEB)
- Support Text/ image OSD, images superimposing.
- Adjustable coordinates: 1920×1080; the font size: 8 to 72.
- Supports automatically obtain IP (DHCP), support One-key recovery, upgrade and remote maintenance.
- Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
- Support build-in or external audio input, support left and right sound channel, Support audio gain, turn volume individually.
- Support encoding without video signal;
- Take effect immediately when applied the settings, don’t need to restart.
- Support one-key recovery to default setting.
- Low power consumption design.
Specification
Product model |

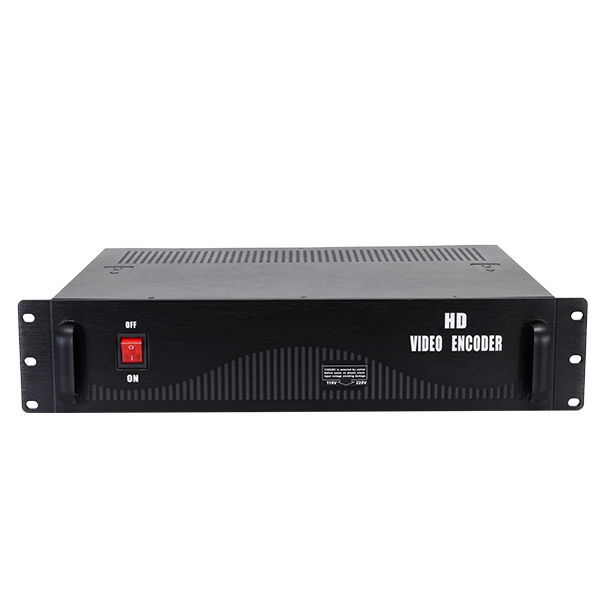

H2180H 2U 16channel SDI HD encoder |
Input |

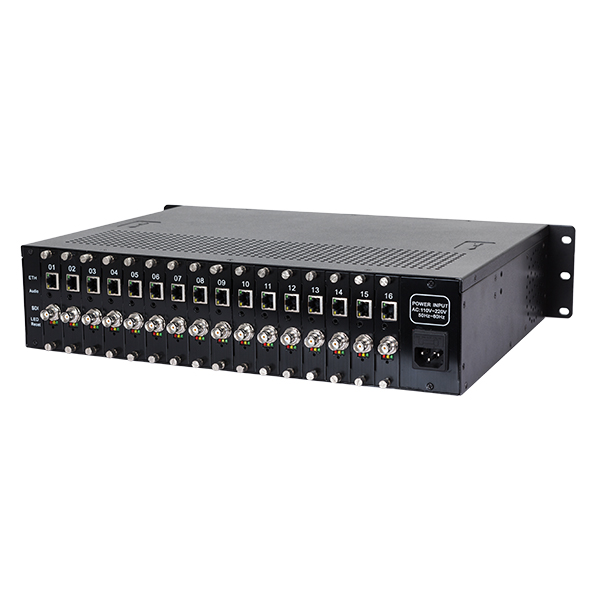

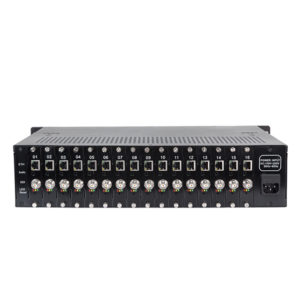

16-channel SDI input,
16-channel 3.5MM audio input
|
Output |
16-channel IP signal output |
Video |
Input resolution |
1920x1080p/1920x1080i/1280x720p/720*576i/720*576p /640*480i etc |
Coding standard |
H.264 |
Coding level |
H.265 /H.264 MAIN PROFILE
H.264 BASELINE PROFILE
H.264 MAIN PROFILE
H.264 HIGH PROFILE
|
Encoded size
|
640*360~1920*1080 |
Video bit rate |
Rate control: CBR/VBR 16KBIT/S~12MBIT/S |
Video frame rate |
5-60 FPS |
OSD |
Text, Image |
Audio |
Input selection |
16- channel embedded audio SDI,
16 -channel 3.5MM independent audio
(Support audio gain)
|
Audio coding |
AAC/MP3/G.711 |
Audio bit rate |
64Kb/s~384Kb/s |
Sampling rate |
32000、44100,48000 etc |
IP
output
|
16 RJ 100M / 1000M adaptive Ethernet port, dual-stream( H.265/264 TS stream) |
System |
Network protocol |
Supports HTTP, RTSP, RTMP, UDP, ONVIF,FLV,HLS multicast, unicast |
Configuration management |
User interface, remote upgrade, Andriod /IOS APP, multiple management platform |
The common use |
Power supply |
AC 100~240V |
power consumption |
<100W |
Size |
330mm * 435mm *90mm(length*width*height) |
Operating temperature |
-20℃+ 60℃ |
Working humidity |
<90%,Non-condensing |
Weight |
4.3KG |
Haiwei reserves the right to adjust the product parameters, if you have any questions please contact us. |
