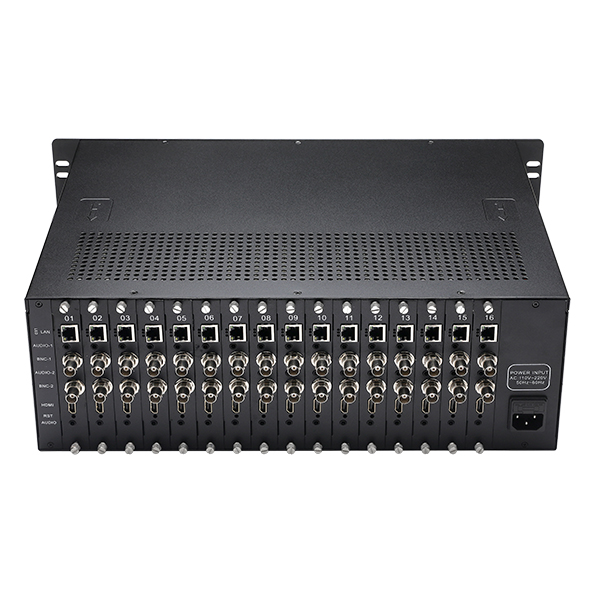

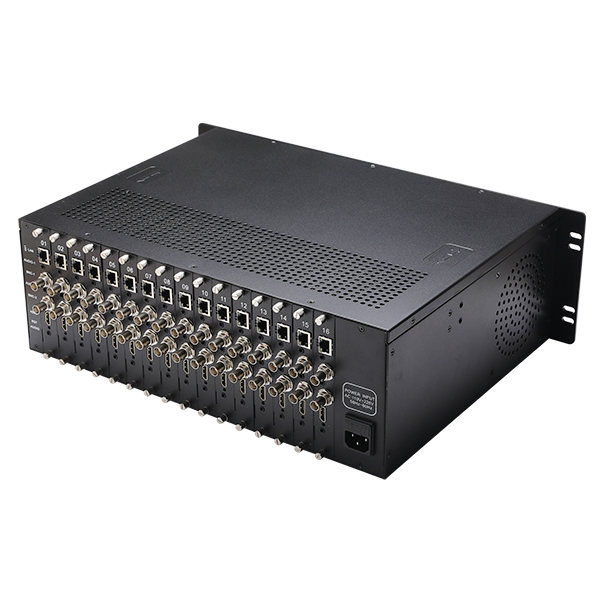

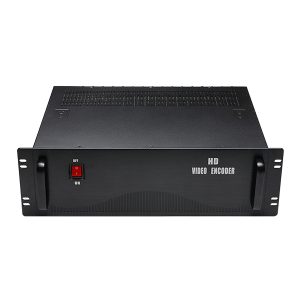

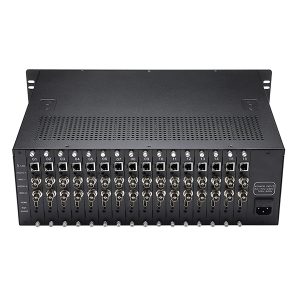

H1632B 16 HDMI+32 CVBS encoder
H1632B 16 HDMI+32 CVBS encoder
H1632B 16 HDMI+32 CVBS encoder
H1632B 16 HDMI+32 CVBS encoder

H1632B 16 HDMI+32 CVBS encoder

Want create site? Find Free WordPress Themes and plugins. Product Description Support 16 channel HDMI+ 32ch CVBS input/ 16ch Line in (independent) audio. Audio: MP3 / AAC/ G.711 format. H.264 dual streams (main/ sub stream) Support HTTP / RTS

Protocol : HTTP, RTSP, RTP, TCP, RTMP, HLS, UDP multicast, unicast

Coding standard : H.264

Encoded size : Up to 1920*1080 60FPS

Video bit rate : 5-60 fps

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES

Product Description

Support 16 channel HDMI+ 32ch CVBS input/ 16ch Line in (independent) audio.
Audio: MP3 / AAC/ G.711 format.
H.264 dual streams (main/ sub stream)
Support HTTP / RTSP / RTP / RTMP / UDP / ONVIF / HLS protocols.
Adjustable rate coding, the picture quality can be controlled.
Configurations could be freely adjusted according to the need.



◆ The embedded hardware encoding
◆ The standard 3U rack
◆ Support H.264 BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE
◆ Support multiple devices display on a computer at the same time
◆Support network directly connected, don’t need match HD collection card.
◆ Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
◆ The network interface uses a 1000M full duplex mode
◆ 16-channel HDMI interface input, 16-channel CVBS or BNC interface input (with BNC connector mounted switch CVBS), 16-channel audio interface 3.5MM independent input, Support audio gain ,be able to turn volume individually
◆ Support for external independent audio input
◆ Support up to 720P HD video input 1080P
◆Support RTSP/RTP/RTMP/HTTP/UDP unicast and multicast protocol (RTMP support adding users and changing passwords), Support DHCP/,ONVIF protocol, support HD Blue ray
◆Compatible with Wowza/FMS/RED5 streaming media server, work in with streaming media server to push the streaming , to achieve a live streaming
◆ Support Main TS stream and the sub TS stream use in different network protocols for transmission (Multi-rate multi-protocol support)
◆ Video packaging: A mode: FFMPEG, B mode: VLC
◆ Supports streaming resolution output settings custom
◆ Transmission: TCP, UDP, 1000M (RJ45 Ethernet port duplex)
◆ Support streaming adding watermark (OSD), XY axis, the font can be set;
◆ Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)
◆ Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB).
◆ Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance
◆Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
◆ Support build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individually
◆ Support coding without video signal;
◆ Complete the setting effect immediately, don’t need to restart
◆ Support one-key recovery of the default configuration
◆ Support set-top box decoder
◆ The low power consumption design

Specification

Product model H1632B 16-channel HD HDMI + 32-channel AHD CVBS encoder
Input 16-channel HDMI input, 32 channel CVBS input, 16 channel 3.5 audio input
Output 16 channel IP signal output,48 streaming output
Video Input resolution 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p /640*480i And other conventional resolution
Coding standard H.264
Coding level     H.264 BASELINE PROFILE



H.264 MAIN PROFILE

H.264 HIGH PROFILE





Encoded size

640*360~1920*1080(Can customize)
Video bit rate Rate control: CBR/VBR 16KBIT/S~12MBIT/S
Video frame rate 5-60 FPS
OSD Text, images
Audio Input selection 16 channel embedded audio hdmi, 32 channel CVBS ,16 channel 3.5MM independent audio
Audio coding AAC/MP3/ G.711
Audio bit rate 64Kb/s~384Kb/s
Sampling rate 32000、44100 etc
IP



Output

16 RJ 100M / 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol
System Network protocol Supports HTTP, RTSP, RTMP, ONVIF, UDP, multicast, unicast
Configuration management Support IE configuration, remote upgrade
The common use Power supply 220V~2A
power consumption <100W
Size 484mm * 365mm * 148mm(length*width*height)
Operating temperature -20℃+ 60℃
Working humidity <90%,Non-condensing
Weight 7.5KG
Haiwei reserves the right to adjust the product parameters, if you have any questions please contact us to check
