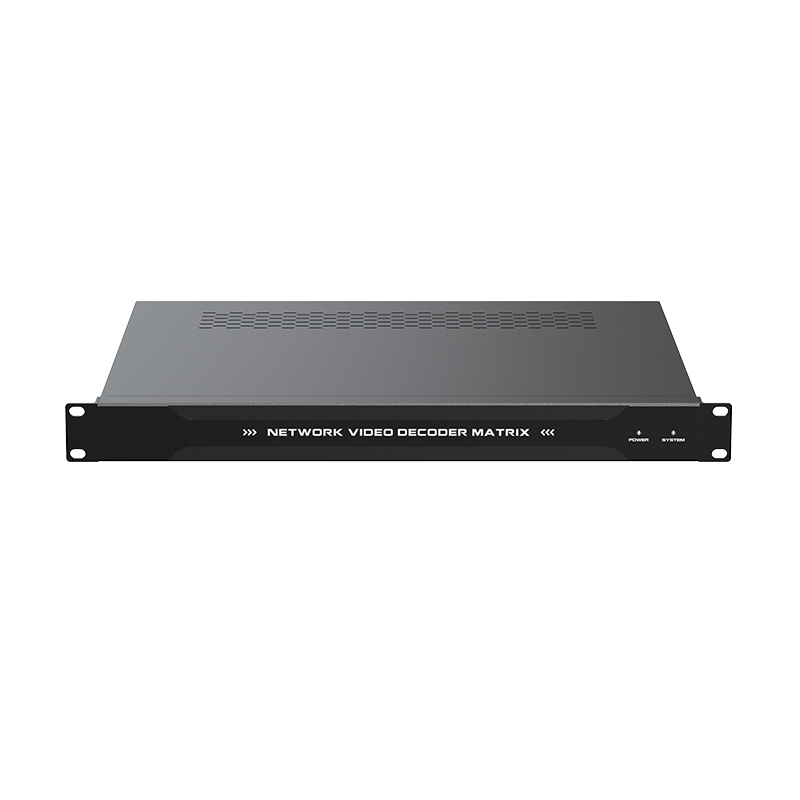

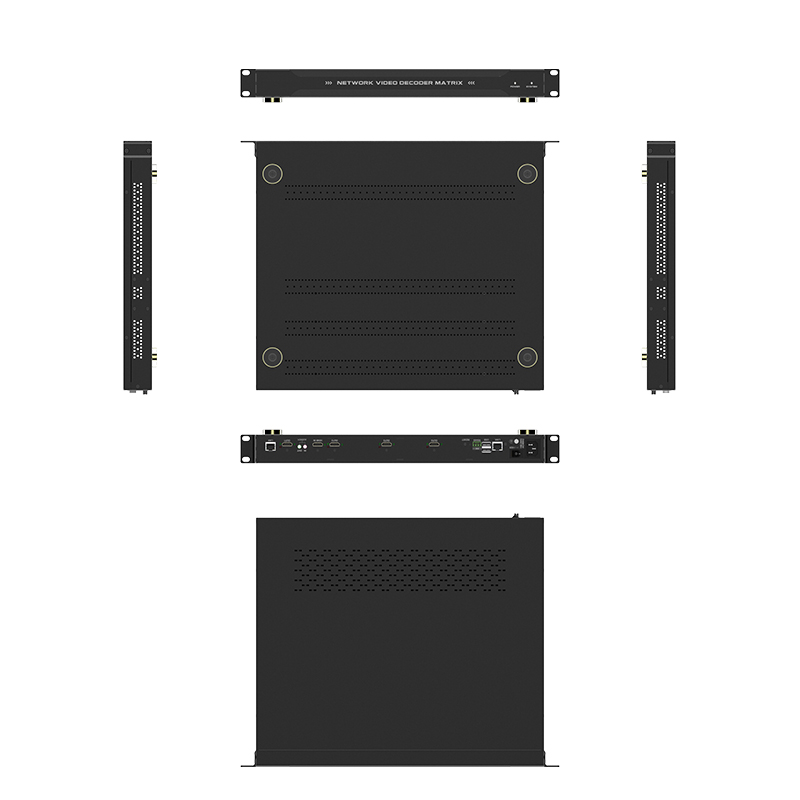

M1U64 Network decoding matrix

1：Overview：

    The network decoding matrix is specially designed for the central management of medium and large-scale TV monitoring systems. It uses the latest security-specific codec chips for H.265 decoding and is backward compatible with the H.264 network decoding matrix. It adopts embedded LINUX architecture and modular structure to ensure the stable operation of the system. Images from various mainstream IP cameras can be accessed through ONVIF and multiple private protocols. Cameras connected to NVR, DVR and CVR can also be accessed through ONVIF server-side version, RTSP protocol or multiple private protocols. You can also choose to stream media IP camera images connected to the local area network and external network are forwarded to the decoding matrix to realize image decoding, segmentation, splicing, windowing, roaming and other functions to ensure efficient, fast and stable image switching. Can be widely used in supermarkets, shops, office buildings, residential areas, office buildings, schools, hotels, factories and other monitoring places

2：Features：

1. Adopts an embedded Linux operating system, supports 7×24 stable operation, and is not susceptible to intrusions and attacks by hackers and viruses.

2. Support HDMI 1.4, 4K30 video input and output interface

3. Equipment structure: Multi-module design, 2U chassis with up to 4 modules

4. Support multi-machine cascading

5. The maximum decoding resolution is 1200W, and the single-port decoding capability can reach up to 36cif

6. Support window opening, roaming, and picture-in-picture functions

7. Support small spacing LED display

8. Support large screen power on and off function

9. Support decoding audio in G.711A and G.711U formats

10. Decoding algorithm with independent intellectual property rights, high decoding efficiency and clear image

11. Support the central server to configure and manage equipment services

12. Support HD and SD mixed video decoding

13. Support local upgrade and remote upgrade

14. Supports decoding code streams from Uniview, Hikvision, Dahua and other brand manufacturers.

3,Module parameters

3.1 Single module decoding function

1. Supports H.265 Main Profile Level5.1, H.264 Baseline/Main/High Profile Level5.0, MPEG4 SP L0~L3/ASP L0-L5, MJPEG/JPEG Baseline decoding;

2. Single screen supports 8 channels of 4K/32 channels of 1080P/64 channels of 720P/128 channels of D1 video decoding

3． Supports 4K, 500W, 300W, 200W, 130W and other standard video decoding;

4. Supports standard formats such as PAL/NTSL;

5. Support standard ONVIF access;

6． Support RTSP direct video streaming;

7. Support video file playback;

3.2 Single module encoding function (Optional HDMI input, supports up to 4K30 encoding input):

◆Supports 1 HDMI 1.4 signal access encoding;

◆Support input signal H.264 Baseline/Main/High Profile Level5.1 standard encoding;

◆Support MJPEG/JPEG Baseline encoding;

◆Supports encoding resolutions such as 4K30Hz, 1080P60Hz, and 720P;

◆Supports adjustable resolution and adjustable frame rate during encoding;

◆Supports encryption of video streams after encoding;

3.3 Single module output

◆Supports 1 HDMI 1.4 interface output; backward compatible with HDMI 1.3 and other versions;

◆Supports 1 HDMI 1.4 output 3840×2160@30fps;

◆Single screen supports up to 64 screen splits;

3.4 Single module network：

◆10/100/1000Mbps adaptive network port；

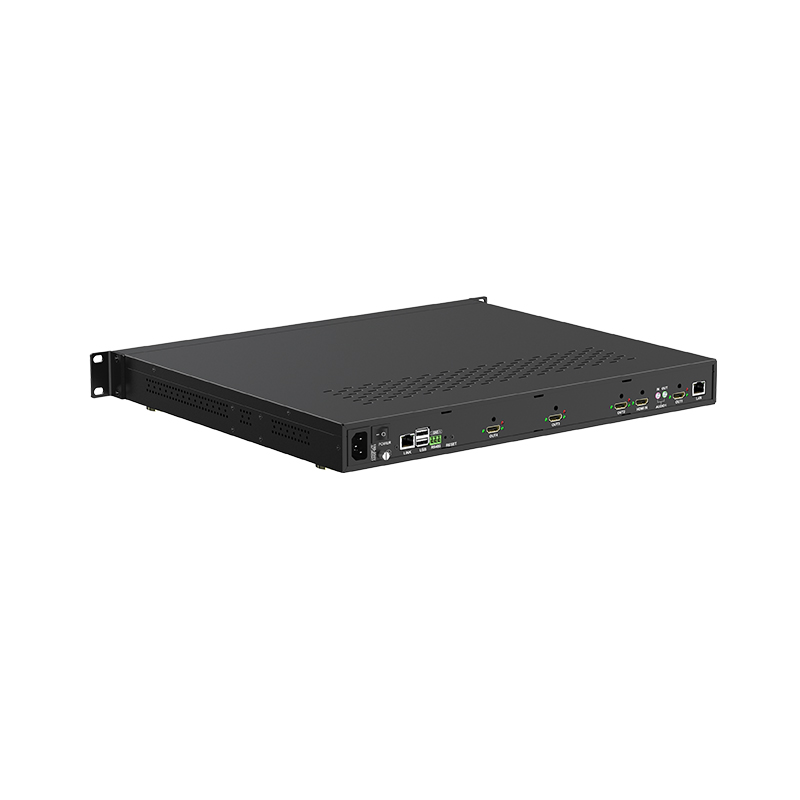

3.5 The whole machine function ：

◆The whole machine is composed of multiple modules, and its function is equivalent to the integration of multiple modules;

◆With 2 USB ports (for expansion, does not support USB operation control decoding matrix);

◆With RS485 interface, supports access to various module devices;

◆With RESET hard reset before leaving the factory.

◆With audio input and output.
