H9120D HEVC IP to HDMI BNC decoder

Want create site? Find Free WordPress Themes and plugins. H9120D HEVC & AVC HDMI+ BNC+AV 4K decoder 1port ip input, 1port HDMI& 1port BNC/CVBS/AV/AUDIO output, 1ch audio output. Completely support 4K 60, 1080p 60 fps Support RTMP/

Protocol : HTTP, RTSP, RTP, TCP, RTMP, HLS, UDP multicast, unicast

Coding standard : H.264\H.265

Encoded size : Up to 3840*2160 60fps

Video bit rate : 5-60 fps

Phone:+86 18926159746 020-36164006

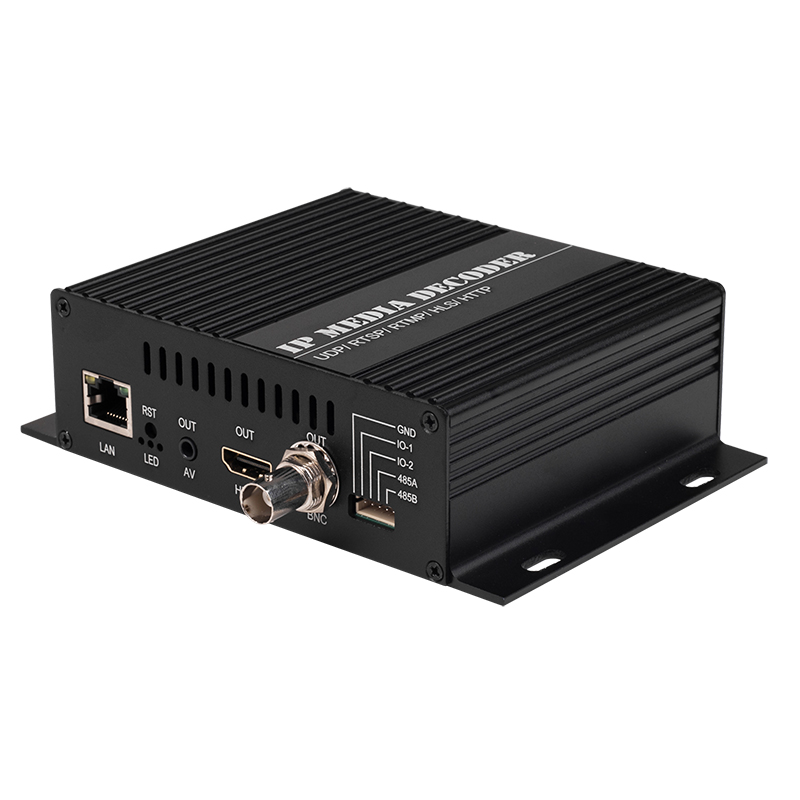

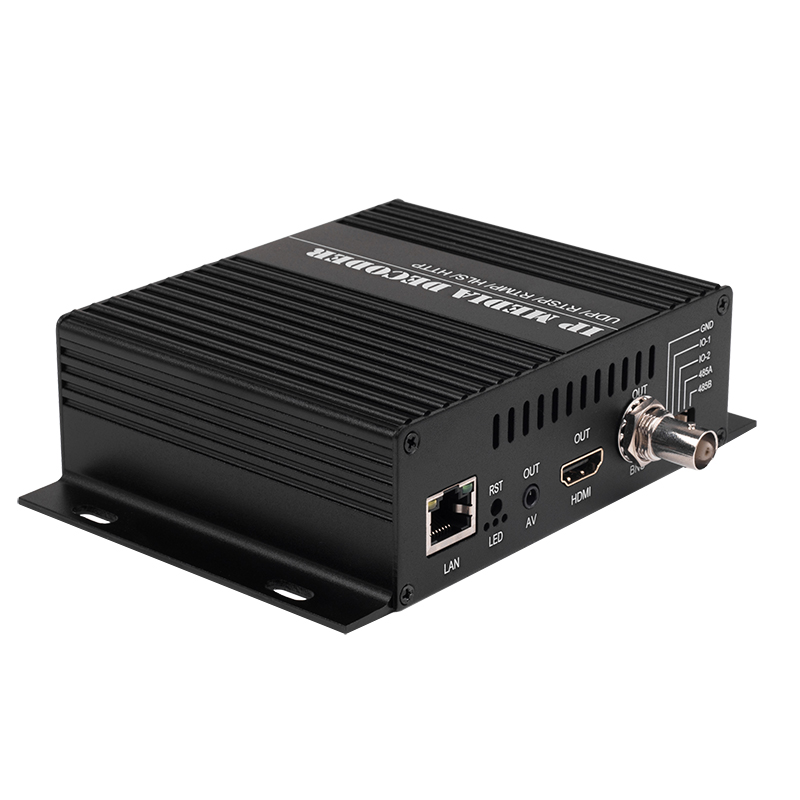

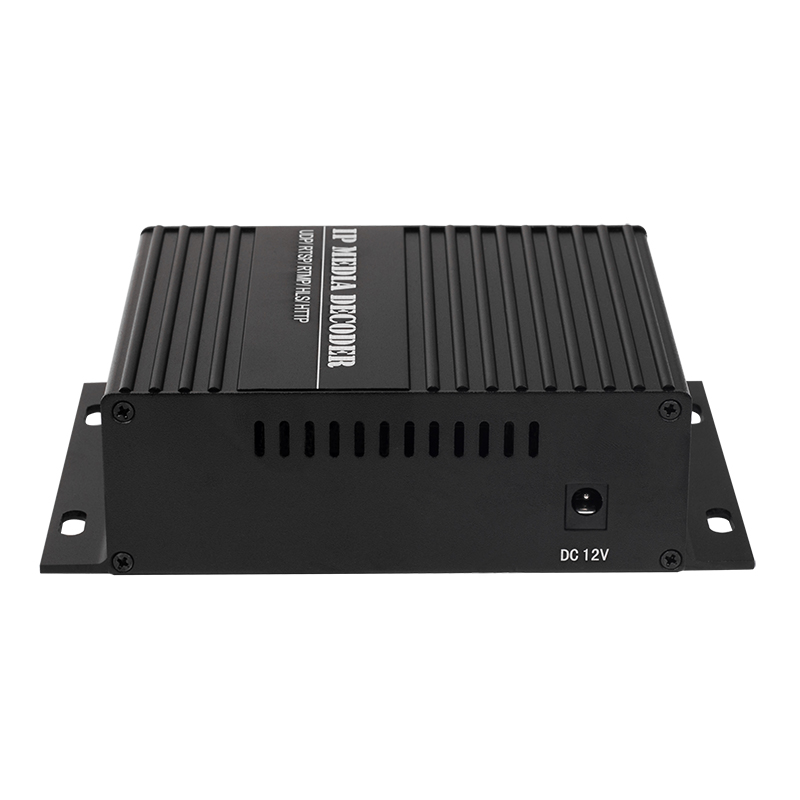

H9120D HEVC & AVC HDMI+ BNC+AV 4K decoder

1port ip input, 1port HDMI& 1port BNC/CVBS/AV/AUDIO output, 1ch audio output.

Completely support 4K 60, 1080p 60 fps

Support RTMP/RTMPS/ RTSP/ RTP/ HTTP/ HLS/ UDP/SRT, MPEG2, MPEG4 decode.

Key features：

◆Embedded hardware

◆Support 4 screens at the same time

◆Support RS485 output,IO Input/Output

◆Control multi encoder based on one computer

◆RTMP/ RTMPS/RTSP/ RTP/ HTTP/HTTPS/ HLS/ UDP/SRT/P2P

◆Output: HDMI+ BNC+ AV

◆Up to 4K 60 FPS output

◆Multi-IP In (1. 4).

◆Output Up to HDMI 2.0

◆low consumption

Specification

Model	H9120D HEVC & AVC HDMI+ BNC 4K decoder
Output	1×HDMI，1×BNC, 1×audio, 1×AV
Input	IP( RTMP/ RTSP/ RTP/ HTTP/ HLS/ UDP), MPEG2, MPEG4
Video	Output Resolution	up to 4K 60 (NO fluctuating)

	Decoding	H.264/H.265/MPEG-1/MPEG-2/MPEG-4/VP8/VP9/AVS/AVS+
	IP IN	1, 4
	Protocol	rtsp/ http/ udp/ rtmp/ hls/ rtp/P2P
AUDIO	Output	1×3.5mm independent audio/ HDMI embedded audio
AUDIO	Format	AAC/MP3/G.711
IP Input	1× RJ 100M/1000M, TCP, UDP
System	Configure	IE, remote upgrade
	Power	5V~2A
	Consumption	5W
	Size	119mm x 102mm x 42mm
	working temperature	-20℃+ 60℃
	working humidity	<90%
	Weight	0.3KG
