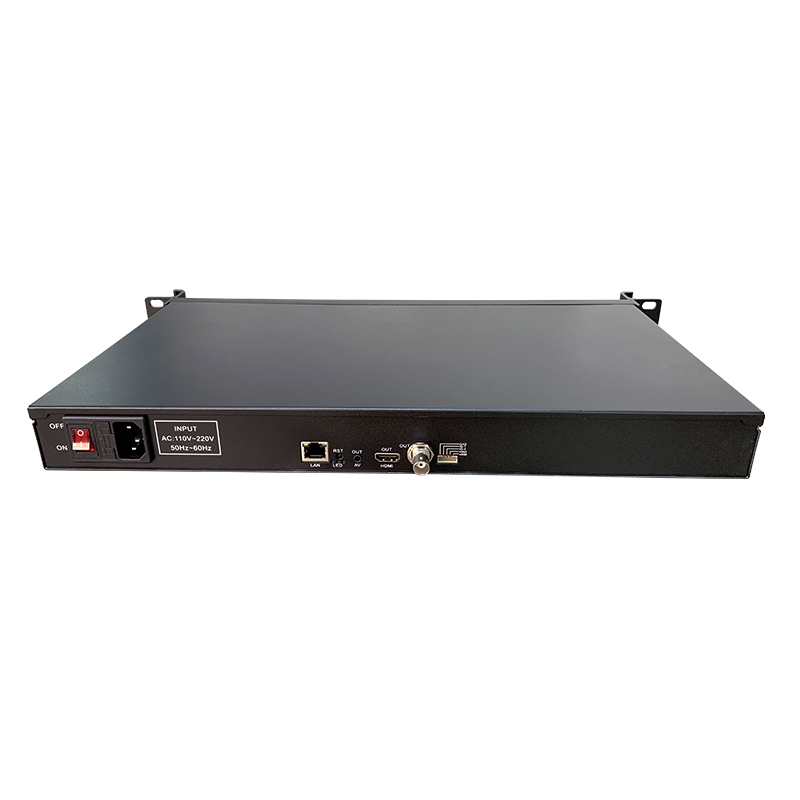

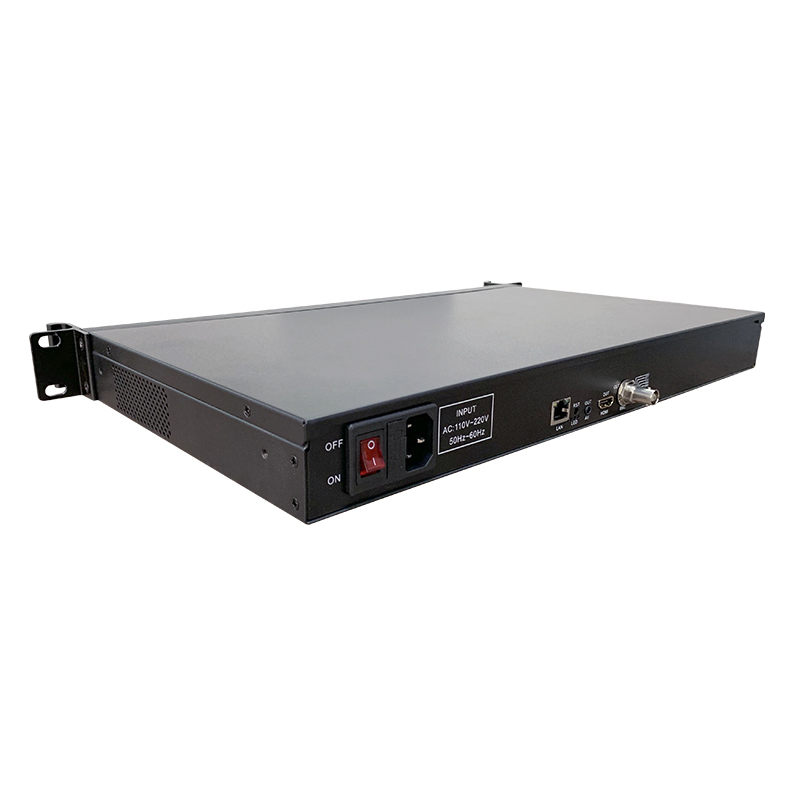

DR101 HEVC& AVC HDMI+ BNC+AV+ 4K IP Decoder

DR101 HEVC& AVC HDMI+ BNC+AV+ 4K IP Decoder

Want create site? Find Free WordPress Themes and plugins. 1port ip input, 1port HDMI& 1port BNC/CVBS/AV/AUDIO output, 1ch audio output. Completely support 4K 60, 1080p 60 FPS Support H.264/ H.265 RTMP/ RTSP/ RTP/ HTTP/ HLS/ UDP, MPEG2, M

Protocol : HTTP, RTSP, RTP, TCP, RTMP, HLS, UDP multicast, unicast

Coding standard : H.264\H.265

Encoded size : Up to 1920*1080 60FPS

Video bit rate : 5-60 fps

Phone:+86 18926159746 020-36164006

1port ip input, 1port HDMI& 1port BNC/CVBS/AV/AUDIO output, 1ch audio output.

Completely support 4K 60, 1080p 60 FPS

Support H.264/ H.265 RTMP/ RTSP/ RTP/ HTTP/ HLS/ UDP, MPEG2, MPEG4 decode.

Key features：

◆Embedded hardware

◆Support 4 screens at the same time

◆Support RS485 output,IO Input/Output

◆Control multi encoder based on one computer

◆H.264/ H.265, RTMP/ RTSP/ RTP/ HTTP/ HLS/ UDP/P2P input

◆Output: HDMI+ BNC+ AV

◆Up to 4K 60 FPS output

◆Support rtsp/ http/ udp/ rtmp/ hls/ rtp

◆Multi-IP In (1. 4).

◆Output Up to HDMI 2.0

◆low consumption

Specification

Model	DR101 HEVC & AVC HDMI+ BNC 4K decoder
Output	1×HDMI，1×BNC, 1×audio, 1×AV
Input	IP( RTMP/ RTSP/ RTP/ HTTP/ HLS/ UDP), MPEG2, MPEG4
Video	Output Resolution	up to 4K 60 FPS

	Decoding	H.264/H.265/MPEG-1/MPEG-2/MPEG-4/VP8/VP9/AVS/AVS+
	IP IN	1, 4
	Protocol	rtsp/ http/ udp/ rtmp/ hls/ rtp/P2P
AUDIO	Output	1×3.5mm independent audio/ HDMI embedded audio
AUDIO	Format	AAC/MP3/G.711
IP Input	1× RJ 100M/1000M, TCP, UDP
System	Configure	IE, remote upgrade
	Power	AC 100~240V
	Consumption	<100W
	Size	430mm * 250mm 45mm(lengthwidth*height)
	working temperature	-20℃+ 60℃
	working humidity	<90%
	Weight	3KG
