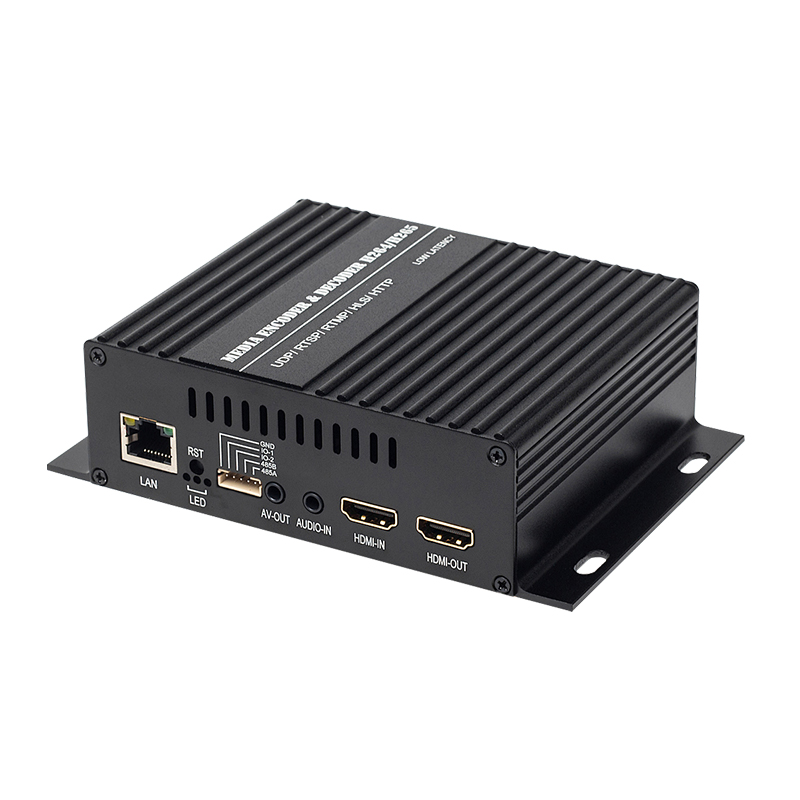

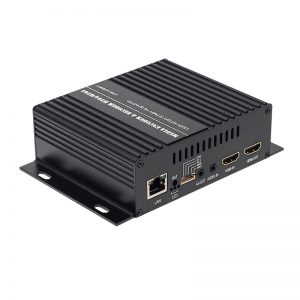

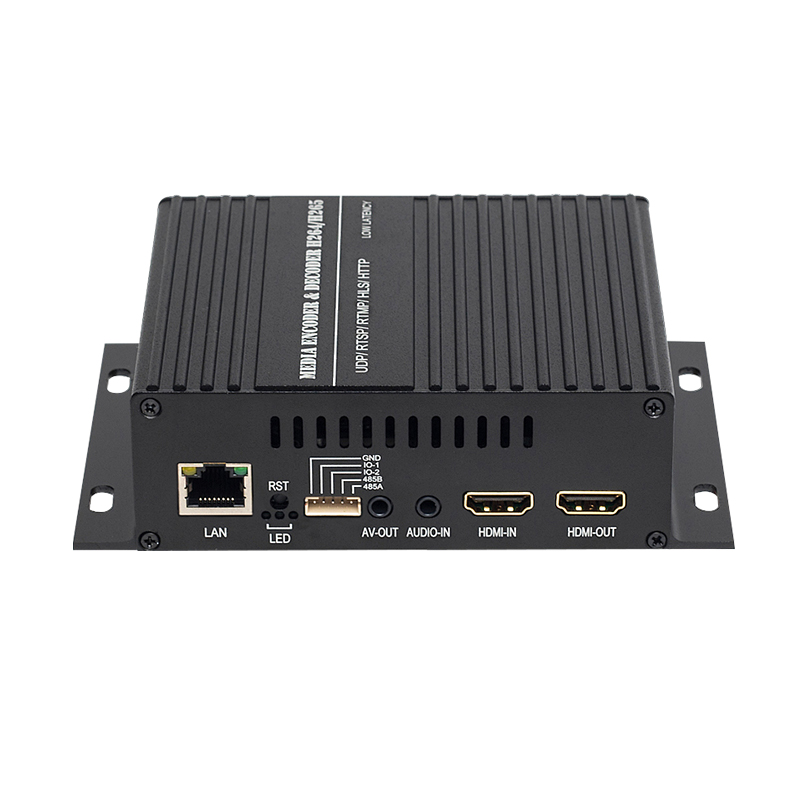

HSC-S1 codec

Product Description

About the HSC series codec The HSC products (Haiwei SynCodec) are the embedded hardware for point to point interactive transmission solution,
emergency communication, can be used as IP transcoder also.

The HSC allows to receive the stream from other side, then output via HDMI/ 3.5mm composite Jack, meanwhile, able to send the streams via a series of IP protocol like RTSP over UDP & TCP/ RTMP/ HTTP/ UDP /Unicast/ Multicast/ ONVIF/ P-P (Haiwei proprietary protocol).

With Haiwei Powerd proprietary protocol, the HSC supports directly receive the stream from another Haiwei P-P devices in another network, even another country on the planet.

New technology-SDK decoding, one click to call the SDK for local network transmission, don’t need to transmit over server like P-P solution, ultra low latency will available then.

Specification

1.Encoding scheme：HEVC/ H.265, AVC H.264 MPEG-4       Profile：H.265 main profile, H.264 high/ main/ baseline profile；

2.Accessibilities：VIdeo package: VLC/ FFMPEG   Stream information rename (PMT/ transport ID/Stream ID)
Image adapt (Noise/ sharpe/ filter/ contrast/ Bri/Hue )

3.Mnagement：HTTP WEB GUI (80/ 90 );Haiwei video management platform;LiveX for Phone; Telnet, API, SDK  Customized tools.

4.Encoding    Input：Up to 1080P 60 (Minimum 320*180),3.5MM line-in Jack
Output：HTTP/ HLS/ RTSP over UDP TCP/ RTMP/  UDP Unicast Multicast/ ONVIF/ RTP/ P-P
Encoded resolution: 320*180 to 1080P 60

5.Decoding   Input：RTSP/ RTMP/ UDP/ HTTP/ HLS/ P-P/ SDK
Output：HDMI/ CVBS (NTSC/ PAL)
Resolution：3840*2160 30, 1080I 60/50, 1080P 60/50/30/25/24720P 60, 576P 60, 480P 60

6.Transcoding    IP to IP (HTTP/ RTSP/ RTMP/ HLS/ UDP)  H.264/ H.265 to H.265/ H.264

7.Network    1/4* RJ45 Gigabyte full-duplex network.DHCP can be enabled by default.

8.Bitrates   Video: 16KB/S to 12000KB/S, CBR/ VBR    Audio: 48K, 64K, 96K, 128K, 160K，192K,256K.,320K     Audio sample rate: 24000- 256000
Audio format: MP3/ G.711/ AAC HE LC/ MP2

9.Accessories    1* HSC-S1/ R101, 1/4* HDMI cable, 1/4* power adapter    1/4* CVBS cable (3.5MM), 1* warranty card.

10.Others  ：Dimension: S1-100*118*40 (mm), R101- 19 inch

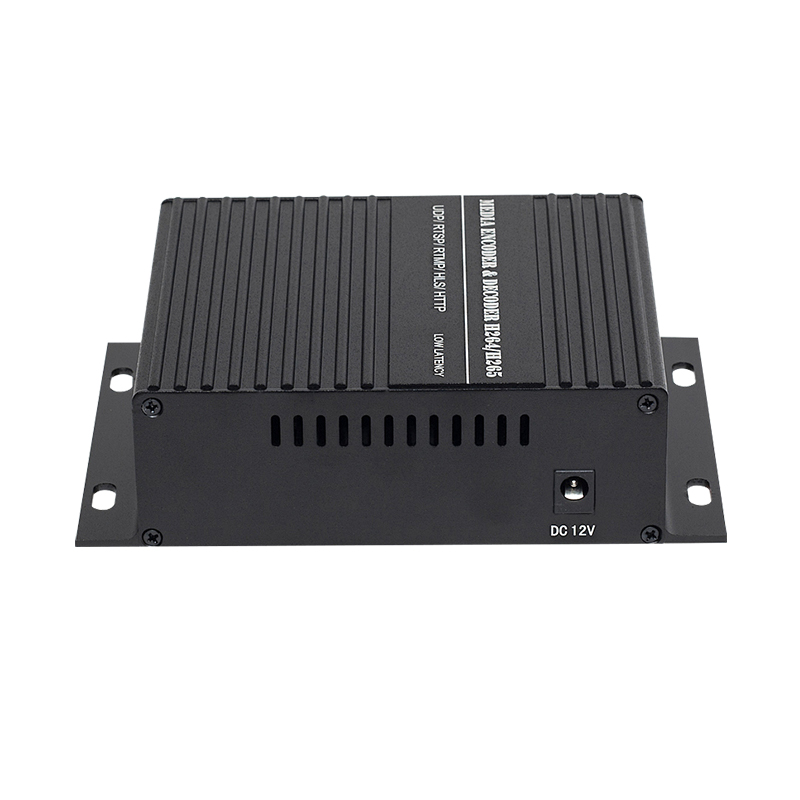

Working temperature: -20℃ to 60 ℃   Working humidity: ＜90%  Net weight: S1-0.3 KG, R101- 2.8 KG   Power: S1-12V 2A, R101- 110-240V
consumption: S1- 5W, R101- ＜28W
