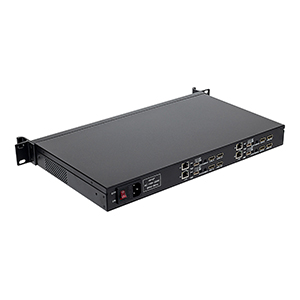

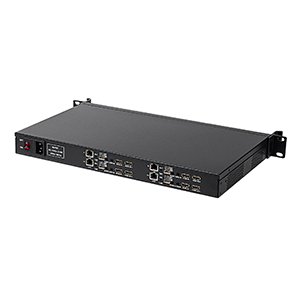

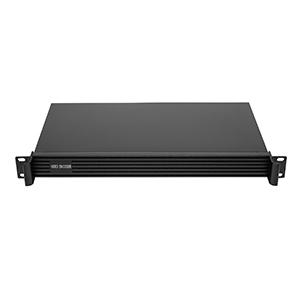

HSC-R104 codec

The same code (transcoding) HD codec is a new 1U4 road codec device. The product uses the latest H.264 and .H.265 image processing functions to support network stream input. The HDMI output and cvbs output are decoded, and the HDMI video signal is input and converted into a network video stream. In the case of a single machine, the work of decoding while encoding is performed at the same time.

Support input HDMI video signal for encoding and output network stream. Video transmission protocol supports: HTTP RTSP UDP unicast UDP multicast RTP RTMP HLS, etc., can also solve online network video stream at the same time (eg: rtsp://…. rtmp://…. udp://@…. hls, etc.) to the device and then connected to the monitor or TV via HDMI output to restore the image, and support 1 external connection After the sound input code is synchronized, the output is synchronized with various network flow protocols, and after the network video stream is decoded, the sound can be connected to the sound or the power amplifier from the sound interface of the 3.5 interface.

◆Highest resolution supports 1920×1080 (customizable)

◆Support HDMI input, 3.5mm audio input

◆Support WINDOWS and LINUX operating systems

◆ Support input stream: HTTP/HLS/RTSP/RTP/RTMP, HTTP/UDP unicast, multicast, etc. (RTMP supports adding user and password functions)

◆ Support output stream: HTTP/HLS/RTSP/RTP/RTMP, HTTP/UDP unicast, multicast, etc. (RTMP supports adding user and password functions)

◆Double channel output supports multi-protocol multi-stream function such as main and auxiliary, and main and auxiliary streams are selected separately.

◆ coding standard BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE, audio MP2 MP3, AAC, sampling rate: 32000, 44100, etc., encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K.320K

◆ Rate Control CBR/VBR 16KBIT/S~12MBIT/S

◆ Video packaging method: FFMPEG VLC

◆ Transmission mode: TCP, UDP, 1000M (RJ45 duplex network port)

◆Support WEB Chinese and English web page access, change password, support WAN remote management (WEB)

◆Support Chinese and English OSD, support OSD scrolling, image overlay, support to add company logo letters and symbols, etc. can be displayed anywhere on the screen; adjustable coordinates: 1920×1080; font size adjustment resolution available range: 8~72 interval.

◆ Support DHCP to automatically obtain IP, support one-click restore and version upgrade and remote maintenance.

◆Audio supports built-in and external two modes, supports left and right channels, supports audio gain, and can adjust the volume separately.

◆Support no video signal coding

◆Setting completed immediately, no need to restart

◆ Support one key to restore default configuration

◆ Support transcoding function, IP input, IP output, protocol, format, resolution, etc.

◆Support HDMI custom loop out, HDMI enter, other resolutions out

◆Support picture-in-picture coding output
