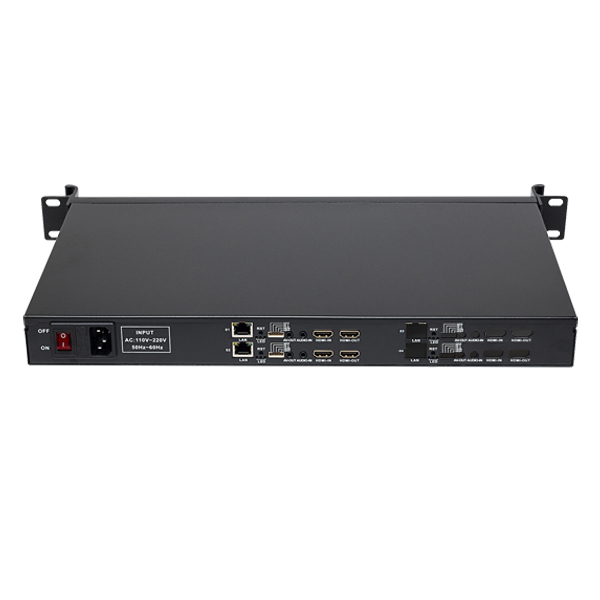

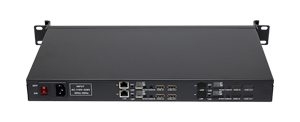

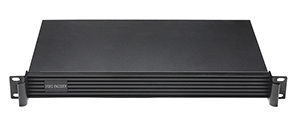

HSC- R102 Encoder Decoder Transcoder with Recording

About the HSC series codec

The HSC products (Haiwei SynCodec) are the embedded hardware for point to point interactive transmission solution,

emergency communication, can be used as IP transcoder also.

The HSC allows to receive the stream from other side, then output via HDMI/ 3.5mm composite Jack,

meanwhile, able to send the streams via a series of IP protocol like RTSP over UDP & TCP/ RTMP/RTMPS/

HTTP/ UDP /Unicast/ Multicast/ ONVIF/ P2P (Haiwei proprietary protocol).

With Haiwei Powerd proprietary protocol, the HSC supports directly receive the stream from another Haiwei

P-P devices in another network, even another country on the planet.

www.hwcodec.com

New technology-SDK decoding, one click to call the SDK for local network transmission, don’t need to transmit over server like P-P solution, ultra low latency will available then.

Main specifications

Encoding scheme

HEVC/ H.265, AVC H.264 MPEG-4

Profile

H.265 main profile, H.264 high/ main/ baseline profile

Encoding

Input

Up to 1080P 60 (Minimum 320*180), 3.5MM line-in JacK

Output

HTTP/ HLS/ RTSP over UDP TCP/ RTMP

/RTMPS/ UDP Unicast Multicast/ ONVIF/ RTP/

P2P

Encoded resolution:

320*180 to 1080P 60

Bitrates

Video: 16KB/S to 12000KB/S, CBR/ VBR

Audio: 48K, 64K, 96K, 128K, 160K，192K,256K.,320K Audio sample rate: 24000- 256000

Audio format: MP3/ G.711/ AAC HE LC/ MP2

Accessibilities

VIdeo package: VLC/ FFMPEG Untitled-2 Stream information rename (PMT/ transport ID/

Stream ID)

Image adapt (Noise/ sharpe/ filter/ contrast/ Bri/Hue )

Decoding

Input

RTSP/ RTMP/ UDP/ HTTP/ HLS/ P-P/ SDK

Output

HDMI/ CVBS (NTSC/ PAL)

Resolution

3840*2160 30, 1080I 60/50, 1080P 60/50/30/25/24 720P 60, 576P 60, 480P 60

Accessories

1* HSC-S1/ R101, 1/4* HDMI cable, 1/4* power adapter 1/4* CVBS cable (3.5MM), 1* warranty card.

Mnagement

HTTP WEB GUI (80/ 90 ); Haiwei video management platform; LiveX for Phone; Telnet, API, SDK Customized tools.

Transcoding

IP to IP (HTTP/ RTSP/ RTMP/ HLS/ UDP) H.264/ H.265 to H.265/ H.264

Network

1/4* RJ45 Gigabyte full-duplex network.

DHCP can be enabled by default.

Others

Dimension: S1-100*118*40 (mm), R101- 19 inch Working temperature: -20℃ to 60 ℃

Working humidity: ＜90%

Net weight: S1-0.3 KG, R101- 2.8 KG

Power: S1-12V 2A, R101- 110-240V

consumption: S1- 5W, R101- ＜28W
