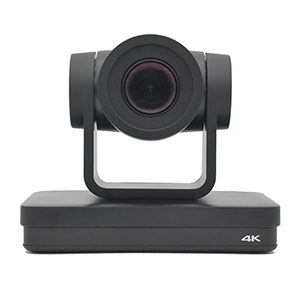

Z310-Ultra HD 4K PTZ Camera
Z310-Ultra HD 4K PTZ Camera
Z310-Ultra HD 4K PTZ Camera
Z310-Ultra HD 4K PTZ Camera
Z310-Ultra HD 4K PTZ Camera
Z310-Ultra HD 4K PTZ Camera

Z310-Ultra HD 4K PTZ Camera

Want create site? Find Free WordPress Themes and plugins. 4K Ultra HD 1/2.8 & 1/2.5 inch high quality 4K SONY CMOS sensor; 8.51 megapixel, resolution is up to 4K (3840×2160) and compatible with 1080P, 720P and other resolution

White Balance : Auto / Manual/ One Push/ Specified Color Temperature

Exposure mode : Auto/ Manual / Shutter Priority / Aperture Priority / Brightness priority

Video Adjustment : Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve

Network Protocol : RTSP, RTMP, ONVIF, GB/T28181, VISCA Control Protocols, Remote Upgrade, reboot and reset

LAN : 10M/100M/1000M adaptive Ethernet port, support POE and audio/video output

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES

  • 4K Ultra HD

1/2.8 & 1/2.5 inch high quality 4K SONY CMOS sensor; 8.51 megapixel, resolution is up to 4K (3840×2160) and compatible with 1080P, 720P and other resolutions. 4K 60FPS

  • Optical Zoom Lens

12X and 5X optical zoom lens, with 70° & 80° FOV without distortion.

  • Trinity image auto-focusing technology

Focus on intelligent image processing, to provide automatic white balance (AWB), automatic exposure (AE), automatic focusing (AF) function, fully automatically adapt to the environment, to achieve the best image effect, perfect trinity image automatic adjustment.

  • Low Noise and High SNR

Low noise CMOS ensures super high SNR image. The advanced 2D/3D noise reduction technology reduces the noise while ensuring high image clarity.

  • Multiple Video Outputs:

HDMI, USB3.0 and LAN support audio video output

  • Multiple USB Compression Encoding Format:

Support YUY2,MJPEG,H.264,NV12 video encoding formats

  • Multiple Audio Compression Standard

Audio-in supports AAC, MP3 and G.711A audio compression; 8000,16000,32000,44100,48000 sampling frequency



  • Built-in gravity sensor

Built-in gravity sensor supports PTZ auto-flip function, easy to install.

  • Multiple network protocol

Supports ONVIF, GB/T28181, RTSP, RTMP protocols; RTMP push mode, easy to be connected to streaming server (Wowza,FMS);  RTP multicast mode; VISCA control protocol

  • Control Interface

RS422 (compatible with RS485); RS232 in & out; RS232 cascade connection

  • Multiple Control Protocol

Support VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols.

  • Extremely Quiet PTZ

Adopting step driving motor mechanism and motor drive controller with high precision is to ensure PTZ works smoothly with low speed and without noise.

  • Multiple preset

Up to 255 presets (10 presets for remote control).

  • IR & Wireless Remote Control

IR remote control (default)

Wireless remote control (optional):

2.4G wireless remote control is not affected by the angle, distance or infrared interference. Far-end-control is also available.

  • Multiple Applications

Online-education, Lecture Capture, Broadcasting, Video conferencing, Tele-medicine, Unified Communication, Emergency command and control systems, etc.

Relate series,click for more info

Specification

Model Z310 Z310B
Optical Zoom 12X 5X
FOV Horizontal: 6.55˚(tele)~ 69.4˚(wide)



vertical: 3.66˚(tele)~ 42.8˚(wide)

Horizontal: 26.51°(tele)~79.18°(wide)



vertical: 15.29°(tele)~49.22°(wide)

Aperture F1.6 – F2.8±5% F2.0 – F2.8±5%
Image Sensor 1/2.8 Inch SONY CMOS Sensor 1/2.5 Inch SONY CMOS Sensor
Effective pixels 8.51M; 16:9 8.51M; 16:9
Video Format HDMI Video Output Format:



4KP60, 4KP50, 4KP30, 4KP25, 1080P60, 1080P50, 1080i 60, 1080i 50,

1080P30, 1080P25, 720P60, 720P50

USB3.0 Video Output Format:

YUY2/NV12:

1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30,

800×448P30, 640×360P30, 640×480P30, 320×176P30

MJPEG/H.264:

3840×2160P30,1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30,

800×448P30, 640×360P30, 640×480P30, 320×176P30

USB3.0 compatible with USB2.0:

YUY2/NV12: 640×360P30, 640×480P30, 320×176P30

MJPEG/H.264: 3840×2160P30, 1920×1080P30, 1280×720P30, 1024×576P30,

960×540P30, 800×448P30, 640×360P30, 640×480P30, 320×176P30


Minimum Illumination 0.05Lux (F1.8, AGC ON)
DNR 2D & 3D DNR
White Balance Auto / Manual/ One Push/ Specified Color Temperature
Focus Auto / Manual/ One Push
Exposure mode Auto/ Manual / Shutter Priority / Aperture Priority / Brightness priority
Aperture F1.8 – F11, CLOSE
shutter speed 1/25 – 1/10000
BLC OFF/ON
Dynamic range OFF/ Dynamic Level Adjustment
Video Adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR ≥50dB




Input/Output Interface

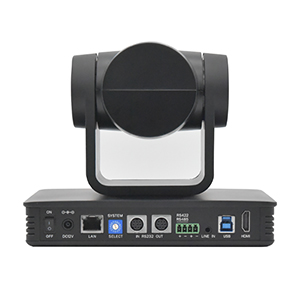

Interfaces HDMI, LAN(POE), USB3.0(Type B, compatible with USB2.0), A-IN, RS232-in & out;



RS422(Compatible with RS485), Dial switch, DC12V, Power Switch

Video Compression LAN: H.264, H.265



USB 3.0: MJPG, H264, YUY2, NV12

Audio-in Interface Double track 3.5mm linear Input
Audio out HDMI, LAN, USB3.0
Audio Compression AAC, MP3, G.711A
LAN 10M/100M/1000M adaptive Ethernet port, support POE and audio/video output
Network Protocol RTSP, RTMP, ONVIF, GB/T28181, VISCA Control Protocols, Remote Upgrade, reboot and reset
Control Interface RS232-IN, RS232-OUT, RS422 (compatible with RS485)
Serial Protocol VISCA/ Pelco-D / Pelco-P; Baud rare: 115200/38400/9600/4800/2400
USB Communication Protocol UVC(video),UAC(audio)
Power Interface HEC3800 outlet (DC12V)
Power Adapter Input: AC110V-AC220V ; Output: DC12V/2.5A
Input Voltage DC12V±10%
Input Current <1A
Power Consumption <12W
