Z300 Information & Communication HD Camera
Z300 Information & Communication HD Camera
Z300 Information & Communication HD Camera
Z300 Information & Communication HD Camera
Z300 Information & Communication HD Camera

Z300 Information & Communication HD Camera

Want create site? Find Free WordPress Themes and plugins.   Key Features 4K Ultra HD Image: Built with SONY high quality CMOS sensor, ,with resolution up to 4K@60fps. Optical Zoom Lens 12x optical zoom lens, with 80.4° FOV

Image Sensor : 1/2.5 Inch SONY High Quality 4K CMOS Sensor

View Angle : Horizontal

Video Adjustment : Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve

Preset Number : 255 Points Preset (10 presets by remote controller)

Package : Power supply,RS232 control cable, USB3.0 cable ,Remote controller, User manual

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES



Key Features

  • 4K Ultra HD Image: Built with SONY high quality CMOS sensor, ,with resolution up to 4K@60fps.
  • Optical Zoom Lens

12x optical zoom lens, with 80.4° FOV without distortion.

  • Leading Auto Focus Technology

Fast, accurate and stable auto focus is achieved with leading auto focus algorithm .

  • Low Noise and High SNR

Super high SNR image is achieved with low noise CMOS. The adoption of advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.

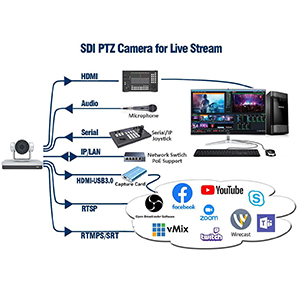

  • Multiple video output interfaces

With video 4k output from HIMI, USB3.0 and LAN at the same time.

  • Multiple Audio/Video Compression Standard

Support H.264/H.265 video compression over LAN, support MJPG, H.264, YUY2 and NV12 over USB3.0 port , support AAC, MP3 and G.711A audio compression over A-in port.

  • Audio Input Interface

Support 8000,16000,32000,44100,48000 sampling frequency and AAC,MP3,PCM audio coding.

  • Multiple Network Protocol

Support ONVIF, GB/T28181, RTSP, RTMP ,NDI protocols; support RTMP push mode, which can easily link with streaming media server (Wowza, FMS); support RTP multicast mode, support VISCA control protocol over Network.

  • Multiple Control port

RS422 (work with RS485), RS232 IN/OUT

  • Multiple Control Protocols

     Support VISCA, PELCO P/ D protocols

  • Multiple Presets

Support up to 255 presets (10 presets by remote controller)

  • Wide Application

Tele-education, Lecture Capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation and Emergency command systems



Relate series,click for more info

Specification

Model Number Z300
Camera/ Lens Parameters
Image Sensor 1/2.5 Inch SONY High Quality 4K CMOS Sensor
Effective pixels 8.51MP effective pixels, 16:9
Video Format HDMI video output format



4KP@60fps,4KP@50fps,4KP@30fps,4KP@25fps,1080P@60fps,1080P@50fps,1080I@60fps,1080I@50fps,1080P@30fps,1080P@25fps,720P@60fps,720P@50fps;

USB3.0 video output format

YUY2/NV12:1920×1080P30fps,1280×720P30fps,1024×576P30fps,

960×540P30fps,800×448P30fps,640×360P30fps,640×480P30fps,320×176P30fps

MJPEG/H.264:3840×2160P30fps,1920×1080P30fps,1280×720P30fps,1024×576P30fps,960×540P30fps,800×448P30fps,640×360P30fps,640×480P30fps,320×176P30fps

USB2.0 video output from USB3.0

YUY2/NV12:640×360P30fps,640×480P30fps,320×176P30fps

MJPEG/H.264:3840×2160P30fps,1920×1080P30fps,1280×720P30fps,1024×576P30fps,960×540P30fps,800×448P30fps,640×360P30fps,640×480P30fps,320×176P30fps

Optical Zoom 12X
View Angle Horizontal: 7.59°(tele)~80.4°(wide)



Tilt:4.6°(tele)~50.0°(wide)

Focus f=3.85 mm~ 43.06 mm ±5%
Aperture F1.8 ~ F3.56±5%
Minimum Illumination 0.05Lux(F1.8, AGC ON)
DNR 2D &3D DNR
White Balance Auto / Manual/ One Push/ Specified color temperature
Focus Auto / Manual/ One Push
Exposure mode Auto / Manual / Shutter Priority / Iris Priority / Whiteness Priority
Iris F1.8 ~ F11、CLOSE
Shutter Speed 1/25~1/10000
Dynamic range OFF/ Dynamic level adjustment
BLC ON/ OFF
Video Adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
DNR ≥50dB
