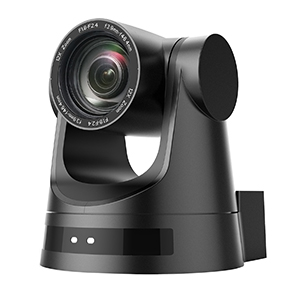

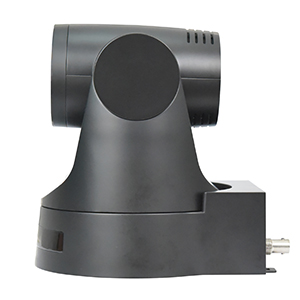

Z210 HD PTZ camera

Full HD, wide viewing angle, multiple interfaces, multiple protocols, and multiple lenses

Z210 has perfect functions, excellent performance and rich interfaces; The advanced ISP processing technology and algorithm make the image effect vivid and realistic, the picture brightness uniform, the sense of light and color gradation strong, the definition is high, and the color restoration is good.

Product features

 First-class image quality: 1/2.8 inch 2.07 megapixel high-quality CMOS image sensor with maximum resolution of 1920 × 1080, the output frame rate is up to 60 frames/second, presenting clear and realistic high-definition video, vividly displaying the expression and action of the characters.

 83.7 ° wide angle lens: with 5, 10, 12, 20, 30 times and other optical zoom lens options, and 05 times lens has 83.7 ° distortion-free wide angle of view.

 Trinity image auto-focusing technology: focus on intelligent image processing, provide automatic white balance (AWB), automatic exposure (AE), and automatic focus (AF) functions, fully automatically adapt to the environment, achieve the best image effect, and achieve perfect Trinity image auto-adjustment.

 Low noise and high signal-to-noise ratio: low noise CMOS effectively guarantees the ultra-high signal-to-noise ratio of camera video. Advanced 2D and 3D noise reduction technology is adopted to further reduce noise while ensuring image clarity.

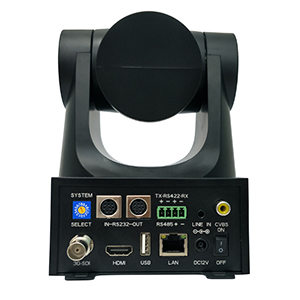

 Rich and complete lossless high-definition output interfaces: support HDMI, SDI, CVBS, LAN interface, WiFi optional; HDMI, SDI and LAN interfaces support simultaneous audio and video output; SDI supports transmission of 100 meters in 1080P60 format.

 Multiple audio and video compression standards: LAN interface supports H.265 and H.264 video compression; The A-IN interface supports 8000, 16000, 32000, 44100 and 48000 sampling frequencies, and supports AAC, MP3 and G.711A audio compression.

 Audio and video storage: USB2.0 interface supports U-disk storage function to realize local recording and storage.

 Built-in gravity sensor: Built-in gravity sensor, supporting automatic tilt function of PTZ, convenient for engineering installation.

 Multiple network protocols: support ONVIF, GB/T28181, RTSP and RTMP protocols; Support RTMP push mode and easily link streaming media servers (Wowza, FMS); It supports RTP multicast mode and network full-command VISCA control protocol.

 Multiple control interfaces: RS422 is compatible with RS485, RS232-IN and RS232-OUT; RS232 supports cascade, which is convenient for engineering installation and use.

 Multiple control protocols: support VISCA, PELCO-D, PELCO-P protocols, and automatic identification protocols.

 Super silent PTZ: high-precision stepping motor and precision motor drive controller are used to ensure PTZ operates smoothly and noiseless.

 Multiple preset positions: up to 255 preset positions are supported (10 are set and called by the remote controller).

 Multiple remote controls: users can choose infrared remote control or wireless remote control according to the environmental conditions they use. 2.4G wireless remote control is not affected by angle, distance and infrared interference. The remote control signal transmission function is supported to facilitate the use of back-end devices.

 Multiple applications: conference, education, medical treatment, government affairs, cloud video, collaborative office, multimedia integration, emergency command, broadcasting, justice, public security, military and other system applications.
