Z20U-HS Information & Communication HD Camera

 Product Description

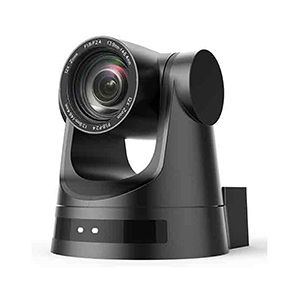

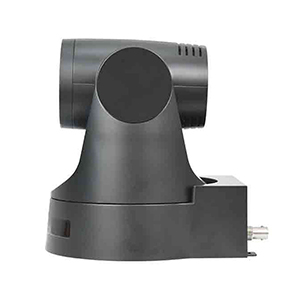

        Z20U-HS 2.0 MP 1080P60 12X 20X 30X Zoom PTZ USB Cameras SDI IP HDMI CVBS RS232 RS485 Audio Input for Video Conferencing

Key Features

◆Full HD Image
1 / 2.8 inch 2.07 MP high quality sensor, with maximum resolution of 1920×1080 and output frame rate up to 60 frames per second.

◆Various Optical Zoom lenses
12X, 20X, 30X zoom lens for your choice, the lens has a wide viewing angle of 83.7 ° without distortion.

◆ Low Noise and High SNR
Low-noise CMOS effectively ensure a very high SNR for video. The digital 2D & 3D noise reduction technology further reduces noise while ensuring image clarity.

◆Trinity image auto-focus technology

Pay attention to the intelligent processing of the image, provide automatic white balance (AWB), auto exposure (AE), auto focus (AF) functions, fully automatically adapt to the environment, achieve the best image effect, and achieve a perfect trinity image Automatic adjustment.

◆ Multiple Audio and Video Compression Standards
LAN interface support H.265 / H.264 video compression, audio-in interface support 8000、16000、32000、44100、48000 sampling frequency. support AAC, MP3, G.711A audio compression; support up to 1920×1080 resolution 60 frames per second compression.

◆ Multiple Preset Positions
Support up to 255 preset positions (the remote control setting 10 positions).

◆Audio and video storage
USB2.0 port supports U disk storage function to achieve local recording and storage.

◆ Built-in gravity sensor

Built-in gravity sensor, support PTZ automatic flip function, convenient for engineering installation.

◆ Multiple network protocols

Support ONVIF, GB/T28181, RTSP, RTMP protocol; support RTMP push mode, easily link to streaming media servers (Wowza, FMS); support RTP multicast mode, support network full command VISCA control protocol.

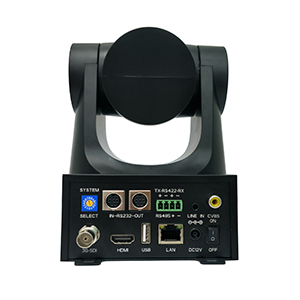

◆Multiple control interfaces

RS422 is compatible with RS485, RS232-IN, RS232-OUT; RS232 supports cascade connection, which is convenient for engineering installation and use.

◆ Multiple control protocols

Support VISCA, PELCO-D, PELCO-P protocols, and support automatic identification protocols.

◆ Super silent pan-tilt

Adopts high-precision stepping motor and precision motor drive controller to ensure smooth pan-tilt operation and no noise.

◆Multiple remote controls
Users can choose infrared remote control or wireless remote control according to the environmental conditions used. The 2.4G wireless remote control is not affected by angle, distance, and infrared interference. Support remote control signal transparent transmission function, convenient for back-end equipment use.
​
◆More use cases
Video conferenceing, education, medical care, government affairs, cloud video, collaborative office, multimedia integration, emergency command, broadcasting, justice, public security, military and so on.

Relate series,click for more info

Specification
