Z1200 Full HD Box Camera

Full HD, Large Zoom Range, Multiple Video Interfaces

The Z1200 series camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.

Key Features

• Superb High-definition Image

Z1200 employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.

• Trinity image auto-focusing technology

Focus on intelligent image processing, to provide automatic white balance (AWB), automatic exposure (AE), automatic focusing (AF) function, fully automatically adapt to the environment, to achieve the best image effect, perfect trinity image automatic adjustment.

• Low Noise and High SNR

Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.

• Multi-Format Video Outputs

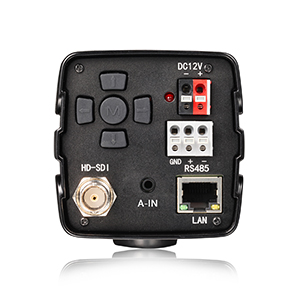

Multiple interfaces include: HDMI, 3G-SDI and LAN. The 3G-SDI is available for 100m transmission at 1080p60 format.

• Multiple Video Compression

Support H.264/H.265 video compression; Support compression of resolution up to 1920×1080 with frame up to 60fps;

• Multiple audio compression standards: support AAC, MP3, G.711A audio compression;
• Audio input interface: Support 8000, 16000, 32000, 44100, 48000 sampling frequency, support AAC, MP3, G.711A audio coding.
• Multiple Network Protocol

Support ONVIF, RTSP, RTMP, GB/T28181 protocols and support RTMP push mode, easy to link streaming media server (Wowza,FMS)；RTP multicast mode and network full command VISCA control protocol.

• Support Multiple Control Protocol.

Support VISCA,PELCO-D,PELCO-P protocols which can also be automatically recognized. Support Visca protocol control through IP port.

• Wide Application

Tele-education, Lecture Capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation and Emergency command systems.
