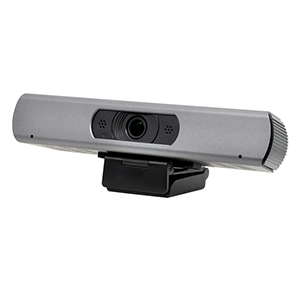

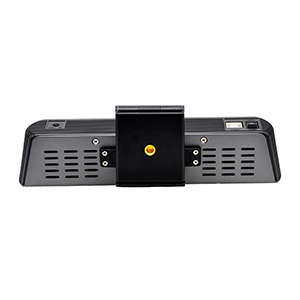

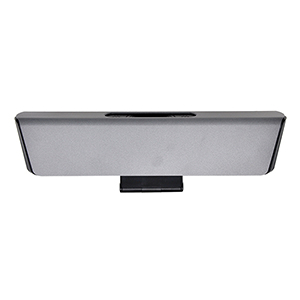

V31U FHD USB Camera
V31U FHD USB Camera
V31U FHD USB Camera
V31U FHD USB Camera
V31U FHD USB Camera

V31U FHD USB Camera

Want create site? Find Free WordPress Themes and plugins.      Product Description V31U is a professional camera that supports FHD 1080P image capture. The product supports 1 USB 2.0 output. 120 °wide angle field and st

The most cost-effective hd video encoder h.264 : No MOQ Limited

Protocol : RTMPS ,HTTP, RTSP, RTMP, ONVIF, UDP multicast, unicast

Coding standard : camera

Encoded size : Up to 1920*1080 60FPS

Video bit rate : 5-60 fps

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES





 Product Description

V31U is a professional camera that supports FHD 1080P image capture. The product supports 1 USB 2.0 output. 120 °wide angle field and strong compatibility. Easy to use. Widely used in webcasts, video conferences, Tele-Education and training, Tele-Surgery, game streaming, interviews, roadshows and so on. 120 °fixed focus lens and 84 °auto focus lens for your optional



Key Features

◆ 1080P Full HD & Ultra Wide Angle

1080P full hd with ultra-high wide-angle, which could provide a maximum of 1080P @ 30fps / 25fps image output, and it’s also backward compatible with resolutions such as 720p. Wide FOV and horizontal FOV up to 120 °

◆ USB 2.0

Multifunction USB 2.0 interface with power supply, video and audio. It also support 2 USB video signal sources, 1 audio source at the same time.

◆ Built-in microphone

Not only built-in microphone array to capture more realistic sound from all angles within 6 meters, making your sound sound natural and clear besed on our noise reduction chip. But also provides microphone in interface for external audio

◆ Low illumination

The Starlight CMOS image sensor with 55 dB high signal noise ratio can effectively reduce image noise in low-light conditions. At the same time, 2D and 3D noise reduction algorithms could greatly reduce image noise. The screen still keep clean and clear even in ultra-low light conditions.

◆Power Supply

Use fixed wired power cable to connect power supply, more secure and stable

◆ Easy installation

Equipped with a damping rotating shaft bracket as standard, it is suitable for mainstream monitors on the market, and it can be installed stably and reliably.

Relate series,click for more info

Product Specification

model V31U FHD USB Camera
sensor 1/2.7”, CMOS, Effective Pixel: 2.07M
Input & Output 1xUSB 2.0: Type A
Lens feature Resolution 1080P@30fps/25fps, backward compatible with 720P etc.
scanning method Progressive
Lens options (stand)Lens 1:focus: f = 3.1mm, horizontal FOV: 120°



(optional)Lens 2:focus: f = 3.4mm, horizontal FOV: 90°

(optional)Lens 3:focus: f = 3.5mm, horizontal FOV: 84°

Lens mount M12
auto focus Support(only 84°lens)
Minimum illumination 0.5Lux@(F1.8,AGC ON)
shutter 1/30s~1/10000s
White balance Auto/manual/VAR
BLC Support
Digital noise reduction 2D&3D digital noise reduction
USB feature Color System / Compression H.264/MJPEG/YUY2
Operate System Windows7 (Only supports 1080p and under 1080p)



Windows 8.1,

Windows 10 or macOSTM 10.10 or GoogleTM ChromebookTM Version 29.0.1547.70 or Linux (need support UVC)

Hardware requirements 2.4 GHz Intel® Core 2 Duo processor or higher



2 GB RAM or more

USB 2.0 port

Video format 1080p@30fps/25fps, 720p@30f ps/25fps, 960x540p@30fps/25fps, 640x360p@30 fps/25fps
USB video communication protocol UVC 1.0
General specification Electrical parameters 5V(USB power supply);270mA ;1.4W
Power switch Support
Operating temperature -10℃~40℃
Storage Temperature -40℃~60℃
Power Consumption MTBF 30000H
Size 118mm*37.2mm*30.8mm
Net Weight 0.093kg
Our company reserves the right to adjust product parameters. If you have any questions, please contact us to check
