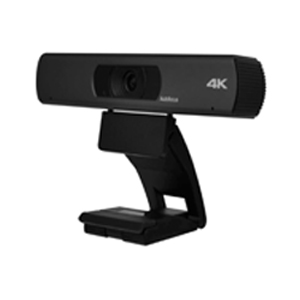

V30K-Pro UHD USB Camera
V30K-Pro UHD USB Camera
V30K-Pro UHD USB Camera
V30K-Pro UHD USB Camera

V30K-Pro UHD USB Camera

Want create site? Find Free WordPress Themes and plugins.  Product Description V30K Pro is a professional camera that supports UHD 4K image capture. The product supports 1 USB 3.0 and 1 HDMI output at the same time.Besides 84 °wide FOV

V30K-Pro UHD USB Camera : No MOQ Limited

Protocol : RTMPS ,HTTP, RTSP, RTMP, ONVIF, UDP multicast, unicast

Coding standard : camera

Encoded size : Up to 1920*1080 60FPS

Video bit rate : 5-60 fps

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES

 Product Description

V30K Pro is a professional camera that supports UHD 4K image capture. The product supports 1 USB 3.0 and 1 HDMI output at the same time.Besides 84 °wide FOV autofocus,there are 46 °or 120 °wide angle field lens for your choose. V30K Pro has strong compatibility and Easy to use. widely used in webcasts, video conferences, Tele-Education and training, Tele-Surgery, game streaming, interviews, roadshows and so on.



Key Features

◆ 4K Ultra HD

4K UHD with ultra-high resolutions, which could provide a maximum of 4K @ 30fps / 25fps image output, and it’s also backward compatible with resolutions such as 1080P,720p.

◆USB 3.0

Multifunction USB 3.0 interface with power supply, video and audio.

Also supports 1 USB 3.0 and 1 HDMI output at the same time.

◆AF Lens

Fully customized auto focus distortion-free lens, 120 °wide-angle fov give you wider vision. EPTZ is also supported to keep the image more clearly.

◆ Built-in microphone

Not only built-in microphone array to capture more realistic sound from all angles within 6 meters, making your sound sound natural and clear besed on our noise reduction chip. But also provides microphone in interface for external audio

◆ Low illumination

The Starlight CMOS image sensor with 55 dB high signal noise ratio can effectively reduce image noise in low-light conditions. At the same time, 2D and 3D noise reduction algorithms could greatly reduce image noise. The screen still keep clean and clear even in ultra-low light conditions.

◆WDR

Support WDR, easily cope with different lighting environments, even the harsh environment can stay picture undistorted.

◆ Easy installation

Equipped with a damping rotating shaft bracket as standard, it is suitable for mainstream monitors on the market, and it can be installed stably and reliably.

Relate series,click for more info

Specification

model V30K Pro UHD USB Camera
sensor 1/2.5”, CMOS, Effective Pixel: 8M

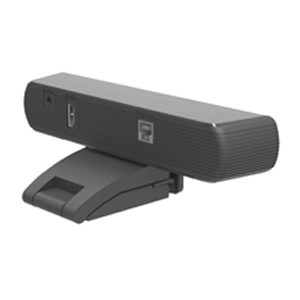

Input & Output 1xUSB 3.0: Type B:Female, HDMI:1.4
 Image Freeze Support
Lens feature Resolution 4K@30fps/25fps, backward compatible with1080P, 720P etc.
scanning method Progressive
Lens options (stand)Lens 1:focus: f = 3.5mm, horizontal FOV: 84°



(optional)Lens 2:focus: f = 2.8mm, horizontal FOV: 120°

(optional)Lens 3:focus: f = 7.35mm, horizontal FOV: 46°

Lens mount M12
auto focus Support(except 120°lens)
Minimum illumination 0.5Lux@(F1.8,AGC ON)
shutter 1/30s~1/10000s
White balance Auto/manual/VAR/indoor/outdoor/one click
BLC Support
Digital noise reduction 2D&3D digital noise reduction
USB feature Color System / Compression H.264/MJPEG/YUY2/NV12
Operate System Windows7 (Only supports 1080p and under 1080p)



Windows 8.1,

Windows 10 or macOSTM 10.10 or GoogleTM ChromebookTM Version 29.0.1547.70 or Linux (need support UVC)

Hardware requirements 2.4 GHz Intel® Core 2 Duo processor or higher



2 GB RAM or more

USB 2.0 port( 4K need USB 3.0)

Video format 4k@30fps/25fps, 1080p@60fps/50fps /30fps/25fps, 720p@60fps/50fps/30f ps/25fps, 960x540p@60fps/50fps/30fps/25fps, 640x360p@60fps/50fps/30 fps/25fps
USB video communication protocol UVC 1.0
UVC PTZ control EPTZ Suppoort
General specification Electrical parameters 5V(USB power supply);600mA ;3W
Operating temperature -10℃~40℃
Storage Temperature -40℃~60℃
Power Consumption MTBF 30000H
Size 194mm*34mm*42mm
Net Weight 0.34kg
Our company reserves the right to adjust product parameters. If you have any questions, please contact us to check
