V1 LIVE CAMERA
V1 LIVE CAMERA
V1 LIVE CAMERA
V1 LIVE CAMERA
V1 LIVE CAMERA

V1 LIVE CAMERA

Want create site? Find Free WordPress Themes and plugins.   Product Description The V1 FHD IP camera is highly embedded hardware. Allowed customers to transmit UP to 1080P 60, video over IP- HTTP/ RTSP over UDP-TCP/ RTMP(Push/ pull

Protocol : RTMPS, HTTP, RTSP, RTP, TCP, RTMP, HLS, UDP multicast, unicast

Coding standard : H.264,H.265

Encoded size : Up to 1920*1080 60FPS

Video bit rate : 5-60 fps

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES

live camera



Product Description

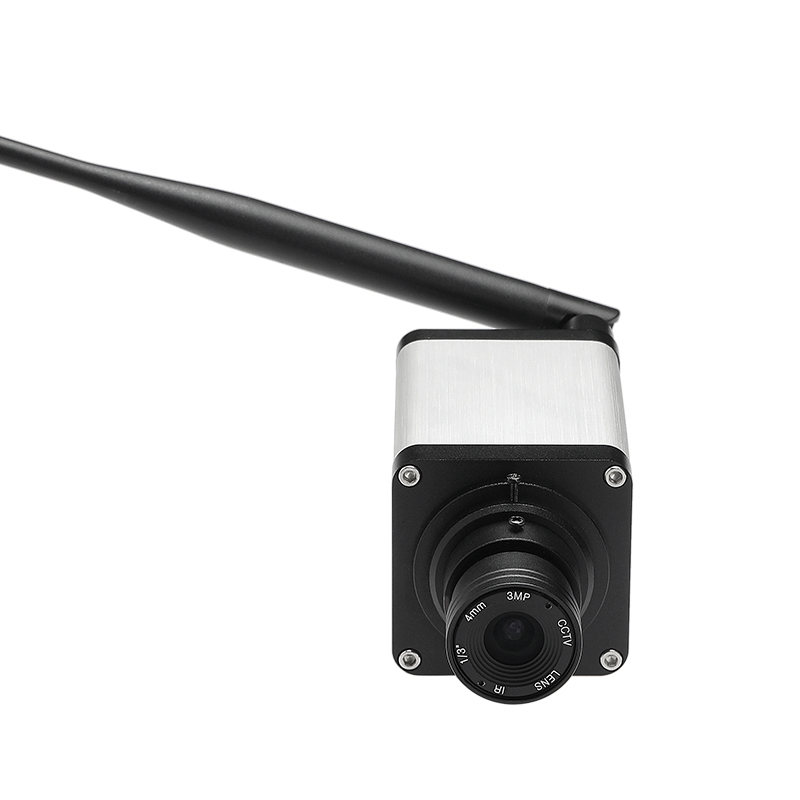

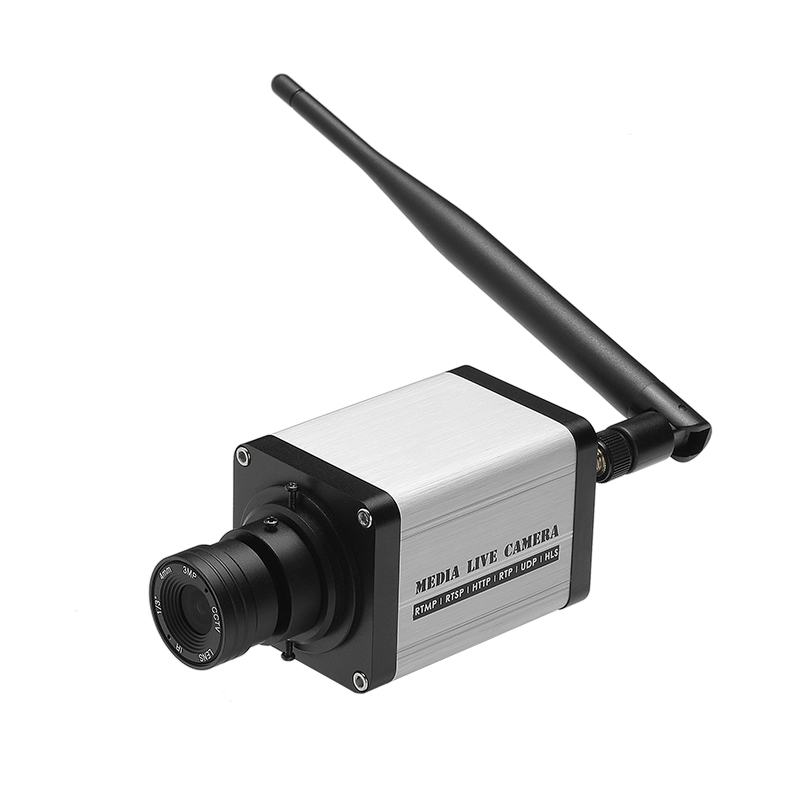

The V1 FHD IP camera is highly embedded hardware.

Allowed customers to transmit UP to 1080P 60,

video over IP- HTTP/ RTSP over UDP-TCP/ RTMP(Push/ pull)

/ UDP/ RTP/ HLS/ ONVIF/ SL hyperlink (P-P).



❶ Encoding: AVC H.264/ HEVC H.265
❷ Video packaging: FFMPEG/ VLC.
❸ PTZ, RS485, USB
❹ Storage: TF card (able to download on web),
video management platform, LiveX.
❺ Auido gain, supports AAC (HE/ LC) / G.711 encoding.
❻ Video Bit: Rate control: CBR/VBR 16KBIT/S~12MBIT/S
Audio sampling rate: 32000、44100, 48000 etc. encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K.
❼ Dual stream out, main up to 1080P 60, sub up to 720P 60, available to customize.
❽ OSD: Text, image.
❾ Line-in audio (active audio source required).
❿ Shell: 100mm * 118mm * 40mm, shell: aviation aluminum.
⓫ Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
⓬ Encoding level: 1, 2, 3, 4 and 5 (the higher the level, the larger of the code flow fluctuation ratio)
⓭Transmission layer: TCP, UDP, gigabit Ethernet port.
⓮Timing setting: adjust X/ Y line, size, color
⓯ Lens optimization: AE, exposure, AWB, IDC, Fog, bad point correcting, denoise

Specification

model V1 FHD IP camera
Sensor 4 megapixel 1/3 Ultra low illumination CMOS sensor. 3.5 audio Jack,

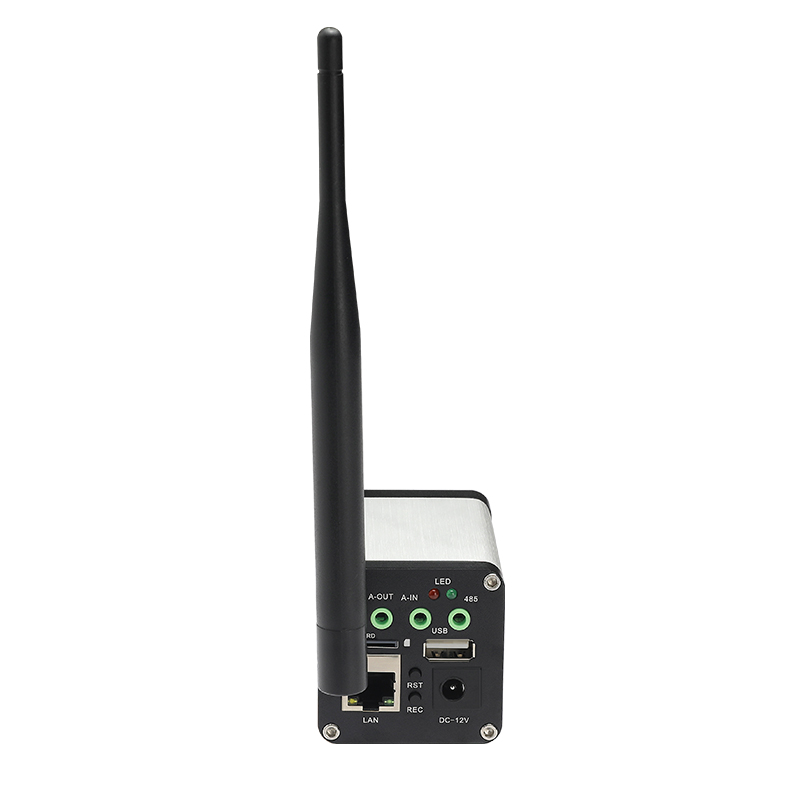

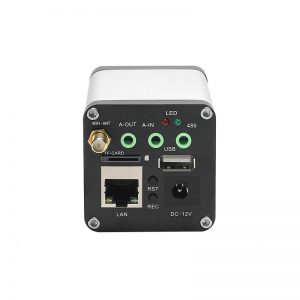

Output 1* IP; 1* 3.5 audio Jack; TF card, RS485, USB
Video Input resolution 1080P
Coding standard H.265/ H.264
Coding level H.265 MAIN PROFILE
H.264 BASELINE PROFILE
H.264 MAIN PROFILE
H.264 HIGH PROFILE
Encoded size 640*360~1920*1080(Can customize)
Video bit rate Rate control: CBR/VBR 16KBIT/S~12MBIT/S
Video frame rate 1080P 60, 720P 60 (30/ 60)
OSD Text, Image
Audio Input selection 1* 3.5MM line-in audio, support audio gain
Audio coding AAC(HE/ LC)/ G.711
Audio bit rate 64Kb/s~256Kb/s
Sampling rate 32000, 44100, 48000 etc
IP output 1 RJ 1000M adaptive Ethernet port, dual-bitrate( H.265/264 TS stream)
System Network protocol RTMPS, HTTP, RTSP, RTMP, RTP, ONVIF, HLS, SL hyperlink, UDP multicast, unicast
Configuration management User interface, remote upgrade, Andriod APP, multi-one management platform
  Power supply 12V~2A
power consumption 5W
Size 100mm * 115mm * 40mm(L*W*H)
Operating temperature -20℃+ 60℃
Working humidity <90%,Non-condensing
Weight 0.3KG
Haiwei reserves the right to adjust the product parameters, if you have any questions please contact us to check
