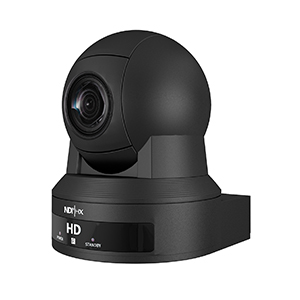

T600A Information & Communication HD Camera

T600A Information & Communication HD Camera

Want create site? Find Free WordPress Themes and plugins. T600A Series Selling Points:◆Full HD: 1080p60/50◆Lens&Hov:12X optical zoom, Wide Angle: 72.5° (20x + 58.7° optional)◆Abundant Outputs: 1.DVI+SDI+USB2.0+IP 2.

Image Sensor : SONY 1/2.8’’ Progressive CMOS

Resolution HD : 1080p60/50,1080i60/50,1080p30/25,720p60/50

Exposure Control : Auto/Manual/Priority AE/Exposure Compensation/ Bright

White Balance : Auto/ Indoor/Outdoor/Manual

Accessories : DC 12V power adapter, IR Remote, Operation manual, RS-232C Cable, DVI adapter, HDMI cable, USB cable, Ceiling bracket

Phone:+86 18926159746 020-36164006

T600A Series Selling Points:◆Full HD: 1080p60/50◆Lens&Hov:12X optical zoom, Wide Angle: 72.5° (20x + 58.7° optional)◆Abundant Outputs:
1.DVI+SDI+USB2.0+IP

2.UVC control optional

3.POE power supply optional

◆Dual IP-Stream:

H.264 and MJPEG compression enabling Full HD video stream by ultra low bandwidth over RTSP, TCP/IP, HTTP, etc 

◆Low Noise 

◆Low Light:

High video quality in low light conditions

Main Applications:

High Definition (HD) video conferencing cameras T600R & T600A are widely used in Video Conference System, remote learning, Telemedicine, Church, Scene of the incident, courts, media centers, chain stores, transportation, airports and other monitoring sites.

Relate series,click for more info

Specification

Item No.	T600A	T600A
Image Sensor	SONY 1/2.8″ Progressive CMOS
Effective Pixels	3.10 Megapixels	3.50 Megapixels
Resolution HD	1080p60/50,1080i60/50,1080p30/25,720p60/50
Signal System	PAL/NTSC

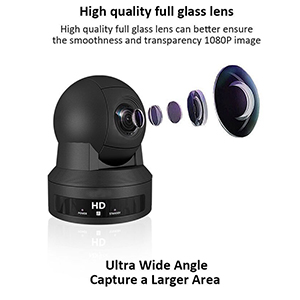

Lens	12X optical zoom f=3.9mm(w)~46.8 mm(f) F1.8~F2.8	20X optical zoom f=4.7mm(w)~94.0 mm(f) F1.6~F2.8
Horizontal View Angle	72.5°(W)~7.4°(T)	58.7°(W)~3.2°(T)
Pan	355°(max. speed:80°/s)
Tilt	-30° to +90° (max. speed: 60°/s)
Focus System	Auto/Manual
S/N Ratio	≥50db
Preset Position	9 preset positions by IR remote controller, 255 preset positions by Keyboard
Minimum Illumination	0.1Lux
Exposure Control	Auto/Manual/Priority AE/Exposure Compensation/ Bright
Shutter Speed	1/1～1/10,000s
Gain	Auto/Manual
White Balance	Auto/ Indoor/Outdoor/Manual
Image Effect	Full color/black and white/Electronic flip

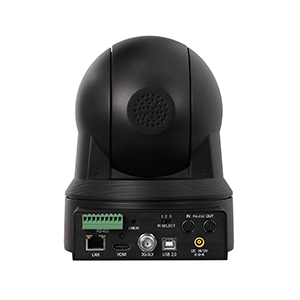

Video Output HD	DVI(HDMI), 3G/HD-SDI, USB2.0, IP
Other Input	Line In
Control Protocol	SONY VISCA, PELCO P/D
Control Mode	RS-232C, RS-422/485
Power	12V DC(10.8～13.0V DC)
Power Consumption	Max. 30W(DC 12V)
Operating Temperature	0~40℃
Storage Temperature	-20-60℃
Dimensions	(L)170 ×(W)150 ×(H)190mm
Weight	1550g
Color	Black
Accessories	DC 12V power adapter, IR Remote, Operation manual, RS-232C Cable, DVI adapter, HDMI cable, USB cable, Ceiling bracket
Carton	Each camera in a small carton, then 4 pcs packaged in one large carton
Certificate	ISO/CE/FCC/RoHS
Warranty	1 years
