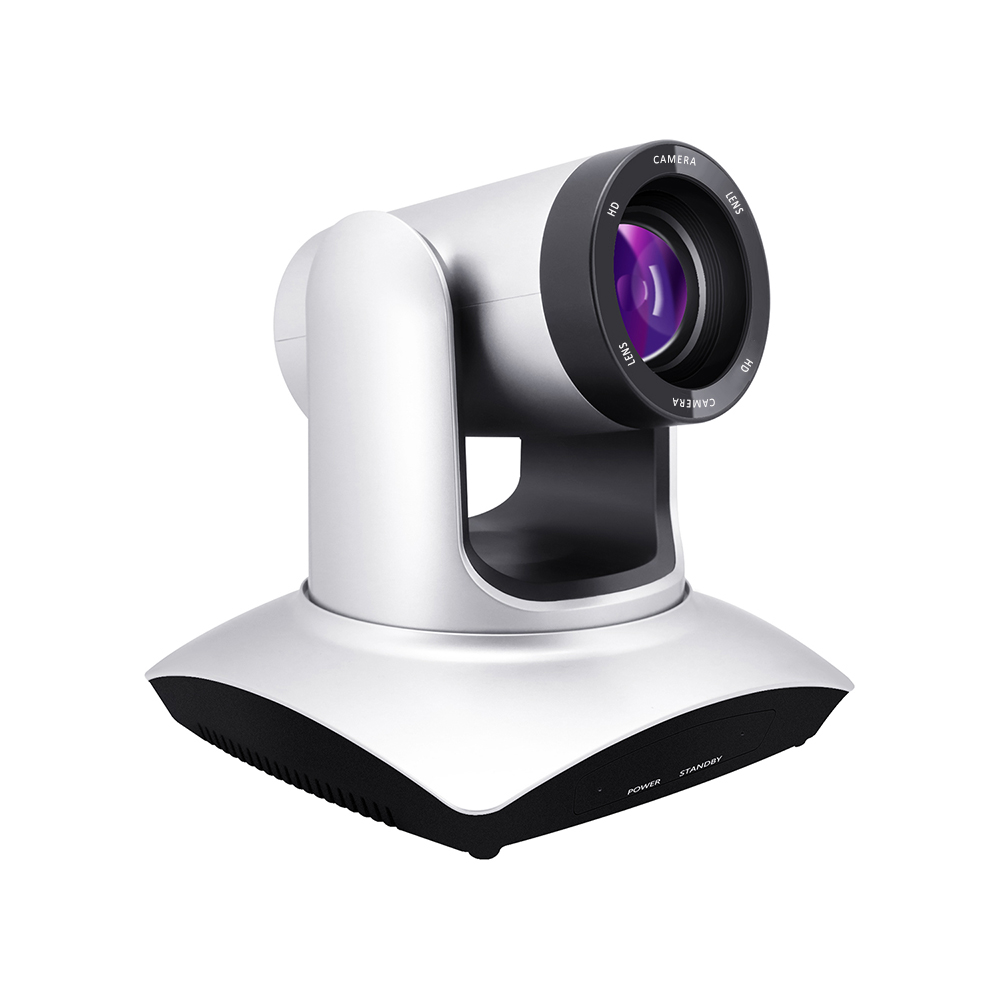

T200AS Information & Communication HD Camera

T200AS Information & Communication HD Camera

Want create site? Find Free WordPress Themes and plugins. 1080P HD resolution, 12x/ 20x optical zoom, support close-up snapshots at a long distance Support 3g-SDI, HDMI and IP adapt to various conference and video applications HDM

Image Sensor : SONY 1/2.8’’ Progressive CMOS

Image Effect : 1080P60/50,1080P30/25,1080i60/50,720P60/50 Optional

Video Output HD : HDMI/3G-SDI/RJ-45/ IP

Control Mode : RJ-45. RS232 IN/ OUT

Image Effect : Full color//Electronic flip

Phone:+86 18926159746 020-36164006

1080P HD resolution, 12x/ 20x optical zoom, support close-up snapshots at a long distance
Support 3g-SDI, HDMI and IP adapt to various conference and video applications
HDMI mainstream interface, can support the docking and matching of mainstream devices
355-degree rotating pan/tilt, can capture multi-angle video
5° / 58.7°wide angle lens, meet the demand of large view even in small room
Compatible with SONY VISCA protocol and PELCO P/D protocol
Support image flip (suitable for desktop and ceiling installation)

Relate series,click for more info

Specification

Product name	T200RS	T200AS
Image Sensor	SONY 1/2.8’’ Progressive CMOS
White Balance	3.5 Megapixels	3.5 Megapixels
Image Effect	1080P60/50,1080P30/25,1080i60/50,720P60/50
	Optional:1080p59.94,1080p29.97,1080i59.94
Signal System	PAL/NTSC
Lens	12X zoom optional f=3.9mm(wide angle end)～46.8mm(far end)	20X zoom optional f=4.7mm(wide angle end)～94.0mm(far end)
Horizontal View Angle	72.5°(W)~7.4°(T)	58.7°(W)~3.2°(T)
Focus System	Auto/Manual
Minimum Illumination	0.1 Lux
Shutter Speed	1/1~1/10000S
Gain	Auto/Manual
White Balance	Auto/Manual/Indoor/Outdoor
Image Effect	Full color//Electronic flip
S/N Ratio	≥50db
Pan	355°(max. speed:80°/s)
Tilt	﹣30° to +90° (max. speed: 60°/s)
Preset Position	9 preset positions by IR remote controller
Video Output HD	HDMI/3G-SDI/RJ-45/ IP
Control Mode	RJ-45. RS232 IN/ OUT
Power	12V DC(10.8~13.0V DC)
Operating Temperature	0℃~40℃
Storage Temperature	-20℃~60℃
Dimension	(L)181×(W)181×(H)176mm
Consumption	Max.12W (DC 12V)
Weight	1525g
Color	Silver
Control Protocol	SONY VISCA、PELCO P/D
Network protocol	VISCA over IP、 RTSP、RTMP、ONVIF; NDI (optional)
Control Mode	RS-232C、RS-422/485
Accessories	DC 12V power adapter, IR Remote, Operation manual, HDMI Cable, USB cable, RS-232 cable, Ceiling bracket
Carton	Each camera in a small carton, then 4 pcs packaged in one large carton.
Certificate	ISO/CE/FCC/RoHS
Warranty	1 years
