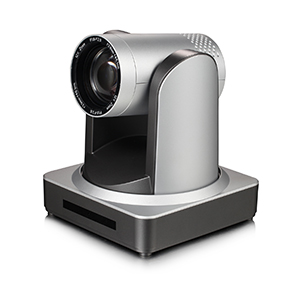

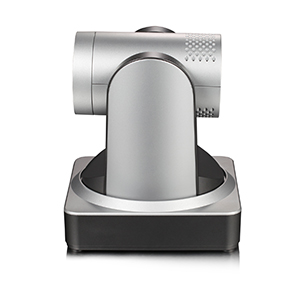

HD PTZ camera Z200 series

Full HD, wide viewing angle, multiple interfaces, multiple protocols, and multiple lenses

Z200 series has perfect functions, excellent performance and rich interfaces; The advanced ISP processing technology and algorithm make the image effect vivid and realistic, the picture brightness uniform, the sense of light and color gradation strong, the definition is high, and the color restoration is good. H.265/H.264 encoding is supported to make the picture smoother and clearer under low bandwidth.

Product features

 First-class image quality: 1/2.8 inch 2.07 megapixel high-quality image sensor is adopted, with maximum resolution of 1920×1080 and output frame rate of 60 frames/second.

 83.7 ° wide-angle lens: with multiple optical zoom lens options such as 5 times, 10 times, 12 times, 20 times, 30 times, and the lens has 83.7 ° distortion-free wide angle of view.

 Trinity image auto-focusing technology: focus on intelligent image processing, provide automatic white balance (AWB), automatic exposure (AE), and automatic focus (AF) functions, fully automatically adapt to the environment, achieve the best image effect, and achieve perfect Trinity image auto-adjustment.

 Low noise and high signal-to-noise ratio: low noise CMOS effectively guarantees the ultra-high signal-to-noise ratio of camera video. Advanced 2D and 3D noise reduction technology is adopted to further reduce noise while ensuring image clarity.

 Rich and complete lossless HD output interfaces: support HDMI, SDI, USB, wired LAN, wireless LAN interfaces (5GWiFi module, POE function optional); SDI supports transmission of 100 meters in 1080P60 format.

 Multiple audio and video compression standards: support H.265/H.264 video compression, support AAC, MP3, G.711A audio compression; Support up to 1920×1080 resolution 60 frames/second compression;

 Radio frequency: 4×4 MIMO and beamforming technology are adopted, with maximum transmission rate of 300Mbps, strong penetration and long transmission distance; 4 external antennas are adopted to improve the transmission effect;

 Audio input interface: support 8000, 16000, 32000, 44100, 48000 sampling frequencies, AAC, MP3, G.711A audio coding

 Multiple network protocols: support ONVIF, GB/T28181, RTSP and RTMP protocols; Support RTMP push mode and easily link streaming media servers (Wowza, FMS); It supports RTP multicast mode and network full-command VISCA control protocol.

 Control interface: RS485, RS232; RS232 supports cascade, which is convenient for engineering installation and use.

 Multiple control protocols: support VISCA, PELCO-D, PELCO-P protocols, and automatic identification protocols.

 Super silent PTZ: high-precision stepper motor and precision motor drive controller are adopted to ensure PTZ operates smoothly at low speed and without noise.

 Low-power sleep function: supports low-power sleep/wake-up, and the power consumption during sleep is less than 400mW.

 Multiple preset positions: up to 255 preset positions are supported (10 are set and called by the remote controller).

 Multiple remote controls: users can choose infrared remote control or wireless remote control according to the environmental conditions they use. 2.4G wireless remote control is not affected by angle, distance and infrared interference. The remote control signal transmission function is supported to facilitate the use of back-end devices.

 Multiple applications: distance education, teaching recording and broadcasting, conference system, remote training, telemedicine, court hearing system, emergency command system, etc.

Interface function performance

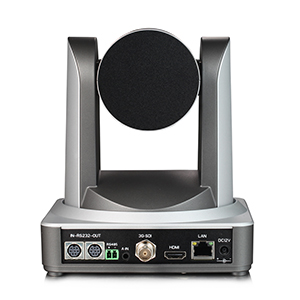

Model interface Z200 Model: SDI, HDMI, LAN, RS232 (ring pass), RS485, A-IN, NDI (optional)

Z200-U2 model: USB2.0, LAN, RS232 (ring pass), A-IN

Z200-U3 model: USB3.0, LAN, RS232 (ring pass), A-IN

Z200-HDBaseT model: HDBaseT (POE), LAN, A-IN, RS232 (input)

Z200-H-232 model: HDMI, LAN, RS232 (input)

Z200-U2U3 model: USB2.0, USB3.0, HDMI, LAN, RS232 (input)

Z200-5G-wifi models: 5Gwifi, HDMI, LAN, RS232 (ring pass), RS485, A-IN

Video output interface HDMI, SDI, LAN, USB3.0, USB2.0

Image bitstream dual bitstream output

Video compression format H.265, H.264

Audio input interface A-IN: two-channel 3.5mm linear input

Audio compression format AAC, MP3, G.711A

Network interface 100M network interface (10/100BASE-TX) 5GWiFi (optional)

Network protocols RTSP, RTMP, ONVIF, GB/T28181; Support network VISCA control protocol;

Support remote upgrade, remote restart and remote reset

Control interface RS232 (ring pass), RS485

Control protocol: VISCA/Pelco-D/Pelco-P; Baud rate: 115200/9600/4800/2400

Power interface HEC3800 power socket (DC12V)

2Pin waterproof aviation head power socket (RF model)

Power adapter input AC110V-AC220V output DC12V/1.5A

Input voltage DC12V ± 10%

Input current 1A (maximum)

Power consumption 12W (maximum)
