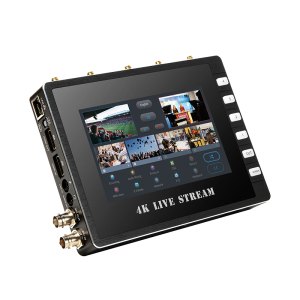

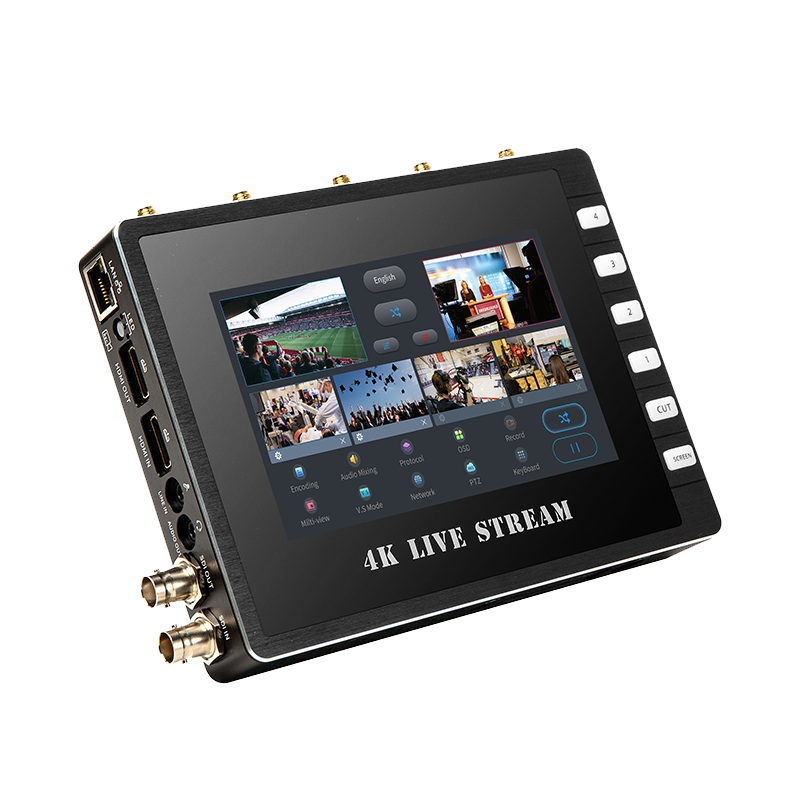

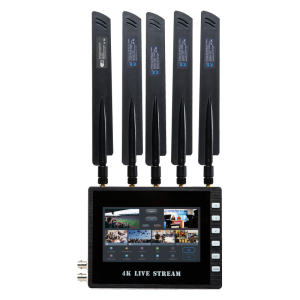

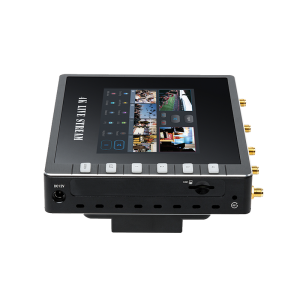

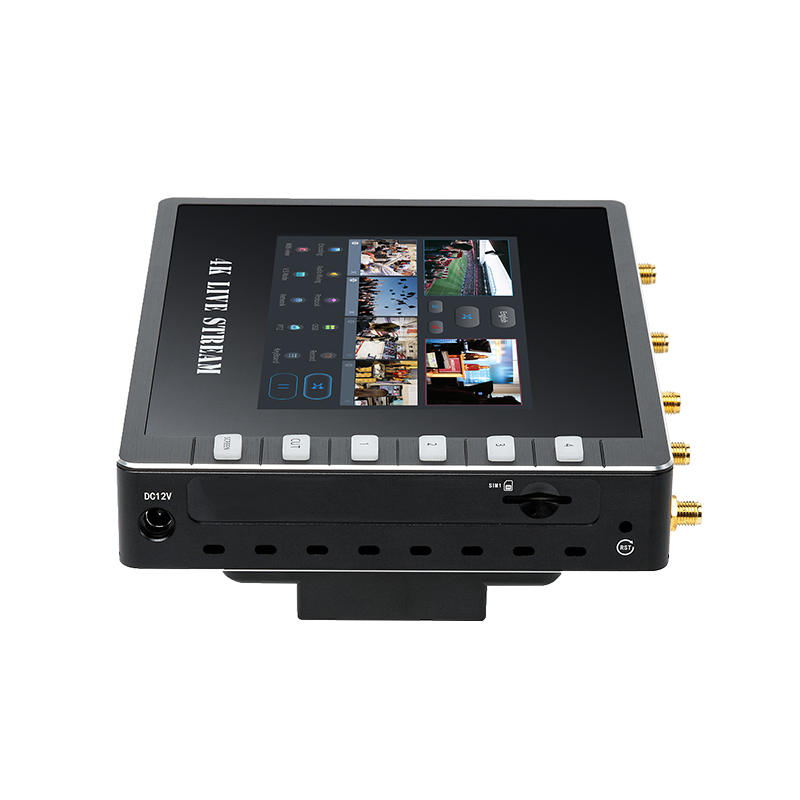

K21-5G 5G Switcher Mixer Decoder Encoder

K21-5G 5G Switcher Mixer Decoder Encoder

Want create site? Find Free WordPress Themes and plugins. K21-5G 4K 3-sim cellular Bonding encoder is an advanced bonding encoder that fully developed by Shenzhen haiwei vision technology, it allows to transmit max 3840* 2160 30 FPS video over

Protocol : HTTP, SRT,RTSP, RTP, TCP, RTMP, RTMPS, HLS, UDP multicast, unicast

Coding standard : H.265/H.264

Encoded size : Up to 3840*2160 30, 720P 120FPS

Video bit rate : 5-60 fps

Phone:+86 18926159746 020-36164006

K21-5G 4K 3-sim cellular Bonding encoder is an advanced bonding encoder that fully developed by Shenzhen haiwei vision technology, it allows to transmit max 3840* 2160 30 FPS video over 3 aggregated Sim cards, support simultaneously output to three different platform over RTMP (Main stream: 2 *4K for HDMI, 2^nd stream: 1* 1080), supports HTTP- RTSP over UDP/ TCP- RTMP- UDP Unicast/ multicast – ONVIF- HLS- P2P (Haiwei proprietary protocol) protocol.

K21-5GUser manual

Model	K21-5G
Input	1* HDMI, 1SDI 1 3.5MM audio Jack
Output	H.264/ H.265 TS stream, 1*3.5mm audio loop out
Video	Input Resolution	3840*2160 and below
	Encoding	H.265 main profile H.264 BASELINE PROFILE/ H.264 MAIN PROFILE/ H.264 HIGH PROFILE
	Encoded size	Up to 3840* 2160
	Bitrate	200 kb/s~512000 kb/s
	Frame	3840-2160-30 fps, 1920*1080-60 FPS
	OSD	Text, image
Audio	Input	1* HDMI embedded audio,1SDI embedded audio, 1 3.5 mm Audio Jack (active audio)
	Output	1* 3.5 mm audio Jack
	Encoding	AAC/ MP3/ G.711
	Bitrate	64Kb/s~384Kb/s
	Sampling	32000, 44100, 48000 etc
Internet	RJ45 1000M/100M adaptive network, 4G (3* Sim), WIFI
System	Network protocol	HTTP, RTSP, RTMP, RTMPS,SRT, UDP, Unicast, multicast, HLS, RTP, P2P, ONVIF
	ABR	Adaptive Bitrate streaming
	Configuration	Linux/ Windows/ Mac based IE browser, LiveX
	RS485	PELCO-D, PELCO-P
	4G router	1 to 3 sim card bond 4g router （WIFI hot spot）
	Storage	TF card (max 128G, Haiwei providing (paid): SanDisk CLASS10 64G TF card)
Others	Power	12V~2A
	Consumption	8W
	Size	150mm x 120mm x 30mm
	Battery	7.4V 6000 MAH Li-polymer
	temperature	-20℃+ 60℃
	Humidity	<90%, non-condensation
	Weight	0.5KG
All right reserved @Shenzhen haiwei vision technology
