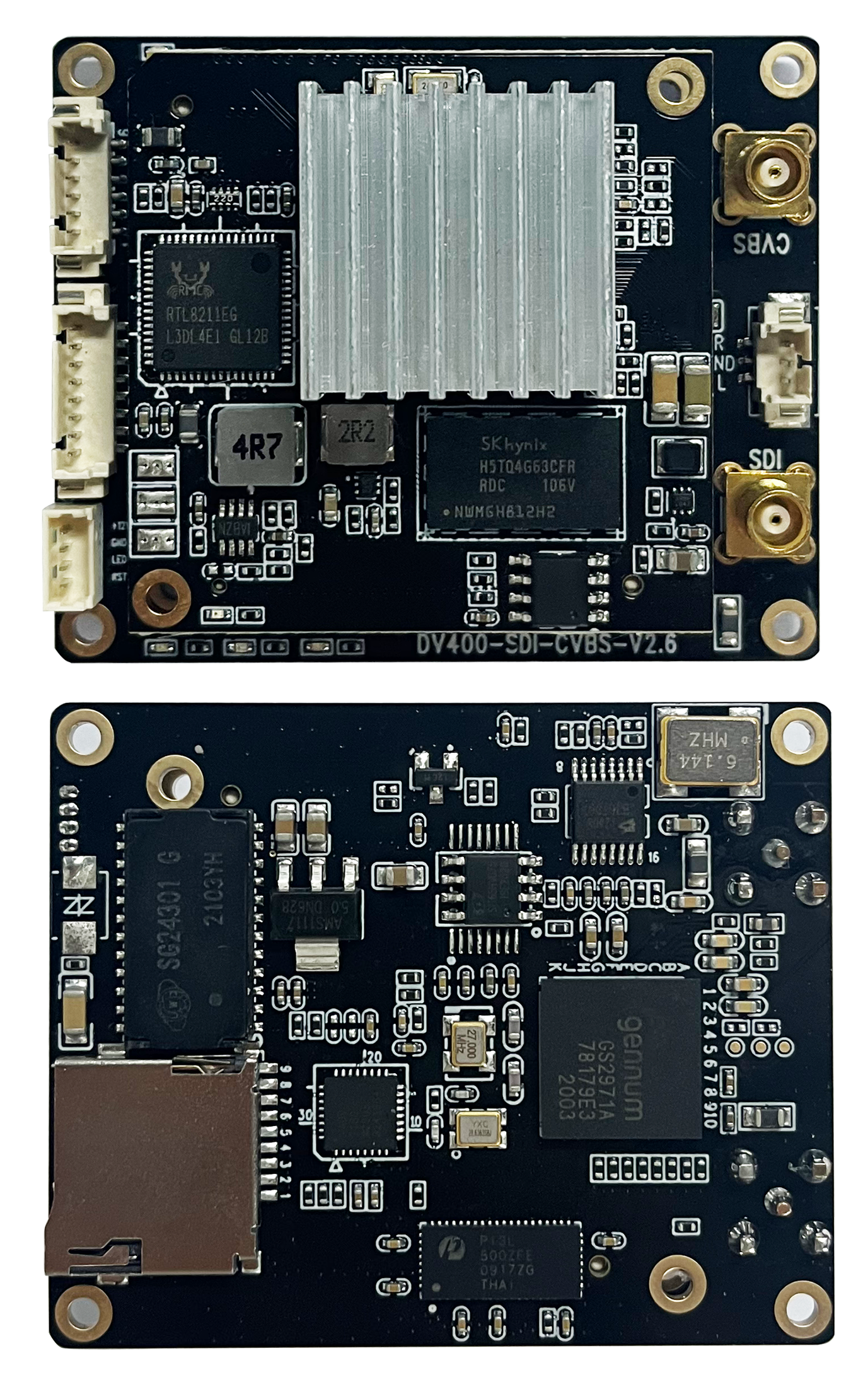

K7 H.265/H.264 SDI CVBS Encoder
K7 H.265/H.264 SDI CVBS Encoder

K7 H.265/H.264 SDI CVBS Encoder

1-channel SD/HD/3G(LEVEL A and LEVEL B) SDI input, 1-channel CVBS, Audio input. Dual streams output.H.265/H.264 format, Audio: MP3, AAC, G.711 format. Configuration could be freely adjusted according to the need. Support HTTP / RTSP / RTP/ TCP /

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES

K7 SDI CVBS is micro encoder, which is widely used in special industries, such as army, tanks, drones, soldier helmets, underwater detection, thermal camera,Education, medical industry etc.

It has abundant interfaces to expand.

Support customization.



1-channel SD/HD/3G(LEVEL A and LEVEL B) SDI input, 1-channel CVBS, Audio input.

Dual streams output.H.265/H.264 format, Audio: MP3, AAC, G.711 format.

Configuration could be freely adjusted according to the need.

Support HTTP / RTSP / RTP/ TCP / RTMP / RTMPS / UDP / ONVIF / SRT/ HLS protocols.

Red indicator: power. Yellow: Network Green: Streaming status.



◆Smaller size:55*45*9mm,0.1KG

◆Support TF card recording (maximum 256GB)

◆More applications:Drone,Military exercise etc

◆Definition 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i etc

◆SDI input, H.265 HEVC architecture, supports WINDOWS& LINUX etc

◆Supports SDK.

◆supports RTSP, RTMP, RTMPS,HTTP, UDP,ONVIF,HLS,SRT Unicast、multicast etc

◆Support Main TS stream and the sub TS stream (H.264/H.265) use in different network protocols for transmission

◆Encoding level: 1, 2, 3, 4 and 5 (the higher the level ,the larger of the code flow fluctuation ratio )

◆Coding Standards BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE, H.265:audio MP3, AAC, sampling rate: 32000,44100, etc., encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256

◆BITRATE: CBR/VBR 16KBIT/S~20MBIT/S

◆Video packaging: A mode: FFMPEG, B mode: VLC

◆Transmission: TCP, UDP, 100M (RJ45 Duplex network port)

◆Supports WEB access, passwords changing, WAN remote management (WEB)

◆Supports OSD rolling in English, images superimposing, support adding LOGO ,Characters and symbols; Adjustable coordinates: 1920x1080; The font size resolution: 8 to 72.

◆Supports DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance

◆Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering

◆Supports build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individually

◆Supports coding without video signal, supports independent audio push flow

◆Complete the setting effect immediately, don’t need to restart

◆Supports one-key recovery of the default configuration

◆The low power consumption design

Model

                     K7 H.265/H.264 SDI CVBS Encoder With Recording

Input

1 Channel SD/HD/3G SDI input, 1 Channel CVBS

Output

1 channel IP signal output

TF card

Micro SD

Maximum 256G

Video

Input resolution

Up to 1920x1080p, standard SDI /CVBS resolution

Coding standard

H.265 / H.264

Coding level

H.265 main profile

   H.264 BASELINE PROFILE

H.264 MAIN PROFILE

H.264 HIGH PROFILE



Encoded size

640*360~1920*1080 60fps

Video bit rate

CBR/VBR 16KBIT/S~20MBIT/S

Video frame rate

5- 60 fps

OSD

Text,Image

Audio

Input selection

1 channel embedded audio SDI, 1 channel CVBS

Audio coding

AAC/MP3/G.711

Audio bit rate

64Kb/s~384Kb/s

Sampling rate

32000、44100、48000 etc

IP

Output

1RJ 100M adaptive Ethernet port,dual-stream(H.265/264 TS stream)

System

Protocols

HTTP、RTSP、RTMP、RTMPS、SRT、ONVIF、HLS、UDP multicast,unicast

Configuration management

User interface, multi-one management platform



Power supply

12V~2A

power consumption

 About 4W

Size

55mm x 45mm*9mm

Operating temperature

-20℃+ 60℃

Working humidity

<90%, Non-condensing

Weight

0.1KG

Our company reserves the right to adjust the product parameters, if you have any questions please contact us to check
