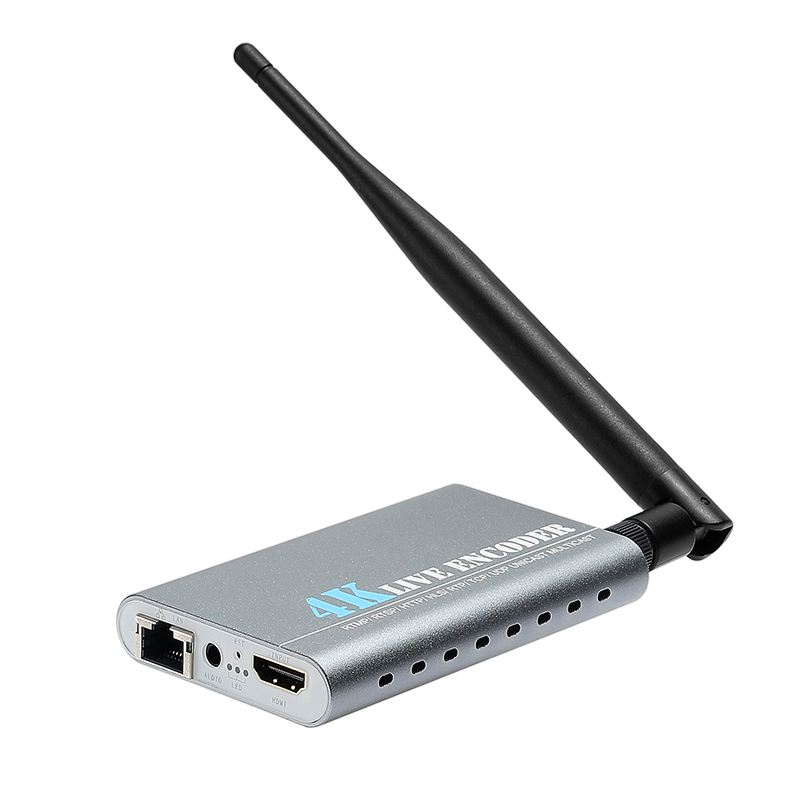

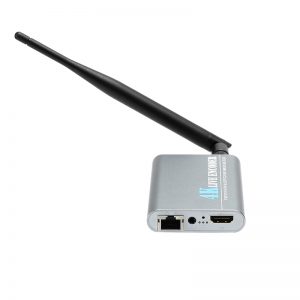

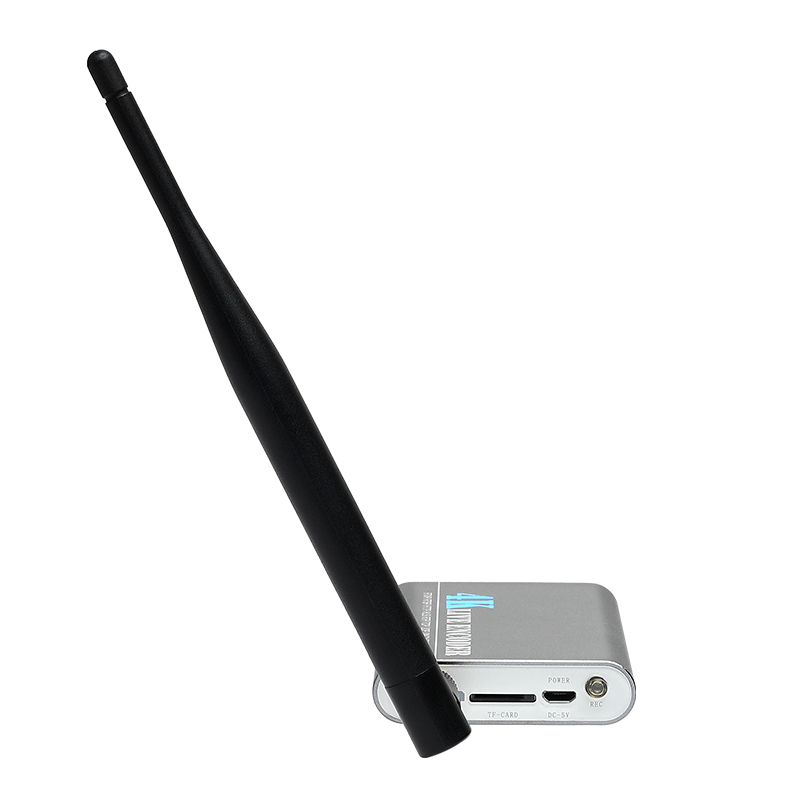

K1-W HEVC 4K HDMI+WIFI h 264 encoder hd encoders
K1-W HEVC 4K HDMI+WIFI h 264 encoder hd encoders
K1-W HEVC 4K HDMI+WIFI h 264 encoder hd encoders
K1-W HEVC 4K HDMI+WIFI h 264 encoder hd encoders

K1-W HEVC 4K HDMI+WIFI h 264 encoder hd encoders

Want create site? Find Free WordPress Themes and plugins.     1-channel up to 4K-3840*2160 HDMI input, 1channel LINE-IN audio. 1-Channel IP output,WIFI Outout ,Support record to SD card. “REC Button” :support One-pres

Protocol : HTTP, RTSP, RTP, TCP, RTMP, HLS, UDP multicast, unicast

Coding standard : H.265/H.264

Encoded size : Up to 3840*2160 30, 720P 120FPS

Video bit rate : 5-60 fps

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES





1-channel up to 4K-3840*2160 HDMI input, 1channel LINE-IN audio.
1-Channel IP output,WIFI Outout ,Support record to SD card. “REC Button” :support One-press-record
Dual streams output. H.265/ H.264 format, Audio: MP3, AAC, G711 format.
Configuration could be freely adjusted according to the need.
Support HTTP / RTSP / RTP/ TCP / RTMP / UDP / ONVIF / HLS protocols.
Red indicator: power. Yellow: Streaming status. Green: Network



Key features

1. Resolution:3840*2160/2560*1440/2048*1152/1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i (customized)

2. Supports WINDOWS ,LINUX and MAC OS
3. Support RTSP/ RTP/ RTMP/ HTTP/ ONVIF/ HLS/ FLV/UDP/ unicast/ multicast protocol
4. Support Main TS stream and the sub TS stream use in different protocol.
5. Encoding level: 1, 2, 3, 4 and 5 (the higher the level, the larger of the code flow fluctuation ratio )
6. Coding Standard: Base line profile/ main profile/high profile, H.265 main profile:
7. Audio: MP3, AAC, G.711, sampling rate: 32000,44100, 48000 etc, encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K
8. Video bitrate Control: CBR / VBR 16KBIT / S ~ 50MBIT / S
9. Video packaging: A mode: FFMPEG, B mode: VLC
10. Transmission: TCP, UDP, 100M for configuration. 1000M for transmission (RJ45 Duplex network port)
11. Chinese/ English WEB, change passwords of the encoder, remotely configure (WEB)
12. Support Text/ image OSD, images superimposing.
Adjustable coordinates: 1920×1080; the font size: 8 to 72.
13. Supports automatically obtain IP (DHCP), support One-key recovery, upgrade and remote maintenance.
14. Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
15. Support build-in or external audio input, support left and right sound channel, Support audio gain, turn volume individually.
16. Support encoding without video signal;
17. Take effect immediately when applied the settings, don’t need to restart.
18. Support one-key recovery to default setting.
19. Low power consumption design.

Specification

Product model K1-W HDMI+WIFI 4K Encoder With Record
Input 1Channel HDMI input, 1 Channel audio input
Output 1 channel IP signal output,WIFI ouput
SD card Maximum 256G
Video Input resolution Up to 4K-3840*2160, standard HDMI resolution
Coding standard H.265/ H.264
Coding level H.265 MAIN PROFILE
H.264 BASELINE PROFILE
H.264 MAIN PROFILE
H.264 HIGH PROFILE
Encoded size 640*360~3840*2160(Can customize)
Video bit rate Rate control: CBR/VBR 16KBIT/S~50 MBIT/S
Video frame rate 4K 30fps,1080P 60fps
OSD Text, Image
Audio Input selection 1 channel embedded audio hdmi, 1 channel 3.5MM independent audio, support audio gain
Audio coding AAC/ MP3/ G.711
Audio bit rate 64Kb/s~384Kb/s
Sampling rate 32000、44100,48000 etc
IP output 1 RJ 100M / 1000M adaptive Ethernet port, dual-bitrate( H.265/264 TS stream)
System Network protocol HTTP, RTSP, RTMP, ONVIF, HLS, UDP multicast, unicast
Configuration management User interface, remote upgrade, Andriod APP, multi-one management platform
  Power supply 5V~2A
power consumption 5W
Size 103mm * 60mm * 15mm(L*W*H)
Operating temperature -20℃+ 60℃
Working humidity <90%,Non-condensing
Weight 0.1KG
Haiwei reserves the right to adjust the product parameters, if you have any questions please contact us to check
