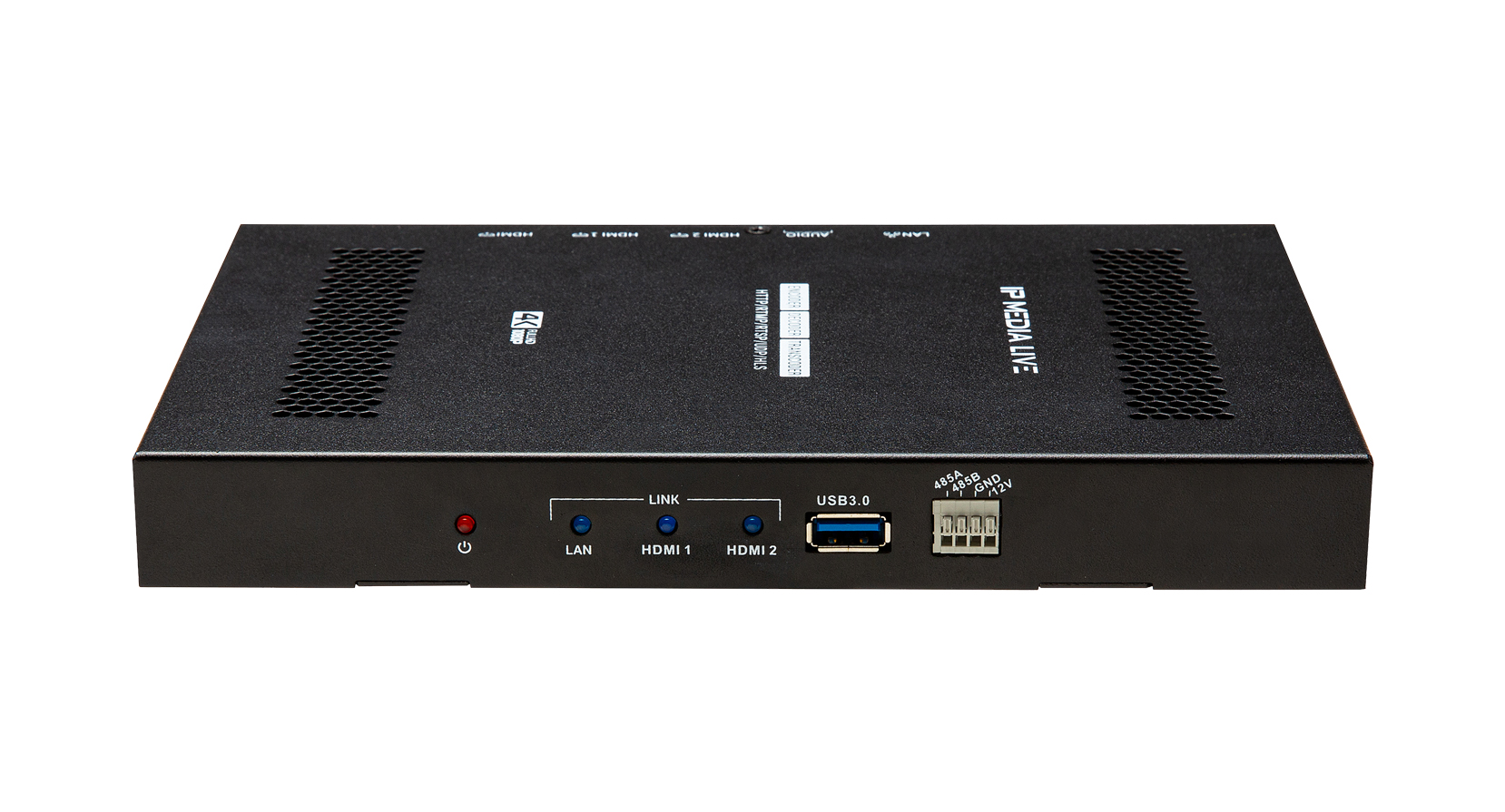

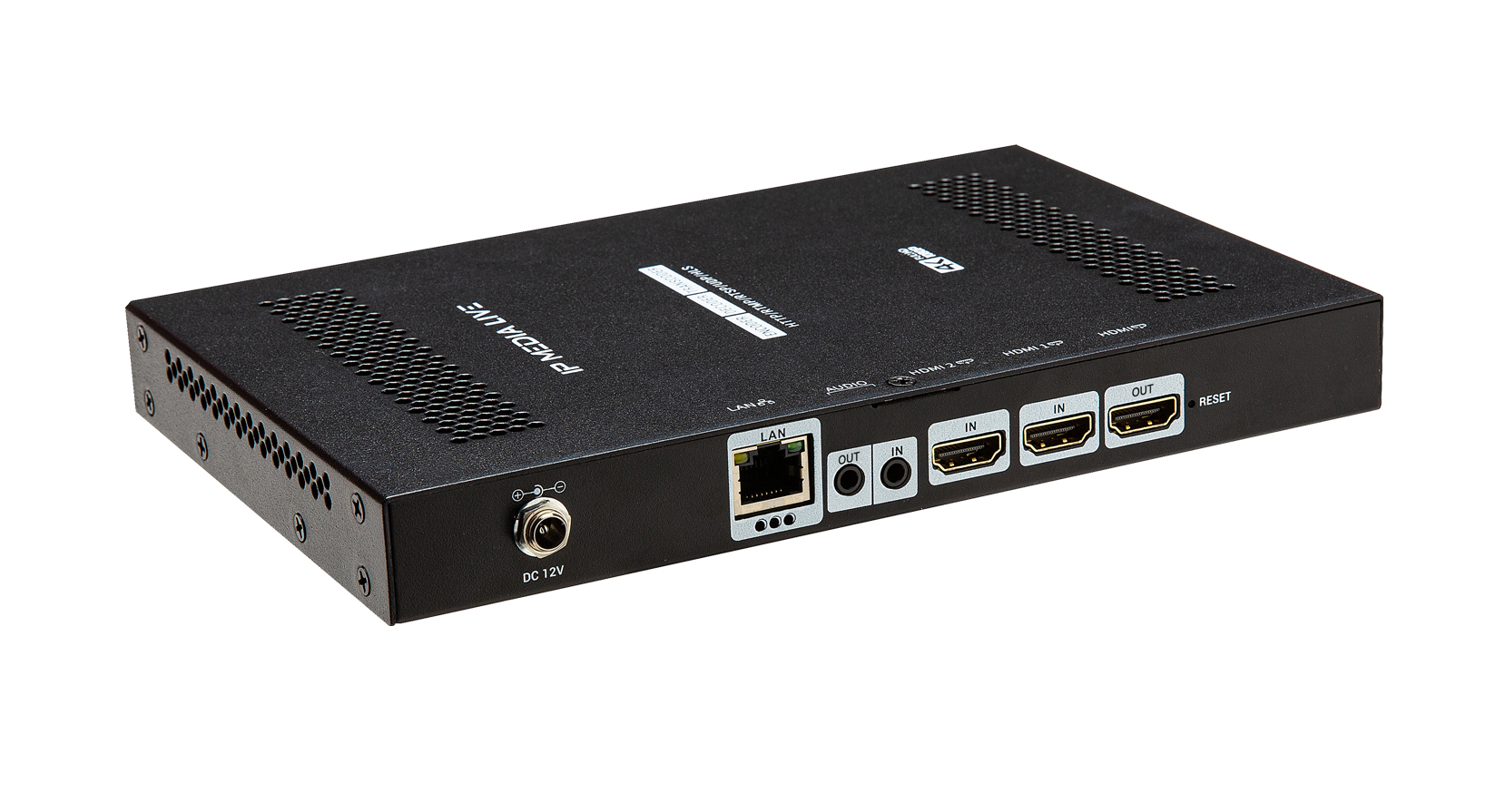

H2 2channels HDMI 4K Encoder Decoder Transcoder Mixer
H2 2channels HDMI 4K Encoder Decoder Transcoder Mixer
H2 2channels HDMI 4K Encoder Decoder Transcoder Mixer
H2 2channels HDMI 4K Encoder Decoder Transcoder Mixer

H2 2channels HDMI 4K Encoder Decoder Transcoder Mixer

Want create site? Find Free WordPress Themes and plugins.   Product Description H2: 2 Channel up to 4K-3840*2160 30fps HDMI input/output, 1channel LINE-IN audio. 1 Channel  IP/HDMI output 1 Channel audio in/out 1 channel

Protocol : RTSP/ RTMP/ UDP/ HTTP/ SDK/ HLS/ P-PHTTP/ HLS/ RTSP over UDP TCP/ RTMP/

Coding standard : H.265

Encoded size : Up to 3840*2160 30FPS

Video bit rate : 5-60 fps

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES



Product Description

H2:

2 Channel up to 4K-3840*2160 30fps HDMI input/output, 1channel LINE-IN audio.

1 Channel  IP/HDMI output

1 Channel audio in/out

1 channel USB3.0 recoding. (The file encoding&decoding can be customized)

Dual streams output. H.265/ H.264 format, Audio: MP3, AAC, G711 format.

Configuration could be freely adjusted according to the need.

Support SRT/HTTP / RTSP / RTP/ TCP / RTMP / RTMPS/ UDP / ONVIF / HLS/P2P protocols.

Red indicator: power. Yellow: Streaming status. Green: Network



Key features

  1. Resolution:3840*2160/2560*1600/2560*1440/2048*1152/1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i(customizable)
  2. Supports WINDOWS ,LINUXand MAC OS
  3. Support SRT/ RTSP/ RTP/ RTMP/RTMPS/ HTTP/ ONVIF/ HLS/ UDP unicast and multicast /P2P protocol
  4. Support Main TS stream and the sub TS stream usein different protocol.
  5. Encoding level: 1, 2, 3, 4 and 5 (the higher the level, the larger of the code flow fluctuation ratio )
  6. Coding Standard: Base line profile/ main profile/high profile, H.265 main profile:
  7. Audio: MP3, AAC, G.711, sampling rate: 32000,44100, etc, encoded audio bit rate: 24K,32K,48K, 64K, 96K, 128K, 160K, 192K, 256K
  8. Video bitrate Control: CBR / VBR 16KBIT / S ~ 50MBIT / S
  9. Video bitrate Control : CBR / VBR  16
  10. Video packaging: A mode: FFMPEG, B mode: VLC
  11. Video packaging:A mode:FFMPEG , B mode: VLC
  12. Transmission: TCP, UDP, 100M for configuration. 1000M for transmission (RJ45 Duplex network port)
  13. Chinese/ English WEB, change passwords of the encoder, remotely configure (WEB)
  14. Chinese / English  WEB,change passwords of the encoder,remotely configure (WEB)
  15. Support Text/ image OSD, images superimposing.
  16. Support Text / image OSD , images superimposing

Adjustable coordinates: 1920×1080; the font size: 8 to 72.

  1. Supports automatically obtain IP (DHCP), support One-key recovery, upgrade and remote maintenance.
  2. Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
  3. Support build-in or external audio input, support left and right sound channel,Support audio gain, turn volume individually.
  4. Support encoding without video signal;
  5. Take effect immediately when applied the settings, don’t need to restart.
  6. Support one-key recovery to default setting.
  7. Low power consumption design.
  8. Low power consumption design.
  9. Supports automatically obtain  IP(DHCP)
